Приветствую форумчан!
Есть сервер NEC с чипсетом Intel C602.
Захотелось открыть некоторые разделы BIOS. Выставил в AMIBCP в нужные пункты значение BIOS, прошил программатором.
Плата около двух минут остается включенной, а потом перезагружается. Экран ничего не показывает.

Что делать? Пункты настроек очень нужны. В каком направлении искать?

Плата жива. Старый биос прошивается обратно, плата работает.
  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0
DeathBringer писал(а):
Все дело в BIOS - в нем не доделана поддержка 45-nm CPU. Исправлю, когда будет время.

Доброго дня!
К Intel D945GCL реально поддержку 45нм прикрутить? С E7400 запускается с множителем 6, при помощи ThrottleStop его можно до номинала поднять. Биос 34 у меня зашит, это последний, как я понимаю.
BIOS
Или дамп, слитый программатором, нужен?
  DeathBringer

Куратор темы
Статус: Не в сети
Регистрация: 07.08.2003
radical писал(а):
К Intel D945GCL реально поддержку 45нм прикрутить?
Шанс на успех призрачный, проще материнку поменять. Оригинальная прошивка от Intel не поможет - для первичного анализа нужен настоящий дамп.
  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0
Дамп нужно снимать с conroe или wolfdale или без разницы?

нашел на ромбае биос
BIOS CL94510J.86A.0034 для Intel S775 D945GCL flash SST25LF040A, рабочий.
http://www.rom.by/files/D945GCL_0.zip

Если что, могу и со своей платы слить программатором.


Последний раз редактировалось radical 07.06.2021 20:11, всего редактировалось 1 раз.

  DeathBringer

Куратор темы
Статус: Не в сети
Регистрация: 07.08.2003
radical
Без разницы. С Wolfdale пригодится текстовый отчет CPU-Z без каких-либо манипуляций при помощи ThrottleStop.
  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0
DeathBringer писал(а):
текстовый отчет CPU-Z


CPU-Z TXT Report
-------------------------------------------------------------------------

Binaries
-------------------------------------------------------------------------

CPU-Z version 1.92.2.x64

Processors
-------------------------------------------------------------------------

Number of sockets 1
Number of threads 2

APICs
-------------------------------------------------------------------------

Socket 0
-- Core 0 (ID 0)
-- Thread 0 0
-- Core 1 (ID 1)
-- Thread 1 1

Timers
-------------------------------------------------------------------------

ACPI timer 3.580 MHz
Perf timer 2794.000 MHz
Sys timer 1.000 KHz


Processors Information
-------------------------------------------------------------------------

Socket 1 ID = 0
Number of cores 2 (max 2)
Number of threads 2 (max 2)
Manufacturer GenuineIntel
Name Intel Core 2 Duo E7400
Codename Wolfdale
Specification Intel(R) Core(TM)2 CPU E7400 @ 2.80GHz
Package (platform ID) Socket 775 LGA (0x0)
CPUID 6.7.A
Extended CPUID 6.17
Core Stepping R0
Technology 45 nm
TDP Limit 65.0 Watts
Core Speed 1596.6 MHz
Multiplier x Bus Speed 6.0 x 266.1 MHz
Base frequency (cores) 266.1 MHz
Base frequency (ext.) 266.1 MHz
Rated Bus speed 1064.4 MHz
Stock frequency 2800 MHz
Instructions sets MMX, SSE, SSE2, SSE3, SSSE3, EM64T
Microcode Revision 0x0
L1 Data cache 2 x 32 KBytes, 8-way set associative, 64-byte line size
L1 Instruction cache 2 x 32 KBytes, 8-way set associative, 64-byte line size
L2 cache 3072 KBytes, 12-way set associative, 64-byte line size
Max CPUID level 0000000Dh
Max CPUID ext. level 80000008h
Cache descriptor Level 1, D, 32 KB, 1 thread(s)
Cache descriptor Level 1, I, 32 KB, 1 thread(s)
Cache descriptor Level 2, U, 3 MB, 2 thread(s)
FID/VID Control no


Temperature 0 37 degC (98 degF) (Core #0)
Temperature 1 32 degC (89 degF) (Core #1)
Clock Speed 0 n.a. (Core #0)
Clock Speed 1 n.a. (Core #1)


Thread dumps
-------------------------------------------------------------------------

CPU Thread 0
APIC ID 0
Topology Processor ID 0, Core ID 0, Thread ID 0

CPUID
0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69
0x00000001 0x0001067A 0x00020800 0x00000309 0xBFEBFBFF
0x00000002 0x05B0B101 0x005657F0 0x00000000 0x2CB43048
0x00000003 0x00000000 0x00000000 0x00000000 0x00000000
0x00000004 0x04000121 0x01C0003F 0x0000003F 0x00000001
0x00000004 0x04000122 0x01C0003F 0x0000003F 0x00000001
0x00000004 0x04004143 0x02C0003F 0x00000FFF 0x00000001
0x00000005 0x00000040 0x00000040 0x00000003 0x00022220
0x00000006 0x00000001 0x00000002 0x00000003 0x00000000
0x00000007 0x00000000 0x00000000 0x00000000 0x00000000
0x00000008 0x00000400 0x00000000 0x00000000 0x00000000
0x00000009 0x00000000 0x00000000 0x00000000 0x00000000
0x0000000A 0x07280202 0x00000000 0x00000000 0x00000503
0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000
0x0000000D 0x00000003 0x00000240 0x00000240 0x00000000
0x0000000D 0x00000000 0x00000000 0x00000000 0x00000000
0x80000000 0x80000008 0x00000000 0x00000000 0x00000000
0x80000001 0x00000000 0x00000000 0x00000001 0x20000800
0x80000002 0x65746E49 0x2952286C 0x726F4320 0x4D542865
0x80000003 0x43203229 0x20205550 0x20202020 0x45202020
0x80000004 0x30303437 0x20402020 0x30382E32 0x007A4847
0x80000005 0x00000000 0x00000000 0x00000000 0x00000000
0x80000006 0x00000000 0x00000000 0x0C006040 0x00000000
0x80000007 0x00000000 0x00000000 0x00000000 0x00000000
0x80000008 0x00003024 0x00000000 0x00000000 0x00000000

MSR 0x0000001B 0x00000000 0xFEE00900
MSR 0x00000017 0x04000000 0xA984CA23
MSR 0x0000003F 0x00000000 0x00000000
MSR 0x000000CE 0x00164A23 0x46460713
MSR 0x000001A0 0x00000044 0x62862489
MSR 0x000000EE 0x00000000 0x86790300
MSR 0x0000011E 0x00000000 0xBE702119
MSR 0x000000CD 0x00000000 0x80000800
MSR 0x0000019C 0x00000000 0x883F0000

CPU Thread 1
APIC ID 1
Topology Processor ID 0, Core ID 1, Thread ID 0

CPUID
0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69
0x00000001 0x0001067A 0x01020800 0x00000309 0xBFEBFBFF
0x00000002 0x05B0B101 0x005657F0 0x00000000 0x2CB43048
0x00000003 0x00000000 0x00000000 0x00000000 0x00000000
0x00000004 0x04000121 0x01C0003F 0x0000003F 0x00000001
0x00000004 0x04000122 0x01C0003F 0x0000003F 0x00000001
0x00000004 0x04004143 0x02C0003F 0x00000FFF 0x00000001
0x00000005 0x00000040 0x00000040 0x00000003 0x00022220
0x00000006 0x00000001 0x00000002 0x00000003 0x00000000
0x00000007 0x00000000 0x00000000 0x00000000 0x00000000
0x00000008 0x00000400 0x00000000 0x00000000 0x00000000
0x00000009 0x00000000 0x00000000 0x00000000 0x00000000
0x0000000A 0x07280202 0x00000000 0x00000000 0x00000503
0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000
0x0000000D 0x00000003 0x00000240 0x00000240 0x00000000
0x0000000D 0x00000000 0x00000000 0x00000000 0x00000000
0x80000000 0x80000008 0x00000000 0x00000000 0x00000000
0x80000001 0x00000000 0x00000000 0x00000001 0x20000800
0x80000002 0x65746E49 0x2952286C 0x726F4320 0x4D542865
0x80000003 0x43203229 0x20205550 0x20202020 0x45202020
0x80000004 0x30303437 0x20402020 0x30382E32 0x007A4847
0x80000005 0x00000000 0x00000000 0x00000000 0x00000000
0x80000006 0x00000000 0x00000000 0x0C006040 0x00000000
0x80000007 0x00000000 0x00000000 0x00000000 0x00000000
0x80000008 0x00003024 0x00000000 0x00000000 0x00000000

MSR 0x0000001B 0x00000000 0xFEE00800
MSR 0x00000017 0x04000000 0xA984CA23
MSR 0x0000003F 0x00000000 0x00000000
MSR 0x000000CE 0x00164A23 0x46460713
MSR 0x000001A0 0x00000044 0x62862489
MSR 0x000000EE 0x00000000 0x86790300
MSR 0x0000011E 0x00000000 0xBE702119
MSR 0x000000CD 0x00000000 0x80000800
MSR 0x0000019C 0x00000000 0x88440000



BIOS
-------------------------------------------------------------------------

UEFI Yes
BIOS Vendor Intel
BIOS Date 09/05/07

Chipset
-------------------------------------------------------------------------

Northbridge Intel i945P/PL/G/GZ rev. A2
Southbridge Intel 82801GB (ICH7/R) rev. A1
Memory Type DDR2
Memory Size 4 GBytes
Channels Dual
Memory Frequency 332.6 MHz (4:5)
CAS# latency (CL) 5.0
RAS# to CAS# delay (tRCD) 5
RAS# Precharge (tRP) 5
Cycle Time (tRAS) 15
Bank Cycle Time (tRC) 21
Host Bridge 0x2770


Memory SPD
-------------------------------------------------------------------------

DIMM # 1
SMBus address 0x50
Memory type DDR2
Module format Regular UDIMM
Module Manufacturer(ID) Ramaxel Technology (7F7F7F7F43000000000000)
Size 2048 MBytes
Max bandwidth PC2-6400 (400 MHz)
Part number RML1320HC48D8F-800
Number of banks 8
Data width 64 bits
Correction None
Nominal Voltage 1.80 Volts
EPP no
XMP no
AMP no
JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency
JEDEC #1 4.0-4-4-12-16 @ 266 MHz
JEDEC #2 5.0-5-5-15-20 @ 333 MHz
JEDEC #3 6.0-6-6-18-24 @ 400 MHz

DIMM # 2
SMBus address 0x52
Memory type DDR2
Module format Regular UDIMM
Module Manufacturer(ID) Ramaxel Technology (7F7F7F7F43000000000000)
Size 2048 MBytes
Max bandwidth PC2-6400 (400 MHz)
Part number RML1320HC48D8F-800
Number of banks 8
Data width 64 bits
Correction None
Nominal Voltage 1.80 Volts
EPP no
XMP no
AMP no
JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency
JEDEC #1 4.0-4-4-12-16 @ 266 MHz
JEDEC #2 5.0-5-5-15-20 @ 333 MHz
JEDEC #3 6.0-6-6-18-24 @ 400 MHz

DIMM # 1
SPD registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 80 08 08 0E 0A 81 40 00 05 25 40 00 82 08 00 00
10 0C 08 70 00 02 00 03 30 45 3D 50 3C 1E 3C 2D 01
20 17 25 05 12 3C 1E 1E 00 06 3C 7F 80 14 1E 00 00
30 00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 FC
40 7F 7F 7F 7F 43 00 00 00 01 52 4D 4C 31 33 32 30
50 48 43 34 38 44 38 46 2D 38 30 30 41 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DIMM # 2
SPD registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 80 08 08 0E 0A 81 40 00 05 25 40 00 82 08 00 00
10 0C 08 70 00 02 00 03 30 45 3D 50 3C 1E 3C 2D 01
20 17 25 05 12 3C 1E 1E 00 06 3C 7F 80 14 1E 00 00
30 00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 FC
40 7F 7F 7F 7F 43 00 00 00 01 52 4D 4C 31 33 32 30
50 48 43 34 38 44 38 46 2D 38 30 30 41 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00


Monitoring
-------------------------------------------------------------------------

Mainboard Model D945GCL (0x000001BC - 0x004F66AC)

LPCIO
-------------------------------------------------------------------------

LPCIO Vendor ITE
LPCIO Vendor ID 0x90
LPCIO Chip ID 0x7401
LPCIO Revision ID 0x9
Config Mode I/O address 0x2E
Config Mode LDN 0x4
Config Mode registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 00 00 00 00 00 00 00 04 00 00 00 00 00 00 00 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 74 01 09 00 44 00 2E 00 0D 00 00 00 00 00 00 00
30 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 06 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Register space LPC, base address = 0x06C0


Hardware Monitors
-------------------------------------------------------------------------

Hardware monitor Hardware monitor ID=0x610069
Register space SMBus, base address = 0x02000
SMBus request channel 0x0, address 0x2E

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 00 00 F8 0C F6 F6 F6 F6 C6 00 00 00 00 00 B4 00
10 8D BB 7F 21 5E 1F 74 00 81 74 00 80 00 00 00 00
20 74 5C C1 C1 C0 1E 1A 1B CF 07 FF FF FF FF FF FF
30 FF 4C 4C 00 00 00 00 00 FF FF FF 00 00 00 61 69
40 05 80 38 10 00 FF 00 FF 00 FF 00 FF 00 FF 80 7F
50 81 7F 81 7F FF FF FF FF FF FF FF FF 62 22 22 7A
60 8A 80 E8 88 C0 4C 4C 5A 2D 2D 67 41 41 24 40 00
70 00 00 7B FE B8 00 C0 97 B5 97 5A 5E 01 00 91 00
80 00 1F 1E 1E 00 1E 00 1A 1A 1A 00 1A A0 1B 1B 1B
90 00 1B 61 4F 75 75 AF 7D 85 7F 85 93 DF 8D 9B 2F
A0 94 9F 1F 98 A2 BF 9B A6 9F A2 A8 7F AC A7 0F B4
B0 A4 BF BD 9F 5F C9 5F F0 74 59 00 7C 3F C0 90 1D
C0 30 B5 14 10 BD 00 60 C9 C2 60 73 B1 A0 8E B0 90
D0 99 B1 50 A1 B6 F0 B3 B4 40 CB 07 A1 72 FD D0 8D
E0 FE 90 99 01 F1 9F 0D 41 B7 0E C1 C7 F1 E0 75 E6
F0 60 96 E4 C0 A1 E3 30 AD E4 80 BB E2 70 CC 12 00


PCI Devices
-------------------------------------------------------------------------

Register space PCI Express, base address = 0x0F0000000

Description Host Bridge
Location bus 0 (0x00), device 0 (0x00), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x2770
Revision ID 0x02
PI 0x00
SubClass 0x00
BaseClass 0x06
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x00
Int. Pin 0x00
PCI capability
Caps class Vendor Dependant
Caps offset 0xE0
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 70 27 06 00 90 20 02 00 00 06 00 00 00 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 00 00 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00
40 01 90 D1 FE 01 40 D1 FE 03 00 00 F0 01 80 D1 FE
50 00 00 30 00 09 00 00 00 00 00 00 00 00 00 00 00
60 01 30 D1 FE 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 10 11 11 11 11 33 33 00 FF 03 00 00 D0 1A 39 00
A0 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 91 00 00 00
E0 09 00 09 51 02 E1 9B 88 06 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00

Description VGA Controller
Location bus 0 (0x00), device 2 (0x02), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x2772
Revision ID 0x02
PI 0x00
SubClass 0x00
BaseClass 0x03
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 0 (memory) 0xE0100000
Address 1 (port) 0x000020E0
Address 2 (memory) 0xD0000000
Address 3 (memory) 0xE0180000
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x0B
Int. Pin 0x01
PCI capability
Caps class Message Signalled Interrupts
Caps offset 0x90
PCI capability
Caps class Power Management
Caps offset 0xD0
Caps version 1.1
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 72 27 07 00 90 00 02 00 00 03 00 00 00 00
10 00 00 10 E0 E1 20 00 00 08 00 00 D0 00 00 18 E0
20 00 00 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 90 00 00 00 00 00 00 00 0B 01 00 00
40 00 00 00 00 E0 00 00 00 09 00 09 51 02 E1 9B 88
50 06 00 30 00 09 00 00 00 00 00 00 00 00 00 80 CF
60 00 00 02 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 05 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 01 00 22 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 34 05 64 34 00 00 00 00 86 0F 03 00 00 00 00 00

Description Multimedia device
Location bus 0 (0x00), device 27 (0x1B), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x27D8
Revision ID 0x01
PI 0x00
SubClass 0x03
BaseClass 0x04
Cache Line 0x10
Latency 0x00
Header 0x00
PCI header
Address 0 (memory) 0xE01C0000
Subvendor ID 0x8086
Subsystem ID 0x0204
Int. Line 0x16
Int. Pin 0x01
PCI capability
Caps class Power Management
Caps offset 0x50
Caps version 1.1
PCI capability
Caps class Message Signalled Interrupts
Caps offset 0x60
PCI capability
Caps class PCI Express
Caps offset 0x70
Device type Root Complex Integrated Endpoint Device
Port 0
Version 1.0
Link width 0x (max 0x)
Extended capabilities
Caps class Virtual Channel
Caps offset 0x100
Caps class Root Complex Link Declaration
Caps offset 0x130
Link Entries # 1
Port Number 15
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 D8 27 06 00 10 00 01 00 03 04 10 00 00 00
10 04 00 1C E0 00 00 00 00 00 00 00 00 00 00 00 00
20 00 00 00 00 00 00 00 00 00 00 00 00 86 80 04 02
30 00 00 00 00 50 00 00 00 00 00 00 00 16 01 00 00
40 01 00 00 03 00 00 00 00 00 00 00 00 00 00 00 00
50 01 60 42 C8 00 00 00 00 00 00 00 00 00 00 00 00
60 05 70 80 00 00 00 00 00 00 00 00 00 00 00 00 00
70 10 00 91 00 00 00 00 00 00 08 10 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00
100 02 00 01 13 01 00 00 00 00 00 00 00 00 00 00 00
110 00 00 00 00 01 00 00 80 00 00 00 00 00 00 00 00
120 80 00 00 81 00 00 00 00 00 00 00 00 00 00 00 00
130 05 00 01 00 00 01 00 0F 00 00 00 00 00 00 00 00

Description PCI to PCI Bridge
Location bus 0 (0x00), device 28 (0x1C), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x27D0
Revision ID 0x01
PI 0x00
SubClass 0x04
BaseClass 0x06
Cache Line 0x10
Latency 0x00
Header 0x81
PCI header
Primary bus 0x00
Secondary bus 0x01
Int. Line 0x11
Int. Pin 0x01
PCI capability
Caps class PCI Express
Caps offset 0x40
Device type Root Port of PCI-E Root Complex
Port 1
Version 1.0
Physical slot #0
Presence detect no
Link width 0x (max 1x)
PCI capability
Caps class Message Signalled Interrupts
Caps offset 0x80
PCI capability
Caps class Subsystem Vendor
Caps offset 0x90
SubVendor ID 0x0000
SubSystem ID 0x0000
PCI capability
Caps class Power Management
Caps offset 0xA0
Caps version 1.1
Extended capabilities
Caps class Virtual Channel
Caps offset 0x100
Caps class Root Complex Link Declaration
Caps offset 0x180
Link Entries # 1
Port Number 1
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 D0 27 07 00 10 00 01 00 04 06 10 00 81 00
10 00 00 00 00 00 00 00 00 00 01 01 00 F0 00 00 20
20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00
30 00 00 00 00 40 00 00 00 00 00 00 00 11 01 04 00
40 10 80 41 01 C0 0F 00 00 00 00 10 00 11 4C 11 01
50 00 00 01 10 60 05 08 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 0D A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 11 00 00 00 00 00
E0 00 00 C7 00 06 07 08 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00
100 02 00 01 18 01 00 00 00 01 00 00 00 00 00 00 00
110 01 00 00 00 01 00 00 80 00 00 00 00 01 00 00 00
120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Description PCI to PCI Bridge
Location bus 0 (0x00), device 28 (0x1C), function 2 (0x02)
Common header
Vendor ID 0x8086
Model ID 0x27D4
Revision ID 0x01
PI 0x00
SubClass 0x04
BaseClass 0x06
Cache Line 0x10
Latency 0x00
Header 0x81
PCI header
Primary bus 0x00
Secondary bus 0x02
Int. Line 0x12
Int. Pin 0x03
PCI capability
Caps class PCI Express
Caps offset 0x40
Device type Root Port of PCI-E Root Complex
Port 3
Version 1.0
Physical slot #0
Presence detect no
Link width 0x (max 1x)
PCI capability
Caps class Message Signalled Interrupts
Caps offset 0x80
PCI capability
Caps class Subsystem Vendor
Caps offset 0x90
SubVendor ID 0x0000
SubSystem ID 0x0000
PCI capability
Caps class Power Management
Caps offset 0xA0
Caps version 1.1
Extended capabilities
Caps class Virtual Channel
Caps offset 0x100
Caps class Root Complex Link Declaration
Caps offset 0x180
Link Entries # 1
Port Number 3
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 D4 27 07 00 10 00 01 00 04 06 10 00 81 00
10 00 00 00 00 00 00 00 00 00 02 02 00 F0 00 00 20
20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00
30 00 00 00 00 40 00 00 00 00 00 00 00 12 03 04 00
40 10 80 41 01 C0 0F 00 00 00 00 10 00 11 4C 11 03
50 00 00 01 10 60 05 18 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 0D A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 11 00 00 00 00 00
E0 00 00 C7 00 06 07 08 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00
100 02 00 01 18 01 00 00 00 01 00 00 00 00 00 00 00
110 01 00 00 00 01 00 00 80 00 00 00 00 01 00 00 00
120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Description PCI to PCI Bridge
Location bus 0 (0x00), device 28 (0x1C), function 3 (0x03)
Common header
Vendor ID 0x8086
Model ID 0x27D6
Revision ID 0x01
PI 0x00
SubClass 0x04
BaseClass 0x06
Cache Line 0x10
Latency 0x00
Header 0x81
PCI header
Primary bus 0x00
Secondary bus 0x03
Int. Line 0x13
Int. Pin 0x04
PCI capability
Caps class PCI Express
Caps offset 0x40
Device type Root Port of PCI-E Root Complex
Port 4
Version 1.0
Physical slot #0
Presence detect no
Link width 0x (max 1x)
PCI capability
Caps class Message Signalled Interrupts
Caps offset 0x80
PCI capability
Caps class Subsystem Vendor
Caps offset 0x90
SubVendor ID 0x0000
SubSystem ID 0x0000
PCI capability
Caps class Power Management
Caps offset 0xA0
Caps version 1.1
Extended capabilities
Caps class Virtual Channel
Caps offset 0x100
Caps class Root Complex Link Declaration
Caps offset 0x180
Link Entries # 1
Port Number 4
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 D6 27 07 00 10 00 01 00 04 06 10 00 81 00
10 00 00 00 00 00 00 00 00 00 03 03 00 F0 00 00 20
20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00
30 00 00 00 00 40 00 00 00 00 00 00 00 13 04 04 00
40 10 80 41 01 C0 0F 00 00 00 00 10 00 11 4C 11 04
50 00 00 01 10 60 05 20 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 0D A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 11 00 00 00 00 00
E0 00 00 C7 00 06 07 08 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00
100 02 00 01 18 01 00 00 00 01 00 00 00 00 00 00 00
110 01 00 00 00 01 00 00 80 00 00 00 00 01 00 00 00
120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Description USB Controller (UHCI)
Location bus 0 (0x00), device 29 (0x1D), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x27C8
Revision ID 0x01
PI 0x00
SubClass 0x03
BaseClass 0x0C
Cache Line 0x00
Latency 0x00
Header 0x80
PCI header
Address 4 (port) 0x00002080
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x17
Int. Pin 0x01
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 C8 27 05 00 80 02 01 00 03 0C 00 00 80 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 81 20 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 00 00 00 00 00 00 00 00 17 01 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 2F 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description USB Controller (UHCI)
Location bus 0 (0x00), device 29 (0x1D), function 1 (0x01)
Common header
Vendor ID 0x8086
Model ID 0x27C9
Revision ID 0x01
PI 0x00
SubClass 0x03
BaseClass 0x0C
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 4 (port) 0x00002060
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x13
Int. Pin 0x02
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 C9 27 05 00 80 02 01 00 03 0C 00 00 00 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 61 20 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 00 00 00 00 00 00 00 00 13 02 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 2F 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description USB Controller (UHCI)
Location bus 0 (0x00), device 29 (0x1D), function 2 (0x02)
Common header
Vendor ID 0x8086
Model ID 0x27CA
Revision ID 0x01
PI 0x00
SubClass 0x03
BaseClass 0x0C
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 4 (port) 0x00002040
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x12
Int. Pin 0x03
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 CA 27 05 00 80 02 01 00 03 0C 00 00 00 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 41 20 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 00 00 00 00 00 00 00 00 12 03 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 2F 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description USB Controller (UHCI)
Location bus 0 (0x00), device 29 (0x1D), function 3 (0x03)
Common header
Vendor ID 0x8086
Model ID 0x27CB
Revision ID 0x01
PI 0x00
SubClass 0x03
BaseClass 0x0C
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 4 (port) 0x00002020
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x10
Int. Pin 0x04
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 CB 27 05 00 80 02 01 00 03 0C 00 00 00 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 21 20 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 00 00 00 00 00 00 00 00 10 04 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 2F 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description USB 2.0 Controller (EHCI)
Location bus 0 (0x00), device 29 (0x1D), function 7 (0x07)
Common header
Vendor ID 0x8086
Model ID 0x27CC
Revision ID 0x01
PI 0x20
SubClass 0x03
BaseClass 0x0C
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 0 (memory) 0xE01C4000
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x17
Int. Pin 0x01
PCI capability
Caps class Power Management
Caps offset 0x50
Caps version 1.1
PCI capability
Caps class Debug Port
Caps offset 0x58
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 CC 27 06 00 90 02 01 20 03 0C 00 00 00 00
10 00 40 1C E0 00 00 00 00 00 00 00 00 00 00 00 00
20 00 00 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 50 00 00 00 00 00 00 00 17 01 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 01 58 C2 C9 00 00 00 00 0A 00 A0 20 00 00 00 00
60 20 20 00 00 00 00 00 00 01 00 00 00 00 00 00 C0
70 00 00 D5 3F 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 AA FF 00 FF 00 FF 00 20 00 00 88
E0 00 00 00 00 DB B6 6D 00 00 00 00 00 00 00 00 00
F0 00 80 00 09 88 85 40 00 86 0F 01 00 06 17 02 20

Description PCI to PCI Bridge
Location bus 0 (0x00), device 30 (0x1E), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x244E
Revision ID 0xE1
PI 0x01
SubClass 0x04
BaseClass 0x06
Cache Line 0x00
Latency 0x00
Header 0x01
PCI header
Primary bus 0x00
Secondary bus 0x04
Int. Line 0xFF
Int. Pin 0x00
PCI capability
Caps class Subsystem Vendor
Caps offset 0x50
SubVendor ID 0x8086
SubSystem ID 0x4C43
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 4E 24 07 00 10 00 E1 01 04 06 00 00 01 00
10 00 00 00 00 00 00 00 00 00 04 04 20 10 10 80 22
20 00 E0 00 E0 F1 FF 01 00 FF FF FF FF 00 00 00 00
30 00 00 00 00 50 00 00 00 00 00 00 00 FF 00 04 00
40 10 00 00 00 00 00 00 00 00 00 00 00 00 12 00 00
50 0D 00 00 00 86 80 43 4C 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description PCI to ISA Bridge
Location bus 0 (0x00), device 31 (0x1F), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x27B8
Revision ID 0x01
PI 0x00
SubClass 0x01
BaseClass 0x06
Cache Line 0x00
Latency 0x00
Header 0x80
PCI header
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x00
Int. Pin 0x00
PCI capability
Caps class Vendor Dependant
Caps offset 0xE0
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 B8 27 07 00 10 02 01 00 01 06 00 00 80 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 00 00 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00
40 01 04 00 00 80 00 00 00 01 05 00 00 10 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 8B 80 89 8B D0 00 00 00 8A 80 89 8A 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 10 00 0D 14 81 06 7C 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 02 04 00 31 00 00 00 13 00 00 00 00 03 00 00
B0 00 00 F0 00 00 00 00 00 00 00 00 08 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 33 22 11 00 67 45 00 00 C0 C0 00 00 02 00 00 00
E0 09 00 0C 10 A8 00 24 00 00 00 00 00 00 00 00 00
F0 01 C0 D1 FE 00 00 00 00 86 0F 01 00 00 00 00 00

Description IDE Controller
Location bus 0 (0x00), device 31 (0x1F), function 1 (0x01)
Common header
Vendor ID 0x8086
Model ID 0x27DF
Revision ID 0x01
PI 0x8A
SubClass 0x01
BaseClass 0x01
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 4 (port) 0x000020B0
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x09
Int. Pin 0x01
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 DF 27 05 00 88 02 01 8A 01 01 00 00 00 00
10 01 00 00 00 01 00 00 00 01 00 00 00 01 00 00 00
20 B1 20 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 00 00 00 00 00 00 00 00 09 01 00 00
40 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 03 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description IDE Controller
Location bus 0 (0x00), device 31 (0x1F), function 2 (0x02)
Common header
Vendor ID 0x8086
Model ID 0x27C0
Revision ID 0x01
PI 0x8F
SubClass 0x01
BaseClass 0x01
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 0 (port) 0x000020C8
Address 1 (port) 0x000020EC
Address 2 (port) 0x000020C0
Address 3 (port) 0x000020E8
Address 4 (port) 0x000020A0
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x13
Int. Pin 0x02
PCI capability
Caps class Power Management
Caps offset 0x70
Caps version 1.1
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 C0 27 05 00 B0 02 01 8F 01 01 00 00 00 00
10 C9 20 00 00 ED 20 00 00 C1 20 00 00 E9 20 00 00
20 A1 20 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 70 00 00 00 00 00 00 00 13 02 00 00
40 08 80 00 80 00 00 00 00 01 00 01 00 00 00 00 00
50 00 00 00 00 00 10 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 01 00 02 40 00 00 00 00 00 00 00 00 00 00 00 00
80 05 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 1F 00 80 01 00 40 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 05 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description SMBus Controller
Location bus 0 (0x00), device 31 (0x1F), function 3 (0x03)
Common header
Vendor ID 0x8086
Model ID 0x27DA
Revision ID 0x01
PI 0x00
SubClass 0x05
BaseClass 0x0C
Cache Line 0x00
Latency 0x00
Header 0x00
PCI header
Address 4 (port) 0x00002000
Subvendor ID 0x8086
Subsystem ID 0x4C43
Int. Line 0x0B
Int. Pin 0x02
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 DA 27 01 00 80 02 01 00 05 0C 00 00 00 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 01 20 00 00 00 00 00 00 00 00 00 00 86 80 43 4C
30 00 00 00 00 00 00 00 00 00 00 00 00 0B 02 00 00
40 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Description Ethernet Controller
Location bus 4 (0x04), device 8 (0x08), function 0 (0x00)
Common header
Vendor ID 0x8086
Model ID 0x1094
Revision ID 0x01
PI 0x00
SubClass 0x00
BaseClass 0x02
Cache Line 0x10
Latency 0x20
Header 0x00
PCI header
Address 0 (memory) 0xE0000000
Address 1 (port) 0x00001000
Subvendor ID 0x8086
Subsystem ID 0x0001
Int. Line 0x0A
Int. Pin 0x01
PCI capability
Caps class Power Management
Caps offset 0xDC
Caps version 1.1
PCI registers
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 86 80 94 10 17 00 90 02 01 00 00 02 10 20 00 00
10 00 00 00 E0 01 10 00 00 00 00 00 00 00 00 00 00
20 00 00 00 00 00 00 00 00 00 00 00 00 86 80 01 00
30 00 00 00 00 DC 00 00 00 00 00 00 00 0A 01 08 38
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D0 00 00 00 00 00 00 00 00 00 00 00 00 01 00 22 FE
E0 00 40 00 3A 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00


DMI
-------------------------------------------------------------------------

SMBIOS Version 2.4

DMI Processor
manufacturer Intel(R) Corporation
model Intel(R) Core(TM)2 CPU E7400 @ 2.80GHz
clock speed 400.0 MHz
FSB speed 100.0 MHz
multiplier 4.0x

DMI BIOS
vendor Intel Corp.
version CL94510J.86A.0034.2007.0905.1956
date 09/05/2007
ROM size 512 KB

DMI System Information
manufacturer KVAZAR-Micro
product Advantis 9Mc
version unknown
serial unknown
UUID {BCF1DDB5-8371-DB11-B306-00112FEB4149}
SKU unknown
family unknown

DMI Baseboard
vendor Intel Corporation
model D945GCL
revision AAD67193-205
serial BTCL645003VB

DMI System Enclosure
manufacturer unknown
chassis type 2X
chassis serial unknown

DMI Port Connector
designation PRIMARY (internal)
connector On Board IDE

DMI Port Connector
designation SECONDARY (internal)
connector On Board IDE

DMI Port Connector
designation ATX_PWR (internal)

DMI Extension Slot
designation PCIE X16 SLOT
type A5
populated no

DMI Extension Slot
designation PCIE X1 SLOT 1
type A5
populated no

DMI Extension Slot
designation PCI SLOT 1
type PCI
width 32 bits
populated no

DMI Extension Slot
designation PCI SLOT 2
type PCI
width 32 bits
populated no

DMI Physical Memory Array
location Motherboard
usage System Memory
correction None
max capacity 4 GB
max# of devices 2

DMI Memory Device
designation J6H1
format DIMM
type DDR2
total width 64 bits
data width 64 bits
size 2 GB

DMI Memory Device
designation J6J1
format DIMM
type DDR2
total width 64 bits
data width 64 bits
size 2 GB


Storage
-------------------------------------------------------------------------

Drive 0
Name M4-CT032M4SSD3
Revision 07MH
Serial 00000000130109246A78
Capacity 29.8 GB
Type Fixed, SSD
Bus Type ATA (3)
Features SMART, TRIM
Volume c:\, 29.8 GBytes (85.9 percent available)

USB Devices
-------------------------------------------------------------------------

USB Device USB Mass Storage Device, class=0x00, subclass=0x00, vendor=0x8564, product=0x1000

Graphics
-------------------------------------------------------------------------

Number of adapters 1

Graphic APIs
-------------------------------------------------------------------------

API Intel I/O

Display Adapters
-------------------------------------------------------------------------

Display adapter 0
ID 0x4000000
Board Manufacturer Intel Corporation
PCI device bus 0 (0x0), device 2 (0x2), function 0 (0x0)
Vendor ID 0x8086 (0x8086)
Model ID 0x2772 (0x4C43)
Revision ID 0x2
Performance Level 0

Win32_VideoController AdapterRAM = 0x7B0000 (8060928)
Win32_VideoController DriverVersion = 5.2.3790.1830
Win32_VideoController DriverDate = 03/24/2005


Software
-------------------------------------------------------------------------

Windows Version Microsoft Windows XP x64 Professional Service Pack 2 (Build 3790)
DirectX Version 9.0c


Register Spaces
-------------------------------------------------------------------------

Register space PCI
Register space PCI #2
Register space PCI Express, base address = 0x0F0000000
Register space SMBus, base address = 0x02000
Register space LPC, base address = 0x06C0
Register space LPC, base address = 0x02E
  DeathBringer

Куратор темы
Статус: Не в сети
Регистрация: 07.08.2003
radical
CPU-Z что-то не то пишет...

Скачайте RWEverything, лучше portable версию.
Запустите, зайдите в меню Access->Command выполните:
rdmsr 0x199
rdmsr 0x198
Сделайте скриншот результата.

Добавлено спустя 5 минут 3 секунды:

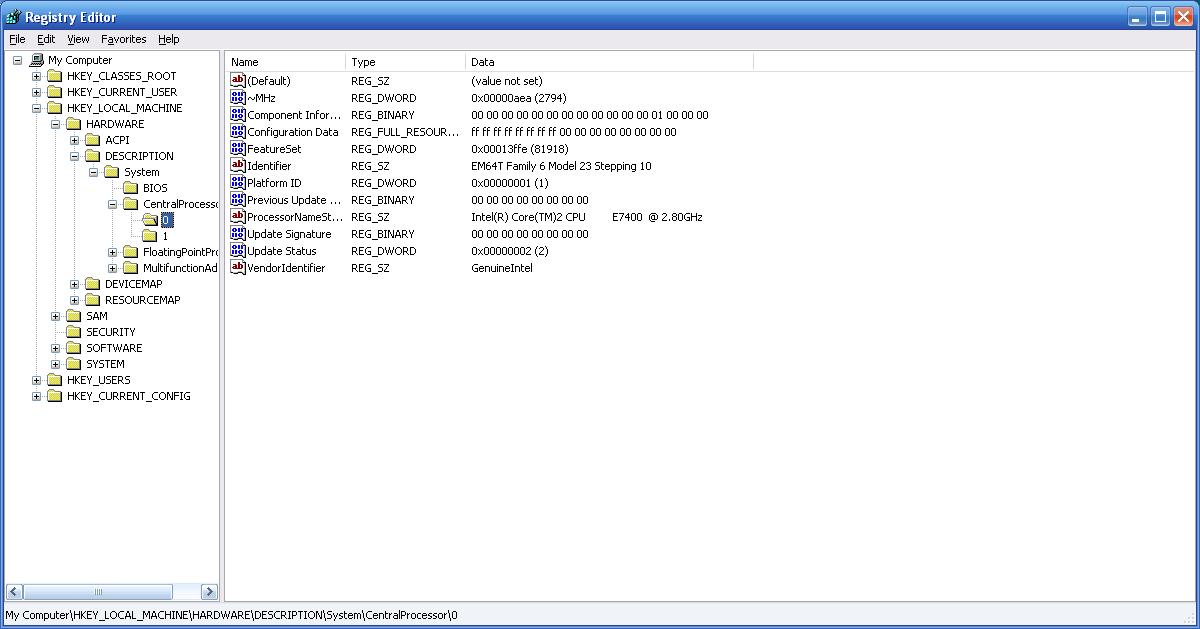

А также покажите скриншот regedit с раскрытым ключом реестра HKEY_LOCAL_MACHINE\HARDWARE\DESCRIPTION\System\CentralProcessor\0
  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0

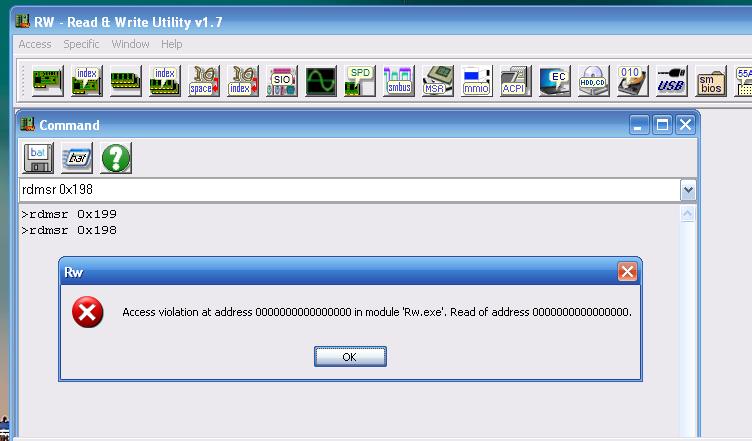

Выдает ошибку
Возможно, дело в системе XPx64, не установленной на этой машине, а просто оказавшейся на диске и оттуда успешно стартовавшей.
Вложение:
reg.JPG [ 81.3 КБ | Просмотров: 2441 ]

Вложение:
error.JPG [ 49.44 КБ | Просмотров: 2441 ]


  DeathBringer

Куратор темы
Статус: Не в сети
Регистрация: 07.08.2003
radical
Вы микрокод забыли интегрировать в BIOS - Всё, что связано с BIOS (обновления, настройка, проблемы и т.д.) #17128048
  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0
DeathBringer писал(а):
Вы микрокод забыли интегрировать в BIOS - Всё, что связано с BIOS (обновления, настройка, проблемы и т.д.) #17128048

Не интегрируется((
Виснет после вывода трех строчек на экран, пробовал с трех разных носителей - FDD, флешки и IODD
The system BIOS supports the microcode update API.
Searching database file for Processorr Signature=0001067A Platform ID=1
Attempting to permanently install the microcode update(s) in your system BIOS
  DeathBringer

Куратор темы
Статус: Не в сети
Регистрация: 07.08.2003
radical
Используете мою версию CHECKUP7?
DOS какой?
  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0
DeathBringer
Версия 7.17 из образа флоппи
Также пробовал вашу по ссылке с гуглдиска (там та же версия)

DOS
1. Из образа дискеты ucode.IMA (от 98, по-моему)
2. MS DOS из Rufus'а
3. DOS с Hiren Boot CD

Везде поведение одинаково, обычно всегда пользовался вариантом (1) запуская с iodd смонтированный образ флопика, в 90% случаев все работало.
Пробовал c этой платой запускать его с iodd и реального флопика, одинаково.
  DeathBringer

Куратор темы
Статус: Не в сети
Регистрация: 07.08.2003
radical писал(а):
там та же версия
Нет, есть отличия - это мод.
Если ничего не помогает, то нужно микрокод в шестнадцатеричном редакторе вшить.

Добавлено спустя 6 минут 9 секунд:
В образе с rom.by лучше всего нужный микрокод расположить по смещению 0x4800 - 0x67FF
  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0
Еще раз попробовал скопировать с заменой на флоп файлы с вашего архива, виснет аналогично.
В HEX редакторе, я, боюсь, не осилю это сделать.
  DeathBringer

Куратор темы
Статус: Не в сети
Регистрация: 07.08.2003
radical
Попробуйте более старую версию CHECKUP - https://www.ixbt.com/cpu/cpu-errata-new.html
  alexsash

Member
Статус: Не в сети
Регистрация: 22.03.2018
Откуда: Moscow
Есть мать maximus VII hero. Перестала работать после скачка напряжения (хотя подключено было через УПС). Проца сейчас нет. Пробовал запустить пустую, с подключенным вентилятором. Подсветка есть, но индикация ошибки- 00 (Not Used), хотя, судя по инструкции должен выдавать- 57(Cpu mismath).
Считал программатором биос в .bin формате(флешка на колодке). Могу в .HEX.
Как (какой прогой) проверить его на "исправность" ?

ps/ В общем по старой памяти, отрезал начало 2048 байт. сравнил со слитым с программатора биосом. Различия с 0х1000 адреса начались. Не всё прям различается, но есть блоки несовпадения.
Открывал слитый биос прогой AMIBCP 4.53. Дата биоса совпадает с прошивкой на сайте 3201.
Выложу "обрезанный" cup и слитый с помощью программатора bin. Гляньте плиз, может реально биос побился?...
Вложение:
Комментарий к файлу: Обрезано 2048 с нулевого адреса MAXIMUS-VII-HERO-ASUS-3201.CAP
cup-2048.zip [5.55 МБ]
Скачиваний: 80

Вложение:
Комментарий к файлу: Слитый программатором с флешки
asusmaximus.zip [5.55 МБ]
Скачиваний: 77

_________________
Asus-b85mg,i7-4770(3.9),MSI GTX1060 3GT OC,KVR16N11/8 х2(16gb),Sys: Adata-256gb(6.0gbps)х2 Win7x64 Ult & Win10x64,Data:WD10EZEX(6.0gbps)x2,БП-750w

  radical

Member
Статус: Не в сети
Регистрация: 22.11.2007
Откуда: dp.ua
Фото: 0
DeathBringer писал(а):
Попробуйте более старую версию CHECKUP - https://www.ixbt.com/cpu/cpu-errata-new.html

В родной базе он не находит микрокодов, ясное дело.
Если ему подсунуть PEP.DAT от седьмой версии, пишет "ошибка контрольной суммы в строке такой-то"
Показать сообщения за:  Поле сортировки
Начать новую тему Новая тема / Ответить на тему Ответить  Сообщений: 11413 • Страница 532 из 571 • <  1 ... 529  530  531  532  533  534  535 ... 571  >
-

Список форумов » Тематические форумы » Материнские платы

Часовой пояс: UTC + 3 часа


Кто сейчас на конференции

Сейчас этот форум просматривают: нет зарегистрированных пользователей и гости: 15

Вы не можете начинать темы
Вы не можете отвечать на сообщения
Вы не можете редактировать свои сообщения
Вы не можете удалять свои сообщения
Вы не можете добавлять вложения

Перейти:
Создано на основе phpBB® Forum Software © phpBB Group
Русская поддержка phpBB | Kolobok smiles © Aiwan
