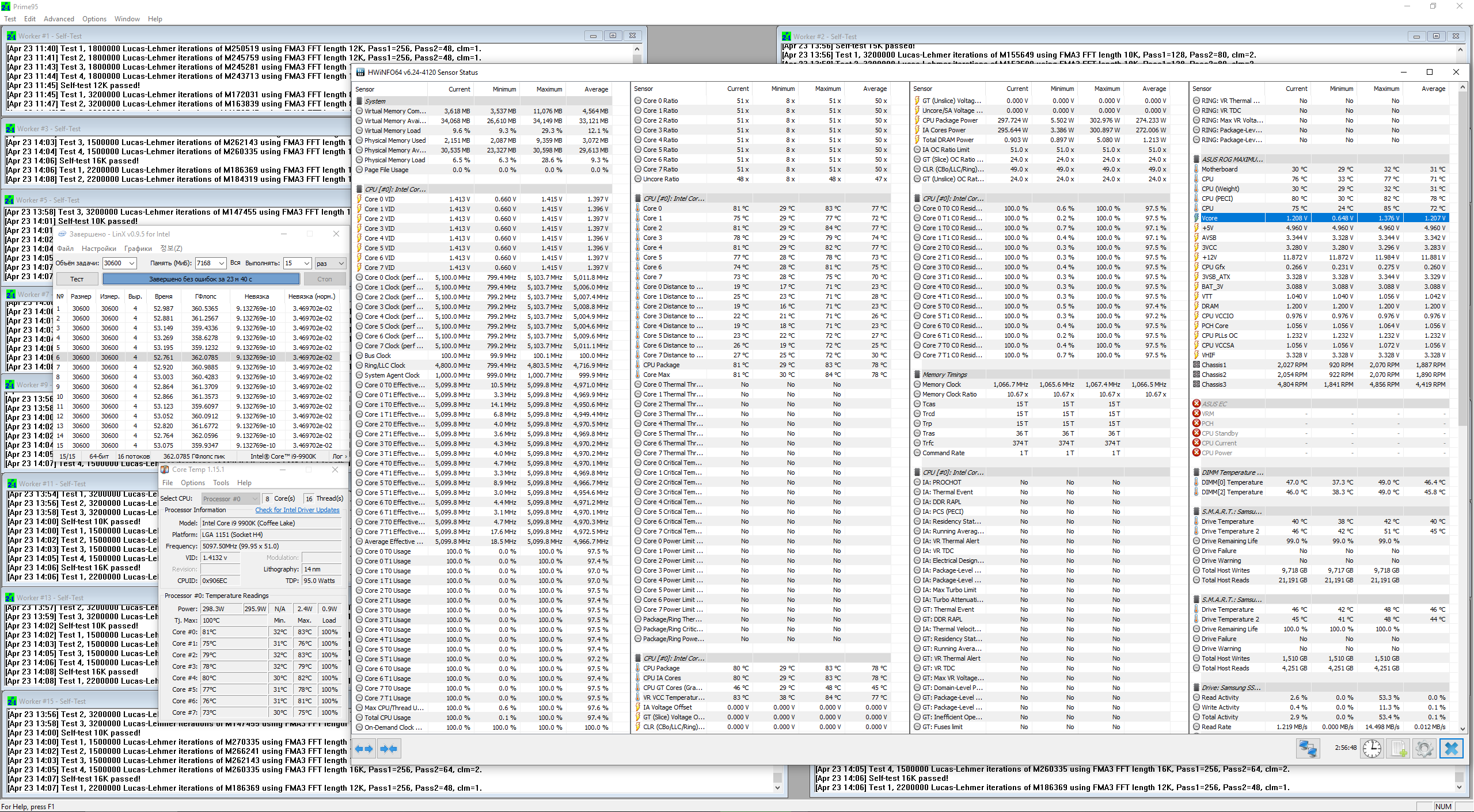

Для начала необходимо отключить функцию Multicore enhancement, затем установить значение 0.01 для опций IA AC Load Line и IA DC Load Line. Далее необходимо выставить вручную напряжение на VCCIO и VCCSA в районе 1.1v. Затем вручную зафиксировать частоту на 4.6-4.7 ГГц, и выставить напряжение в ручном режиме в районе 1.3 вольта. Если система работает корректно, можно дальше увеличивать частоту и/или снижать напряжение.

Step Up Time – характеризует скорость увеличения напряжения на вентиляторе Задает период, в течение которого напряжение на вентиляторе увеличится на 1/256 от максимального. Выражается в единицах. Одна единица соответствует интервалу времени в 0,1 секунды/ед. (по умолчанию =10)
Примеры:
10 ед (значение этого параметра по умолчанию). Увеличение напряжения на 1/256 произойдет в течение 10 ед*0,1(сек/ед) = 1 (секунда). Увеличение оборотов с нуля до максимальных соответственно произойдет за 255*1 секунда = 255 секунд = 4 минуты 16 секунд
0 ед. Увеличение оборотов до максимальных произойдет мгновенно.
255 ед.-> 6502,5 секунд= 108,375 минут=1 ч 48 мин
Полное время, затраченное на увеличение напряжения с PWM до максимального, составит: Time=(256-PWM) *(0.1* StepUpTime)

Step Down Time – полностью аналогичен предыдущему параметру, только задействован при понижении оборотов; Полное время, затраченное на уменьшение напряжения с максимального до PWM, составит: Time=(256-PWM) *(0.1* StepDownTime)
Примечание: к сожалению, на практике значение StepDownTime=0 не соответствует моментальному понижению значения регистра PWM Duty – оно все равно длится в течение нескольких секунд (по умолчанию =10)

CPU Load-line Calibration [Level 5]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Manual]
Fixed CPU VRM Switching Frequency(KHz) [550]
CPU Power Thermal Control [141]
Long Duration Package Power Limit [4095]
Package Power Time Window [127]
Short Duration Package Power Limit [4095]
BCLK Spread Spectrum [Disabled]
Max CPU Cache Ratio [49]
Download & Install ARMOURY CRATE app [Disabled]

Ai Overclock Tuner [Auto]
ASUS MultiCore Enhancement [Auto – Lets BIOS Optimize]
SVID Behavior [Auto]
AVX Instruction Core Ratio Negative Offset [Auto]
CPU Core Ratio [Sync All Cores]
1-Core Ratio Limit [51]
BCLK Frequency : DRAM Frequency Ratio [Auto]
DRAM Odd Ratio Mode [Enabled]
DRAM Frequency [Auto]
Xtreme Tweaking [Disabled]
CPU SVID Support [Auto]
Maximus Tweak [Auto]

Early Command Training [Auto]
SenseAmp Offset Training [Enabled]
Early ReadMPR Timing Centering 2D [Enabled]
Read MPR Training [Enabled]
Receive Enable Training [Enabled]
Jedec Write Leveling [Enabled]

Memory Scrambler [Enabled]
Channel A DIMM Control [Enable both DIMMs]
Channel B DIMM Control [Enable both DIMMs]
Trace Centering [Disabled]
MCH Full Check [Enabled]
Training Profile [Auto]
DLLBwEn [Auto]
DRAM SPD Write [Disabled]
XTU Setting [Auto]
CPU Load-line Calibration [Level 5]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Manual]
Fixed CPU VRM Switching Frequency(KHz) [550]
CPU Power Duty Control [T.Probe]
CPU Power Phase Control [Auto]
CPU Power Thermal Control [120]
CPU VRM Thermal Control [Auto]
DRAM Current Capability [100%]
DRAM Switching Frequency [Auto]
CPU Core/Cache Boot Voltage [Auto]
DMI Boot Voltage [Auto]
Core PLL Boot Voltage [Auto]
CPU System Agent Boot Voltage [Auto]
CPU VCCIO Boot Voltage [Auto]
PLL Termination Boot voltage [Auto]
CPU Standby Boot Voltage [Auto]
Intel(R) SpeedStep(tm) [Auto]
Turbo Mode [Enabled]
Long Duration Package Power Limit [4095]
Package Power Time Window [127]
Short Duration Package Power Limit [4095]
IA AC Load Line [Auto]
IA DC Load Line [Auto]
TVB Voltage Optimizations [Auto]
Realtime Memory Timing [Disabled]
FCLK Frequency for Early Power On [Auto]
Initial BCLK Frequency [Auto]
BCLK Amplitude [Auto]
BCLK Slew Rate [Auto]
BCLK Spread Spectrum [Disabled]
BCLK Frequency Slew Rate [Auto]
DRAM VTT Voltage [Auto]
VPPDDR Voltage [Auto]
DMI Voltage [Auto]
Core PLL Voltage [Auto]
Internal PLL Voltage [Auto]
GT PLL Voltage [Auto]
Ring PLL Voltage [Auto]
System Agent PLL Voltage [Auto]
Memory Controller PLL Voltage [Auto]
PLL Bandwidth [Auto]
Eventual DRAM Voltage [Auto]
Eventual CPU Standby Voltage [Auto]
Eventual PLL Termination Voltage [Auto]
Eventual DMI Voltage [Auto]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
Cooler Efficiency Customize [Stop Training]
Cooler Re-evaluation Algorithm [Normal]
Optimism Scale [100]
CPU Core/Cache Current Limit Max. [255.75]
Ring Down Bin [Auto]
Min. CPU Cache Ratio [Auto]
Max CPU Cache Ratio [49]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core/Cache Voltage [Adaptive Mode]
- Offset Mode Sign [+]
- Additional Turbo Mode CPU Core Voltage [1.400]
- Offset Voltage [Auto]
DRAM Voltage [Auto]
CPU VCCIO Voltage [Auto]
CPU System Agent Voltage [Auto]
PLL Termination Voltage [Auto]
PCH Core Voltage [Auto]
CPU Standby Voltage [Auto]

PCI Express Native Power Management [Disabled]
PCH DMI ASPM [Disabled]
ASPM 0 [Disabled]
L1 Substates [Disabled]
PCI Express Clock Gating [Enabled]
DMI Link ASPM Control [Disabled]
PEG - ASPM [Disabled]
Software Guard Extensions (SGX) [Software Controlled]
Tcc Offset Time Window [Auto]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel (VMX) Virtualization Technology [Enabled]
Maximum CPU Core Temperature [Auto]
Active Processor Cores [All]
Hyper-Threading [Enabled]
Thermal Monitor [Enabled]
Boot performance mode [Auto]
Intel(R) SpeedStep(tm) [Auto]
Intel(R) Speed Shift Technology [Auto]
Turbo Mode [Enabled]
CPU C-states [Auto]
CFG Lock [Disabled]
VT-d [Disabled]
Above 4G Decoding [Disabled]
Memory Remap [Enabled]
DMI Max Link Speed [Auto]
PCIEX16_1 Link Speed [Auto]
PCIEX16_2 Link Speed [Auto]
PCIe Speed [Auto]
SATA Controller(s) [Enabled]
SATA Mode Selection [AHCI]
Aggressive LPM Support [Disabled]

PTT [Disable]
HD Audio [Enabled]
Intel LAN Controller [Enabled]
Intel PXE Option ROM [Disabled]
When system is in working state [Aura Off]
Q-Code LED Function [Auto]
PCIEX16_3 Bandwidth [X2 Mode]
Hyper M.2 X16: [Disable][Enable] [Disabled]
USB power delivery in Soft Off state (S5) [Enabled]
Front Panel USB Type C Power Mode [Auto]
Back I/O USB Type C Power Mode [Auto]
Connectivity mode (Wi-Fi & Bluetooth) [Disable]
ErP Ready [Disabled]
Restore AC Power Loss [Power Off]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
SR-IOV Support [Disabled]
Legacy USB Support [Enabled]
XHCI Hand-off [Disabled]
U31G2_1 [Enabled]
U31G1_E1 [Enabled]
U31G1_E2 [Enabled]
U31G1_E3 [Enabled]
U31G1_E4 [Enabled]
U31G2_3 [Enabled]
U31G2_4 [Enabled]
LAN1_U31G2_5 [Enabled]
U31G2_C6 [Enabled]
U31G1_7 [Enabled]
U31G1_8 [Enabled]
U31G1_9 [Enabled]
U31G1_10 [Enabled]
USB_11 [Enabled]
USB_12 [Enabled]
U31G1_E5 [Enabled]
U31G1_E6 [Enabled]
Network Stack [Disabled]
Device [N\A]

DIMM Slot Number [DIMM_A1]
Download & Install ARMOURY CRATE app [Disabled]
Bus Interface [PCIEX16_1]
