- Какой вольтаж выбрать для какой частоты?
- #77

- Какие пределы по вольтажу для ZEN+?
- Для ZEN+ предел стабильности кремния (LP12) по вольтажу: для всех ядер 1,330 и 1,425 для одного ядра при условии PBO Scalar 1X (это стоит у всех мат плат по дефолту без исключения). Для PBO Scalar 10X это 1,400 и 1,480 соответственно. Выше - гарантированные проблемы с TDP и со стабильностью. То-есть если вы наваливаете свыше 1,48 для разгона по всем ядрам - процесс деградации процессора запущен.Норма до 1,45.

- Какую температуру не стоит превышать при разгоне?
- 80-85 градусов максимально допустимая. Рекомендуемая рабочая 70-75 (это не касается стресс пакетов).

- Гонится ли лучше ОЗУ на ZEN+?
- Нет, контроллер памяти идентичен прошлому поколению, даже имеет идентичные прошивки. Единственно улучшение - более низкая потребность в SOC voltage. Статистика разгона памяти : 3400 МГц - 12,5% образцов , 3466 МГц - 25,0% образцов ,3533 МГц - 62,5% образцов при условии использования памяти на чипах Samsung b-die.

- Имеют ли материнские платы на чипсете X470 преимущества перед X370?
- Единственное преимущество - улучшенный разгон ОЗУ. Только X470 имеет улучшенное экранирование шин, улучшенную топологию шин, заземление DIMM разъемов + измененный дизайн VRM(они стали холоднее). По разгону процйессора - отличий нет.

- Precision boost override доступен только для X470?
- Нет, данная функция доступна и X370 и 350 и 320, но с модифицированным биосом, который можно скачать в этой шапке.

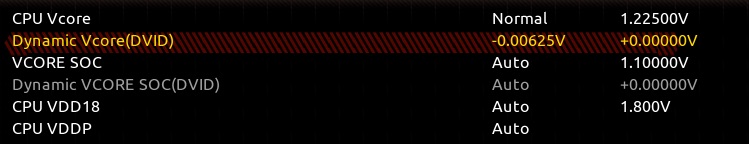

- Как настроить вольтаж CPU чтоб работало энергосбережение + сброс частоты в простое?
- Через режим Offset +

- Стоит ли использовать P-state разгон?
- Смысла в данном виде разгона нет, даже при ручном разгоне на последних AGESA был добавлен автоматический режим энергосбережения

- Можно ли настроить отдельно разгон для одного ядра и для всех остальных?
- Частично да, но на материнских платах со встроенным BCLK. Вольтаж процессора через Offset + , множитель авто, BCLK 100-101.4. Абсолютно реально получить 4450 мгц для одного ядра (разумеется если экземпляр процессора попался удачный). Так же некоторые материнские платы имеют функцию дополнительно авторазгона, к примеру на ASUS crosshair 6/7 есть функция PE (performance enhancer) которая позволяет добавить частоту для всех ядер до 4,2-4,3 ггц + буст одного ядра до 4350мгц.

- Какая память (на каких чипах) предпочтительна для ZEN+?
- Samsung b-die имеет наилучшую совместимость и разгонный потенциал

- Какой рекомендуемый вольтаж для SOC при разгоне ОЗУ?
- 1,025 - 1,056 вольта достаточно чтоб достичь 3533мгц. Предел 1,17.

DRAM Calculator for Ryzen™ 1.5.1 + MEMbench 0.7 >> Процессоры AMD Ryzen 1000-й серии (Summit Ridge\Zen\14nm\AM4) #16272644 (Последнее обновление : 13 мая ) + инструкция >> Процессоры AMD Ryzen 2000-й серии (Pinnacle Ridge\Zen+\12nm\AM4) #15856808

>> Фризы, лаги и статтеры : откуда они и как с ними бороться (AMD/Intel) << Процессоры AMD Ryzen 1000-й серии (Summit Ridge\Zen\14nm\AM4) #15277291
NEW! Pinnacle Ridge часть 1 (Что такое XFR 2.0 и какой лимит разгона процессора, новый ли контроллер памяти , какую частоту DRAM можно выжать + особенности разгона процессоров ZEN+)
NEW! Исследование вольт-частотной кривой при разгоне R7 1700 и R7 2700X по всем ядрам (Gamers Nexus)
NEW! Исследование эффективности SMT

[2018/05/04 21:46:12]
Ai Overclock Tuner [Manual]
eCLK Mode [Synchronous mode]
BCLK Frequency [100.0000]
BCLK_Divider [Auto]
Performance Enhancer [Default]
CPU Core Ratio [41.00]
Performance Bias [CB15]
Memory Frequency [DDR4-3466MHz]
Core Performance Boost [Disabled]
SMT Mode [Auto]
TPU [Keep Current Settings]
CPU Core Voltage [Manual mode]
- CPU Core Voltage Override [1.35000]
CPU SOC Voltage [Manual mode]
- VDDSOC Voltage Override [1.05000]
DRAM Voltage [1.36000]
1.8V PLL Voltage [1.80000]
1.05V SB Voltage [Auto]
Target TDP [Auto]
TRC_EOM [Auto]
TRTP_EOM [Auto]
TRRS_S_EOM [Auto]
TRRS_L_EOM [Auto]
TWTR_EOM [Auto]
TWTR_L_EOM [Auto]
TWCL_EOM [Auto]
TWR_EOM [Auto]
TFAW_EOM [Auto]
TRCT_EOM [Auto]
TREFI_EOM [Auto]
TRDRD_DD_EOM [Auto]
TRDRD_SD_EOM [Auto]
TRDRD_SC_EOM [Auto]
TRDRD_SCDLR_EOM [Auto]
TRDRD_SCL_EOM [Auto]
TWRWR_DD_EOM [Auto]
TWRWR_SD_EOM [Auto]
TWRWR_SC_EOM [Auto]
TWRWR_SCDLR_EOM [Auto]
TWRWR_SCL_EOM [Auto]
TWRRD_EOM [Auto]
TRDWR_EOM [Auto]
TWRRD_SCDLR_EOM [Auto]
Mem Over Clock Fail Count [Auto]
DRAM CAS# Latency [15]
DRAM RAS# to CAS# Read Delay [15]
DRAM RAS# to CAS# Write Delay [15]
DRAM RAS# PRE Time [15]
DRAM RAS# ACT Time [30]
Trc [48]
TrrdS [7]
TrrdL [10]
Tfaw [32]
TwtrS [4]
TwtrL [12]
Twr [16]
Trcpage [Auto]
TrdrdScl [4]
TwrwrScl [4]
Trfc [280]
Trfc2 [Auto]
Trfc4 [Auto]
Tcwl [14]
Trtp [12]
Trdwr [7]
Twrrd [3]
TwrwrSc [1]
TwrwrSd [7]
TwrwrDd [7]
TrdrdSc [1]
TrdrdSd [5]
TrdrdDd [5]
Tcke [8]
ProcODT [53.3 ohm]
Cmd2T [1T]
Gear Down Mode [Disabled]
Power Down Enable [Disabled]
RttNom [RZQ/7]
RttWr [Dynamic ODT Off]
RttPark [RZQ/5]
MemAddrCmdSetup [0]
MemCsOdtSetup [0]
MemCkeSetup [0]
MemCadBusClkDrvStren [20.0 Ohm]
MemCadBusAddrCmdDrvStren [20.0 Ohm]
MemCadBusCsOdtDrvStren [20.0 Ohm]
MemCadBusCkeDrvStren [20.0 Ohm]
VTTDDR Voltage [Auto]
VPP_MEM Voltage [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
VDDP Voltage [Auto]
VDDP Standby Voltage [Auto]
1.8V Standby Voltage [Auto]
CPU 3.3v AUX [Auto]
2.5V SB Voltage [Auto]
DRAM R1 Tune [Auto]
DRAM R2 Tune [Auto]
DRAM R3 Tune [Auto]
DRAM R4 Tune [Auto]
PCIE Tune R1 [Auto]
PCIE Tune R2 [Auto]
PCIE Tune R3 [Auto]
PLL Tune R1 [Auto]
PLL reference voltage [60]
T Offset [Auto]
Sense MI Skew [Enabled]
Sense MI Offset [267]
Promontory presence [Auto]
Clock Amplitude [Auto]
CLDO VDDP voltage [Auto]
CPU Load-line Calibration [Auto]
CPU Current Capability [130%]
CPU VRM Switching Frequency [Manual]
CPU Voltage Frequency [400]
CPU Power Duty Control [T.Probe]
CPU Power Phase Control [Extreme]
CPU Power Thermal Control [120]
VDDSOC Load-line Calibration [Level 3]
VDDSOC Current Capability [130%]
VDDSOC Switching Frequency [Manual]
Fixed VDDSOC Switching Frequency(KHz) [400]
VDDSOC Phase Control [Optimized]
DRAM Current Capability [100%]
DRAM Power Phase Control [Optimized]
DRAM Switching Frequency [Manual]
Fixed DRAM Switching Frequency(KHz) [400]
DRAM VBoot Voltage [Auto]
Security Device Support [Enable]
TPM Device Selection [Discrete TPM]
Erase fTPM NV for factory reset [Enabled]
PSS Support [Auto]
SVM Mode [Disabled]
PT XHCI GEN1 [Auto]
PT XHCI GEN2 [Auto]
PT USB Equalization4 [Auto]
PT USB Redriver [Auto]
PT PCIE PORT 0 [Auto]
PT PCIE PORT 1 [Auto]
PT PCIE PORT 2 [Auto]
PT PCIE PORT 3 [Auto]
PT PCIE PORT 4 [Auto]
PT PCIE PORT 5 [Auto]
PT PCIE PORT 6 [Auto]
PT PCIE PORT 7 [Auto]
PT SATA PORT 0 Enable [Auto]
PT SATA PORT 1 Enable [Auto]
PT SATA PORT 2 Enable [Auto]
PT SATA PORT 3 Enable [Auto]
PT SATA PORT 4 Enable [Auto]
PT SATA PORT 5 Enable [Auto]
PT SATA PORT 6 Enable [Auto]
PT SATA PORT 7 Enable [Auto]
Onboard PCIE LAN PXE ROM [Enabled]
AMD CRB EHCI Debug port switch [Disabled]
Onboard LED [Enabled]
Q-Code LED Function [Enabled]
Primary Video Device [PCIE / PCI Video]
Hyper kit Mode [Disabled]
SATA Port Enable [Enabled]
SATA Mode [AHCI]
NVMe RAID mode [Disabled]
SMART Self Test [Enabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
ErP Ready [Disabled]
Restore On AC Power Loss [Power Off]
Power On By PCI-E/PCI [Disabled]
Power On By RTC [Disabled]
Super I/O Clock Skew [Auto]
HD Audio Controller [Enabled]
PCIEX4_3 Bandwidth [Auto]
PCIEX8_2：X4/X4 Mode [Auto]
PCIEX16_1 Mode [Auto]
PCIEX4_3 Mode [Auto]
M.2 Link Mode [Auto]
SB Link Mode [Auto]
Asmedia USB 3.1 Controller [Enabled]
When system is in working state [On]
In sleep, hibernate and soft off states [On]
Intel LAN Controller [Enabled]
Intel LAN OPROM [Disabled]
USB Type C Power Switch for USB3.1_E1 [Auto]
USB Type C Power Switch for USB3.1_EC2 [Auto]
Network Stack [Disabled]
Debug Port Table [Disabled]
Debug Port Table 2 [Disabled]
Device [KINGSTON SHSS37A240G]
Legacy USB Support [Enabled]
XHCI Hand-off [Enabled]
USB Mass Storage Driver Support [Enabled]
SMI USB DISK 1100 [Auto]
USB3.1_E1 [Enabled]
USB3_1 [Enabled]
USB3_2 [Enabled]
USB3_3 [Enabled]
USB3_4 [Enabled]
USB3_5 [Enabled]
USB3_6 [Enabled]
USB3_7 [Enabled]
USB3_8 [Enabled]
USB3_9 [Enabled]
USB3_10 [Enabled]
USB2_11 [Enabled]
USB2_12 [Enabled]
USB2_13 [Enabled]
USB2_14 [Enabled]
USB_15 [Enabled]
USB_16 [Enabled]
CPU Temperature [Monitor]
MotherBoard Temperature [Monitor]
VRM Temperature [Monitor]
PCH Temperature [Monitor]
T_Sensor1 Temperature [Monitor]
CPU Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
W_PUMP+ Speed [Monitor]
CPU Optional Fan Speed [Monitor]
AIO_PUMP Speed [Monitor]
W_FLOW Speed [Monitor]
W_IN Temperature [Monitor]
W_OUT Temperature [Monitor]
CPU Core Voltage [Monitor]
3.3V Voltage [Monitor]
5V Voltage [Monitor]
12V Voltage [Monitor]
CPU Q-Fan Control [PWM Mode]
CPU Fan Smoothing Up/Down Time [0 sec]
CPU Fan Speed Lower Limit [200 RPM]
CPU Fan Profile [Silent]
AIO_PUMP/W_PUMP+ Control [Disabled]
Chassis Fan 1 Q-Fan Control [PWM Mode]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Smoothing Up/Down Time [0 sec]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 1 Profile [Manual]
Chassis Fan 1 Upper Temperature [71]
Chassis Fan 1 Max. Duty Cycle (%) [90]
Chassis Fan 1 Middle Temperature [60]
Chassis Fan 1 Middle. Duty Cycle (%) [80]
Chassis Fan 1 Lower Temperature [30]
Chassis Fan 1 Min. Duty Cycle (%) [45]
Chassis Fan 2 Q-Fan Control [PWM Mode]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Smoothing Up/Down Time [0 sec]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 2 Profile [Silent]
Chassis Fan 3 Q-Fan Control [PWM Mode]
Chassis Fan 3 Q-Fan Source [CPU]
Chassis Fan 3 Smoothing Up/Down Time [0 sec]
Chassis Fan 3 Speed Low Limit [200 RPM]
Chassis Fan 3 Profile [Silent]
OnChip SATA Channel [Auto]
OnChip SATA Type [AHCI]
USB3_1 [Enabled]
USB3_2 [Enabled]
USB3_3 [Enabled]
USB3_4 [Enabled]
IR Config [RX & TX0 Only]
SdForce18 Enable [Disabled]
SD Mode configuration [AMDA]
Uart 0 Enable [Enabled]
Uart 1 Enable [Enabled]
I2C 0 Enable [Enabled]
I2C 1 Enable [Enabled]
I2C 2 Enable [Disabled]
I2C 3 Enable [Disabled]
GPIO Devices Support [Auto]
ESATA Port On Port 0 [Auto]
ESATA Port On Port 1 [Auto]
ESATA Port On Port 2 [Auto]
ESATA Port On Port 3 [Auto]
ESATA Port On Port 4 [Auto]
ESATA Port On Port 5 [Auto]
ESATA Port On Port 6 [Auto]
ESATA Port On Port 7 [Auto]
SATA Power On Port 0 [Auto]
SATA Power On Port 1 [Auto]
SATA Power On Port 2 [Auto]
SATA Power On Port 3 [Auto]
SATA Power On Port 4 [Auto]
SATA Power On Port 5 [Auto]
SATA Power On Port 6 [Auto]
SATA Power On Port 7 [Auto]
SATA Port 0 MODE [Auto]
SATA Port 1 MODE [Auto]
SATA Port 2 MODE [Auto]
SATA Port 3 MODE [Auto]
SATA Port 4 MODE [Auto]
SATA Port 5 MODE [Auto]
SATA Port 6 MODE [Auto]
SATA Port 7 MODE [Auto]
SATA Hot-Removable Support [Auto]
SATA 6 AHCI Support [Auto]
Int. Clk Differential Spread [Auto]
SATA MAXGEN2 CAP OPTION [Auto]
SATA CLK Mode Option [Auto]
Aggressive Link PM Capability [Auto]
Port Multiplier Capability [Auto]
SATA Ports Auto Clock Control [Auto]
SATA Partial State Capability [Auto]
SATA FIS Based Switching [Auto]
SATA Command Completion Coalescing Support [Auto]
SATA Slumber State Capability [Auto]
SATA MSI Capability Support [Auto]
SATA Target Support 8 Devices [Auto]
Generic Mode [Auto]
SATA AHCI Enclosure [Auto]
SATA SGPIO 0 [Auto]
SATA SGPIO 1 [Disabled]
SATA PHY PLL [Auto]
AC/DC Change Message Delivery [Disabled]
TimerTick Tracking [Auto]
Clock Interrupt Tag [Auto]
EHCI Traffic Handling [Disabled]
Fusion Message C Multi-Core [Disabled]
Fusion Message C State [Disabled]
SPI Read Mode [Auto]
SPI 100MHz Support [Auto]
SPI Normal Speed [Auto]
SPI Fast Read Speed [Auto]
SPI Burst Write [Auto]
I2C 0 D3 Support [Auto]
I2C 1 D3 Support [Auto]
I2C 2 D3 Support [Auto]
I2C 3 D3 Support [Auto]
I2C 4 D3 Support [Auto]
I2C 5 D3 Support [Auto]
UART 0 D3 Support [Auto]
UART 1 D3 Support [Auto]
UART 2 D3 Support [Auto]
UART 3 D3 Support [Auto]
SATA D3 Support [Auto]
EHCI D3 Support [Auto]
XHCI D3 Support [Auto]
SD D3 Support [Auto]
S0I3 [Auto]
Chipset Power Saving Features [Enabled]
SB Clock Spread Spectrum [Auto]
SB Clock Spread Spectrum Option [-0.375%]
HPET In SB [Auto]
MsiDis in HPET [Auto]
_OSC For PCI0 [Auto]
USB Phy Power Down [Auto]
PCIB_CLK_Stop Override [0]
USB MSI Option [Auto]
LPC MSI Option [Auto]
PCIBridge MSI Option [Auto]
AB MSI Option [Auto]
SB C1E Support [Auto]
SB Hardware Reduced Support [Auto]
GPP Serial Debug Bus Enable [Auto]
PSPP Policy [Auto]
Memory Clock [Auto]
Bank Interleaving [Enabled]
Channel Interleaving [Enabled]
Memory Clear [Disabled]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Normal Boot]
Boot Logo Display [Auto]
POST Delay Time [3 sec]
Boot up NumLock State [Enabled]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Enabled]
Interrupt 19 Capture [Disabled]
Setup Mode [Advanced Mode]
Launch CSM [Enabled]
Boot Device Control [UEFI and Legacy OPROM]
Boot from Network Devices [Legacy only]
Boot from Storage Devices [Legacy only]
Boot from PCI-E Expansion Devices [Legacy only]
OS Type [Other OS]
Setup Animator [Disabled]
Load from Profile [2]
Profile Name [3466]
Save to Profile [2]
CPU Core Voltage [Auto]
VDDSOC Voltage [Auto]
1.8V PLL Voltage [Auto]
BCLK Frequency [Auto]
CPU Ratio [Auto]
Bus Interface [PCIEX16/X8_1]
