Рванул только что с OZON "Asus PRIME X299-A II" за 23 700р., вроде еще одна осталась ! Я у них даже уточнил, это именно Asus PRIME X299-A II, которая 12 фазка

а есть что то попроще с такой же задержкой? с ТВ3 тоже - мне и 1го б канала б хватило, но естественно линейного по АЧХ)

Оба на высококачественном ЦАП ESS Sabre32 Ultra
https://motu.com/products/avb/624
https://motu.com/products/avb/8a
Обзор на 624 здесь
https://prosound.ixbt.com/interfaces/motu-624.shtml

Для того, что бы перейти с TB3 на TB2 разъём (без потерь), потребуется фирменный Apple Адаптер Thunderbolt 3 (USB-C) / Thunderbolt 2 (MMEL2ZM/A)
https://www.apple.com/ru/shop/product/MMEL2ZM/A/%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80-thunderbolt-3-usb-c-thunderbolt-2
https://www.wildberries.ru/catalog/6477101/detail.aspx?targetUrl=PO&_ga=2.126706637.1382680543.1593027021-2035519879.1591732210
Есть ещё вот https://prosound.ixbt.com/interfaces/lynx-studio-hilo.shtml. Как раз 2 канала ( стерео ). Но цена ...

вот ещё один обзор, не менее интересного творения от ASUS с тем же кол-вом фаз, на тех же ключах и, практически тем же функционалом, но уже разработанного с учётом 10000X
https://www.ixbt.com/platform/asus-prime-x299-edition-30-review.html

[2020/06/28 18:07:54]
Ai Overclock Tuner [Manual]
CPU Strap [100]
BCLK Frequency [100.0000]
ASUS MultiCore Enhancement [Auto]
AVX Instruction Core Ratio Negative Offset [5]
AVX-512 Instruction Core Ratio Negative Offset [16]
CPU Core Ratio [By Specific Core]
Min. CPU Cache Ratio [31]
Max. CPU Cache Ratio [31]
BCLK Frequency : DRAM Frequency Ratio [100:100]
DRAM Frequency [DDR4-3400MHz]
TPU [Keep Current Settings]
CPU SVID Support [Disabled]
Extreme Over-voltage [Disabled]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core Voltage [Auto]
CPU Cache Voltage [Auto]
Uncore Voltage Offset [Auto]
Uncore Voltage Offset Prefix [+]
CPU Input Voltage [Auto]
DRAM Voltage(CHA, CHB) [1.3800]
DRAM Voltage(CHC, CHD) [1.3800]
CPU VCCIO Voltage [1.15000]
CPU System Agent Voltage [Auto]
PCH Core Voltage [Auto]
PLL Reference Offset Mode Sign [+]
PLL Reference Offset Value [Auto]
Turbo Ratio Limit 0 [Auto]
Turbo Ratio Cores 0 [Auto]
Turbo Ratio Limit 1 [Auto]
Turbo Ratio Cores 1 [Auto]
Turbo Ratio Limit 2 [Auto]
Turbo Ratio Cores 2 [Auto]
Turbo Ratio Limit 3 [Auto]
Turbo Ratio Cores 3 [Auto]
Turbo Ratio Limit 4 [Auto]
Turbo Ratio Cores 4 [Auto]
Turbo Ratio Limit 5 [Auto]
Turbo Ratio Cores 5 [Auto]
Turbo Ratio Limit 6 [Auto]
Turbo Ratio Cores 6 [Auto]
Turbo Ratio Limit 7 [Auto]
Turbo Ratio Cores 7 [Auto]
*Core-1 Max Ratio [49]
CPU Core-1 Voltage [Manual Mode]
CPU Core-1 Voltage Override [1.280]
Core-2 Max Ratio [49]
CPU Core-2 Voltage [Manual Mode]
CPU Core-2 Voltage Override [1.280]
Core-3 Max Ratio [44]
CPU Core-3 Voltage [Manual Mode]
CPU Core-3 Voltage Override [1.100]
Core-4 Max Ratio [49]
CPU Core-4 Voltage [Manual Mode]
CPU Core-4 Voltage Override [1.280]
Core-5 Max Ratio [44]
CPU Core-5 Voltage [Manual Mode]
CPU Core-5 Voltage Override [1.100]
Core-6 Max Ratio [46]
CPU Core-6 Voltage [Manual Mode]
CPU Core-6 Voltage Override [1.200]
Core-7 Max Ratio [46]
CPU Core-7 Voltage [Manual Mode]
CPU Core-7 Voltage Override [1.200]
Core-8 Max Ratio [45]
CPU Core-8 Voltage [Manual Mode]
CPU Core-8 Voltage Override [1.140]
Core-9 Max Ratio [45]
CPU Core-9 Voltage [Manual Mode]
CPU Core-9 Voltage Override [1.140]
Core-10 Max Ratio [45]
CPU Core-10 Voltage [Manual Mode]
CPU Core-10 Voltage Override [1.140]
Core-11 Max Ratio [47]
CPU Core-11 Voltage [Manual Mode]
CPU Core-11 Voltage Override [1.230]
*Core-12 Max Ratio [48]
CPU Core-12 Voltage [Manual Mode]
CPU Core-12 Voltage Override [1.270]
DRAM CTRL REF Voltage on CHC [Auto]
DRAM CTRL REF Voltage on CHD [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHC DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHC DIMM1 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHD DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHD DIMM1 Rank1 BL7 [Auto]
Self-tracked Clocking [Auto]
PCIe Gen3 PLL Clock Control [Enabled]
PLL Post Divider Adjust [Auto]
Change PLLTRIM Prefix [+]
Change PllTrim Value [Auto]
Change MC-PLLTRIM Prefix [+]
Change MC-PllTrim Value [Auto]
Turbo Residence Tweak 0 [11]
Turbo Residence Tweak 1 [9]
Turbo Residence Tweak 2 [7]
Turbo Residence Tweak 3 [2]
Initial BCLK Frequency [Auto]
CPU BCLK Amplitude [Auto]
CPU BCLK Spread Spectrum [Disabled]
CPU BCLK Frequency Slew Rate [Auto]
CPU BCLK Slew Rate [Auto]
PCIE/DMI Slew Rate [Auto]
CPU AUX1 Voltage [Auto]
CPU AUX2 Voltage [Auto]
CPU Input Reset Voltage [Auto]
VTTDDR Voltage(CHA, CHB) [Auto]
VTTDDR Voltage(CHC, CHD) [Auto]
VPPDDR Voltage (CHA, CHB) [Auto]
VPPDDR Voltage (CHC, CHD) [Auto]
DMI Voltage [Auto]
DRAM Eventual Voltage(CHA, CHB) [Auto]
DRAM Eventual Voltage(CHC, CHD) [Auto]
Eventual CPU Standby Voltage [Auto]
Eventual PLL Termination Voltage [Auto]
Eventual DMI Voltage [Auto]
DRAM CAS# Latency [Auto]
DRAM RAS# to CAS# Delay [Auto]
DRAM RAS# ACT Time [Auto]
DRAM Command Rate [Auto]
DRAM RAS# to RAS# Delay L [Auto]
DRAM RAS# to RAS# Delay S [Auto]
DRAM REF Cycle Time [Auto]
DRAM Refresh Interval [Auto]
DRAM WRITE Recovery Time [Auto]
DRAM READ to PRE Time [Auto]
DRAM FOUR ACT WIN Time [Auto]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [Auto]
DRAM WRITE to READ Delay S [Auto]
DRAM CKE Minimum Pulse Width [Auto]
DRAM Write Latency [Auto]
tRDRD_sg [Auto]
tRDRD_dg [Auto]
tRDWR_sg [Auto]
tRDWR_dg [Auto]
tWRWR_sg [Auto]
tWRWR_dg [Auto]
tWRRD_sg [Auto]
tWRRD_dg [Auto]
tRDRD_dr [Auto]
tRDRD_dd [Auto]
tRDWR_dr [Auto]
tRDWR_dd [Auto]
tWRWR_dr [Auto]
tWRWR_dd [Auto]
tWRRD_dr [Auto]
tWRRD_dd [Auto]
TWRPRE [Auto]
TRDPRE [Auto]
tREFIX9 [Auto]
OREF_RI [Auto]
MRC Fast Boot [Auto]
DRAM CLK Period [Auto]
Memory Scrambler [Enabled]
Channel C DIMM Control [Enable both DIMMs]
Channel D DIMM Control [Enable both DIMMs]
MCH Full Check [Auto]
DLLBwEn [Auto]
DRAM SPD Write [Disabled]
DRAM CAS# Latency [14]
DRAM RAS# to CAS# Delay [15]
DRAM RAS# PRE Time [15]
DRAM RAS# ACT Time [30]
DRAM Command Rate [Timing 1T]
DRAM RAS# to RAS# Delay [3]
DRAM RAS# to RAS# Delay L [4]
DRAM REF Cycle Time [264]
DRAM Refresh Interval [32767]
DRAM WRITE Recovery Time [Auto]
DRAM READ to PRE Time [Auto]
DRAM FOUR ACT WIN Time [20]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [Auto]
DRAM CKE Minimum Pulse Width [Auto]
DRAM Write Latency [Auto]
tRRDR [1]
tRRDD [1]
tRWDR [Auto]
tRWDD [Auto]
tWRDR [0]
tWRDD [1]
tWWDR [1]
tWWDD [1]
tRWSR [Auto]
tCCD [Auto]
tCCD_L [Auto]
tCCDWR [Auto]
tCCDWR_L [Auto]
tRRDS [Auto]
tRWDS [Auto]
tWRDS [Auto]
tWWDS [Auto]
DRAM CLK Period [Auto]
Attempt Fast Boot [Enabled]
Attempt Fast Cold Boot [Enabled]
DRAM Training [Smart]
WR CRC feature Control [Disabled]
Duty Cycle Training [Auto]
Read Vref Centering [Auto]
Eye Diagrams [Auto]
Turnaround Time Optimization [Enabled]
PDA [Auto]
Write Vref Centering [Auto]
Enhanced Training(CHA) [Auto]
Enhanced Training(CHB) [Auto]
Enhanced Training(CHC) [Auto]
Enhanced Training(CHD) [Auto]
DRAM RTL INIT value [Auto]
DRAM RTL (CHC DIMM0 Rank0) [Auto]
DRAM RTL (CHC DIMM0 Rank1) [Auto]
DRAM RTL (CHC DIMM1 Rank0) [Auto]
DRAM RTL (CHC DIMM1 Rank1) [Auto]
DRAM RTL (CHD DIMM0 Rank0) [Auto]
DRAM RTL (CHD DIMM0 Rank1) [Auto]
DRAM RTL (CHD DIMM1 Rank0) [Auto]
DRAM RTL (CHD DIMM1 Rank1) [Auto]
DRAM IOL (CHC DIMM0 Rank0) [Auto]
DRAM IOL (CHC DIMM0 Rank1) [Auto]
DRAM IOL (CHC DIMM1 Rank0) [Auto]
DRAM IOL (CHC DIMM1 Rank1) [Auto]
DRAM IOL (CHD DIMM0 Rank0) [Auto]
DRAM IOL (CHD DIMM0 Rank1) [Auto]
DRAM IOL (CHD DIMM1 Rank0) [Auto]
DRAM IOL (CHD DIMM1 Rank1) [Auto]
CHC IO_Latency_offset [Auto]
CHD IO_Latency_offset [Auto]
CHC RFR delay [Auto]
CHD RFR delay [Auto]
DRAM RTL INIT value [66]
DRAM RTL (CHA D0 R0) [Auto]
DRAM RTL (CHA D0 R1) [Auto]
DRAM RTL (CHA D1 R0) [Auto]
DRAM RTL (CHA D1 R1) [Auto]
DRAM RTL (CHB D0 R0) [Auto]
DRAM RTL (CHB D0 R1) [Auto]
DRAM RTL (CHB D1 R0) [Auto]
DRAM RTL (CHB D1 R1) [Auto]
DRAM RTL (CHC D0 R0) [Auto]
DRAM RTL (CHC D0 R1) [Auto]
DRAM RTL (CHC D1 R0) [Auto]
DRAM RTL (CHC D1 R1) [Auto]
DRAM RTL (CHD D0 R0) [Auto]
DRAM RTL (CHD D0 R1) [Auto]
DRAM RTL (CHD D1 R0) [Auto]
DRAM RTL (CHD D1 R1) [Auto]
DRAM IOL (CHA D0 R0) [Auto]
DRAM IOL (CHA D0 R1) [Auto]
DRAM IOL (CHA D1 R0) [Auto]
DRAM IOL (CHA D1 R1) [Auto]
DRAM IOL (CHB D0 R0) [Auto]
DRAM IOL (CHB D0 R1) [Auto]
DRAM IOL (CHB D1 R0) [Auto]
DRAM IOL (CHB D1 R1) [Auto]
DRAM IOL (CHC D0 R0) [Auto]
DRAM IOL (CHC D0 R1) [Auto]
DRAM IOL (CHC D1 R0) [Auto]
DRAM IOL (CHC D1 R1) [Auto]
DRAM IOL (CHD D0 R0) [Auto]
DRAM IOL (CHD D0 R1) [Auto]
DRAM IOL (CHD D1 R0) [Auto]
DRAM IOL (CHD D1 R1) [Auto]
DRAM IO Comp (CHA) [Auto]
DRAM IO Comp (CHB) [Auto]
DRAM IO Comp (CHC) [Auto]
DRAM IO Comp (CHD) [Auto]
MC Vref(CHA) [Auto]
MC Vref(CHB) [Auto]
MC Vref(CHC) [Auto]
MC Vref(CHD) [Auto]
DRAM Vref(CHA) [Auto]
DRAM Vref(CHA) [Auto]
DRAM Vref(CHC) [Auto]
DRAM Vref(CHC) [Auto]
CTL Vref (CHA) [Auto]
CTL Verf (CHB) [Auto]
CTL Vref (CHC) [Auto]
CTL Verf (CHD) [Auto]
Receiver DQ Pre-emphasis [Auto]
Receiver DQ De-emphasis [Auto]
Transmitter DQ Pre-emphasis [Auto]
Transmitter DQ De-emphasis [Auto]
Receiver DQS Pre-emphasis [Auto]
Receiver DQS De-emphasis [Auto]
Transmitter DQS Pre-emphasis [Auto]
Transmitter DQS De-emphasis [Auto]
Receiver CMD Pre-emphasis [Auto]
Receiver CMD De-emphasis [Auto]
Transmitter CMD Pre-emphasis [Auto]
Transmitter CMD De-emphasis [Auto]
ODT RTT WR (CHC) [Auto]
ODT RTT PARK (CHC) [Auto]
ODT RTT NOM (CHC) [Auto]
ODT RTT WR (CHD) [Auto]
ODT RTT PARK (CHD) [Auto]
ODT RTT NOM (CHD) [Auto]
ODT_READ_DURATION [Auto]
ODT_READ_DELAY [Auto]
ODT_WRITE_DURATION [Auto]
ODT_WRITE_DELAY [Auto]
Data Rising Slope [Auto]
Data Rising Slope Offset [Auto]
Cmd Rising Slope [Auto]
Cmd Rising Slope Offset [Auto]
Ctl Rising Slope [Auto]
Ctl Rising Slope Offset [Auto]
Clk Rising Slope [Auto]
Clk Rising Slope Offset [Auto]
Data Falling Slope [Auto]
Data Falling Slope Offset [Auto]
Cmd Falling Slope [Auto]
Cmd Falling Slope Offset [Auto]
Ctl Falling Slope [Auto]
Ctl Falling Slope Offset [Auto]
Clk Falling Slope [Auto]
Clk Falling Slope Offset [Auto]
ODT RTTWR(CHA D0) [Auto]
ODT RTTWR(CHA D1) [Auto]
ODT RTTWR(CHB D0) [Auto]
ODT RTTWR(CHB D1) [Auto]
ODT RTTWR(CHC D0) [Auto]
ODT RTTWR(CHC D1) [Auto]
ODT RTTWR(CHD D0) [Auto]
ODT RTTWR(CHD D1) [Auto]
ODT RTTNOM(CHA D0) [Auto]
ODT RTTNOM(CHA D1) [Auto]
ODT RTTNOM(CHB D0) [Auto]
ODT RTTNOM(CHB D1) [Auto]
ODT RTTNOM(CHC D0) [Auto]
ODT RTTNOM(CHC D1) [Auto]
ODT RTTNOM(CHD D0) [Auto]
ODT RTTNOM(CHD D1) [Auto]
ODT RTTPARK(CHA D0) [Auto]
ODT RTTPARK(CHA D1) [Auto]
ODT RTTPARK(CHB D0) [Auto]
ODT RTTPARK(CHB D1) [Auto]
ODT RTTPARK(CHC D0) [Auto]
ODT RTTPARK(CHC D1) [Auto]
ODT RTTPARK(CHD D0) [Auto]
ODT RTTPARK(CHD D1) [Auto]
Data Rising Slope (CHAB) [Auto]
Data Rising Slope (CHCD) [Auto]
Data Rising Slope Offset (CHAB) [Auto]
Data Rising Slope Offset (CHCD) [Auto]
Cmd Rising Slope (CHAB) [Auto]
Cmd Rising Slope (CHCD) [Auto]
Cmd Rising Slope Offset (CHAB) [Auto]
Cmd Rising Slope Offset (CHCD) [Auto]
Ctl Rising Slope (CHAB) [Auto]
Ctl Rising Slope (CHCD) [Auto]
Ctl Rising Slope Offset (CHAB) [Auto]
Ctl Rising Slope Offset (CHCD) [Auto]
Data Falling Slope (CHAB) [Auto]
Data Falling Slope (CHCD) [Auto]
Data Falling Slope Offset (CHAB) [Auto]
Data Falling Slope Offset (CHCD) [Auto]
Cmd Falling Slope Falling Slope (CHAB) [Auto]
Cmd Falling Slope Falling Slope (CHCD) [Auto]
Cmd Falling Slope Offset (CHAB) [Auto]
Cmd Falling Slope Offset (CHCD) [Auto]
Ctl Falling Slope (CHAB) [Auto]
Ctl Falling Slope (CHCD) [Auto]
Ctl Falling Slope Offset (CHAB) [Auto]
Ctl Falling Slope Offset (CHCD) [Auto]
IMC Interleaving [Auto]
Channel Interleaving [Auto]
Rank Interleaving [Auto]
CPU Load-line Calibration [Level 5]
CPU Current Capability [200%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Disabled]
CPU Power Phase Control [Extreme]
CPU Power Thermal Control [120]
DRAM Current Capability [130%]
DRAM Switching Frequency [Auto]
CPU Input Boot Voltage [Auto]
CPU System Agent Boot Voltage [Auto]
CPU VCCIO Boot Voltage [Auto]

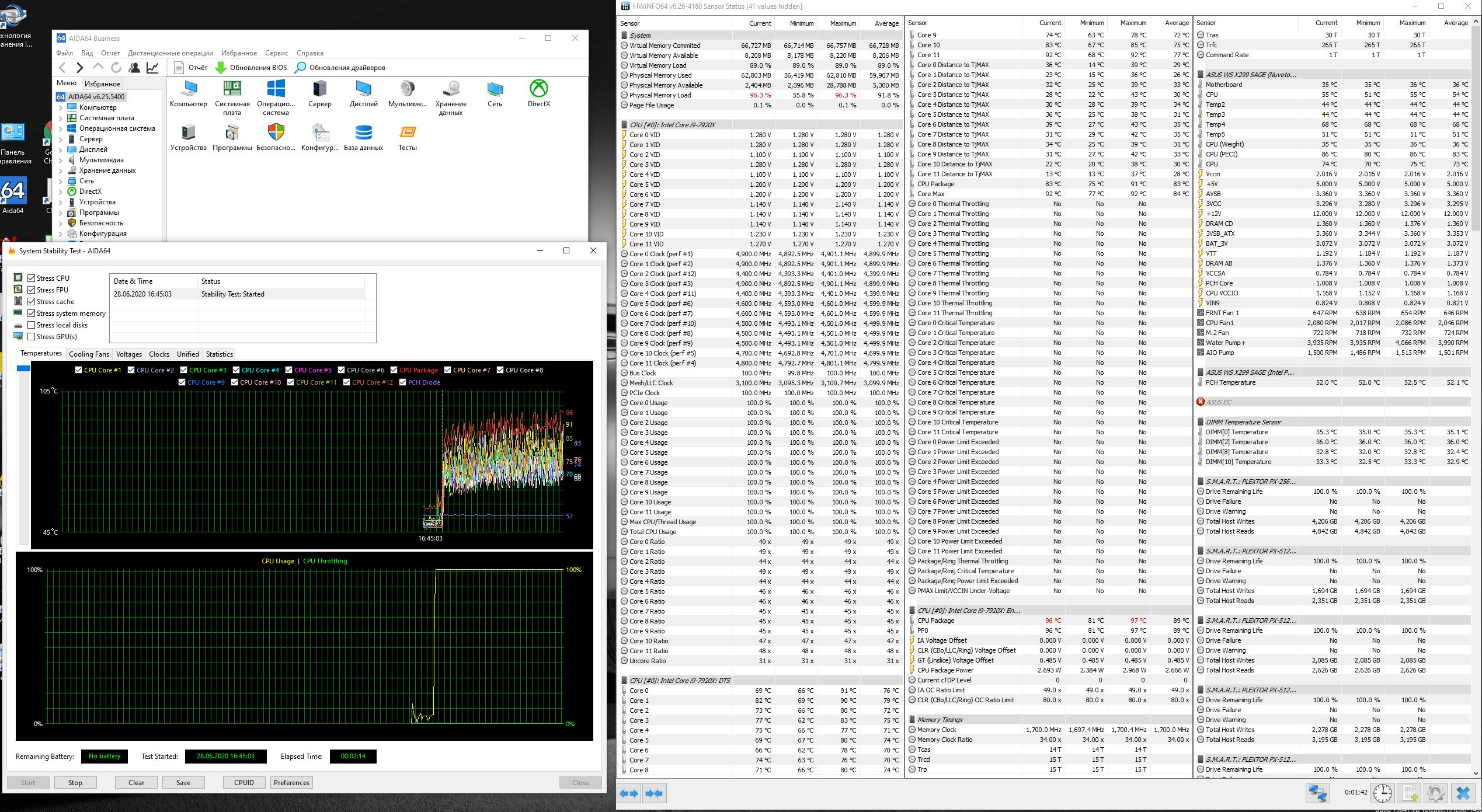

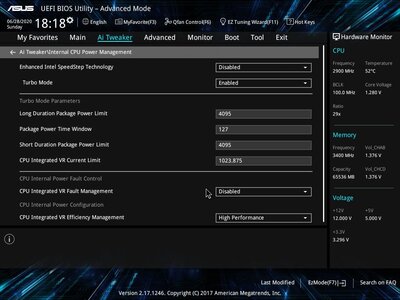

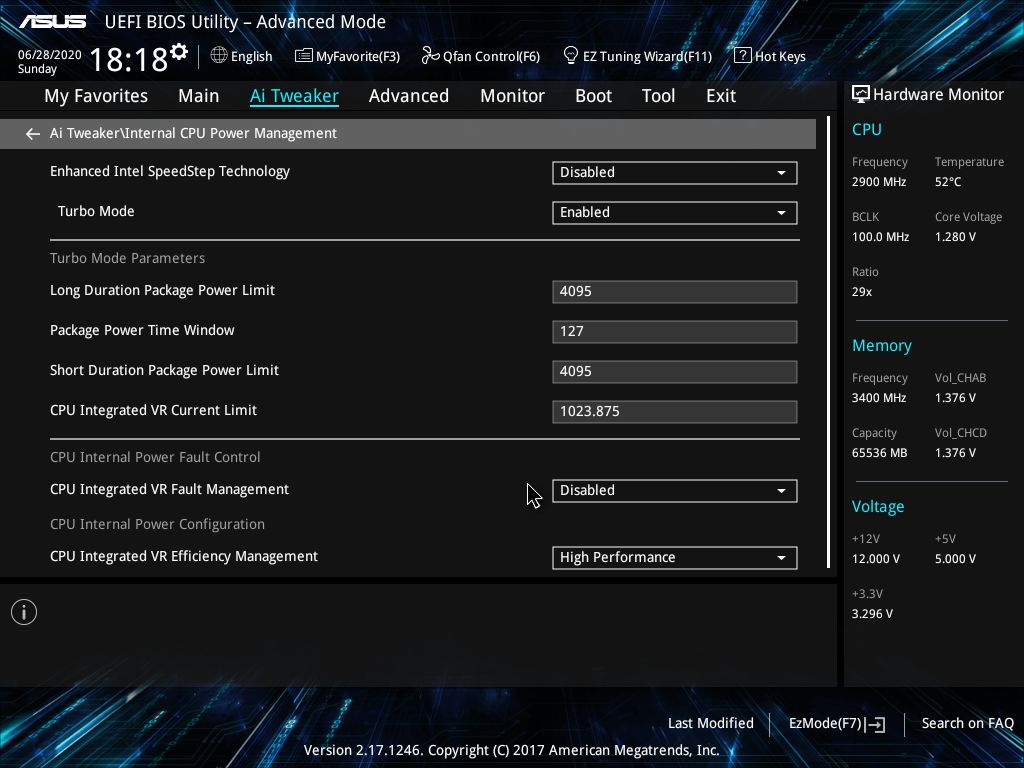

Enhanced Intel SpeedStep Technology [Disabled]
Turbo Mode [Enabled]
Long Duration Package Power Limit [4095]
Package Power Time Window [127]
Short Duration Package Power Limit [4095]
CPU Integrated VR Current Limit [1023.875]
CPU Integrated VR Fault Management [Disabled]
CPU Integrated VR Efficiency Management [High Performance]
Thermal Monitor [Enabled]
Active Processor Cores [All]
Intel Virtualization Technology [Disabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Boot performance mode [Auto]
SW Guard Extensions (SGX) [Software Controlled]
Tcc Offset Time Window [Auto]
SMM MSR Save State Enable [Disabled]
SMM Code Access Check [Disabled]
SMM Use Delay Indication [Disabled]
SMM Use Block Indication [Disabled]
SMM Use SMM en-US Indication [Disabled]
Intel(R) SpeedStep(tm) [Auto]
Turbo Mode [Enabled]
CPU C-states [Auto]
Enhanced C-states [Enabled]
CPU C3 Report [Enabled]
CPU C6 Report [Enabled]
CPU C7 Report [CPU C7s]
CPU C8 Report [Enabled]
Package C State Limit [Auto]
CFG Lock [Disabled]
Intel(R) Speed Shift Technology [Enabled]
Number of P states [0]
Acoustic Noise Mitigation [Disabled]
Disable Fast PKG C State Ramp for IA Domain [FALSE]
Slow Slew Rate for IA Domain [Fast/2]
Disable Fast PKG C State Ramp for GT Domain [FALSE]
Slow Slew Rate for GT Domain [Fast/2]
Disable Fast PKG C State Ramp for SA Domain [FALSE]
Slow Slew Rate for SA Domain [Fast/2]
Configurable TDP Boot Mode [Nominal]
Configurable TDP Lock [Disabled]
CTDP BIOS control [Disabled]
Power Limit 1 [0]
Power Limit 2 [0]
Power Limit 1 Time Window [0]
ConfigTDP Turbo Activation Ratio [0]
Power Limit 1 [0]
Power Limit 2 [0]
Power Limit 1 Time Window [0]
ConfigTDP Turbo Activation Ratio [0]
Power Limit 1 [0]
Power Limit 2 [0]
Power Limit 1 Time Window [0]
ConfigTDP Turbo Activation Ratio [0]
Overclocking Lock [Disabled]
Hyper-Threading [ALL] [Disabled]
Max CPUID Value Limit [Disabled]
Execute Disable Bit [Disabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Prefetch [Enabled]
VMX [Disabled]
Boot performance mode [Max Performance]
Maximum CPU Core Temperature [Auto]
Active Processor Core 0 [Enabled]
Active Processor Core 1 [Enabled]
Active Processor Core 2 [Enabled]
Active Processor Core 3 [Enabled]
Active Processor Core 4 [Enabled]
Active Processor Core 5 [Enabled]
Active Processor Core 6 [Enabled]
Active Processor Core 7 [Enabled]
Active Processor Core 8 [Enabled]
Active Processor Core 9 [Enabled]
Active Processor Core 10 [Enabled]
Active Processor Core 11 [Enabled]

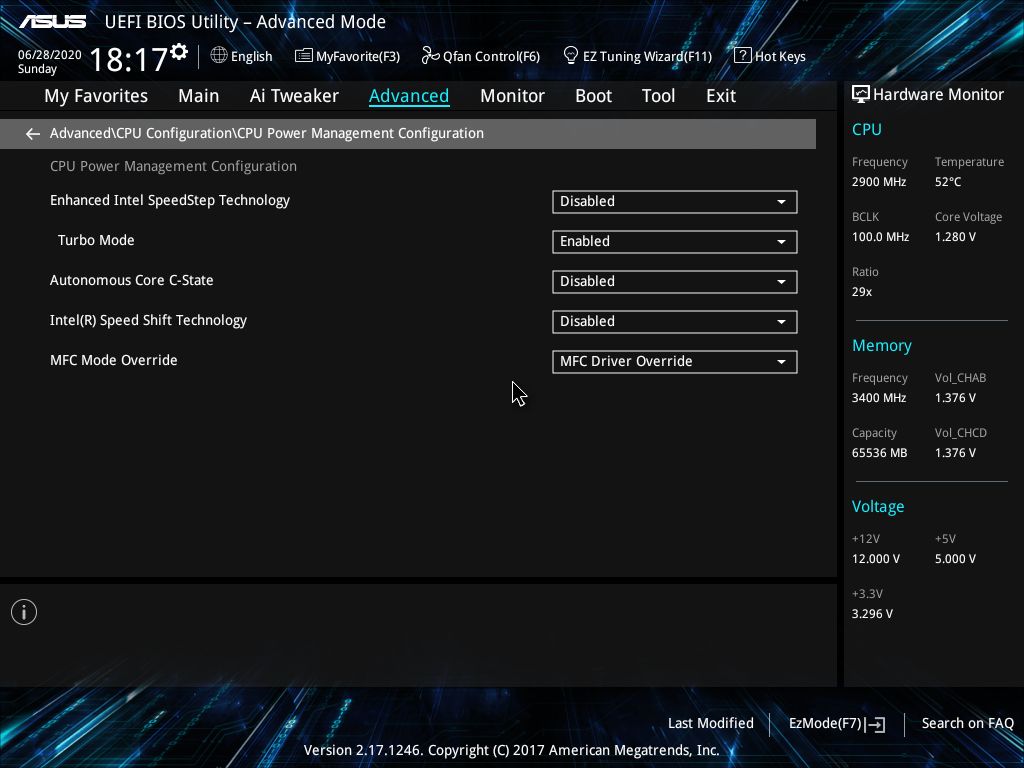

Enhanced Intel SpeedStep Technology [Disabled]
Turbo Mode [Enabled]
Autonomous Core C-State [Disabled]
Intel(R) Speed Shift Technology [Disabled]
MFC Mode Override [MFC Driver Override]
PCI Express Native Power Management [Disabled]
PCH DMI ASPM [Disabled]
ASPM [Disabled]
DMI Link ASPM Control [Disabled]
PEG - ASPM [Disabled]
PTID Support [Enabled]
PECI Access Method [Direct I/O]
PCI Express Native Power Management [Disabled]
BDAT ACPI Table Support [Disabled]
Wake system from S5 [Disabled]
Low Power S0 Idle Capability [Disabled]
Lpit Recidency Counter [SLP S0]
PCI Delay Optimization [Disabled]
ZpODD Support [Disabled]
PEP CPU [Enabled]
PEP Graphics [Enabled]
PEP SATA [Storage Controller]
PEP UART [Enabled]
PEP I2C0 [Enabled]
PEP I2C1 [Enabled]
PEP I2C2 [Enabled]
PEP I2C3 [Enabled]
PEP I2C4 [Enabled]
PEP I2C5 [Enabled]
PEP SPI [Enabled]
PEP XHCI [Enabled]
PEP Audio [Enabled]
PEP EMMC [Enabled]
PEP SDXC [Enabled]
Intel® VT for Directed I/O (VT-d) [Disabled]
MCTP [Disabled]
ACS Control [Disabled]
Link Speed [Gen 3 (8 GT/s)]
VDOC Profile requested [VDOC Profile 0]
Frequency divider ratio (Step size) [Step size - 100 KHz]
Number of steps [1000]
Number of steps [1000]
Number of steps [1000]
Number of steps [1000]
Frequency divider ratio (Step size) [Step size - 100 KHz]
Number of steps [1000]
Number of steps [1000]
Number of steps [1000]
Number of steps [1000]
VT-d [Disabled]
Primary Display [Auto]
RC6(Render Standby) [Enabled]
DVMT Pre-Allocated [32M]
DMI Max Link Speed [Auto]
PCIe Speed [Gen 3 (8 GT/s)]
SATA Controller(s) [Enabled]
SATA Mode Selection [Intel RST Premium(RAID)]
M.2_2 PCIE Storage RAID Support [Disabled]
S.M.A.R.T. Status Check [Enabled]
Aggressive LPM Support [Disabled]
SATA6G_1 [Enabled]
Hot Plug [Disabled]
SATA6G_2 [Enabled]
Hot Plug [Disabled]
SATA6G_3 [Enabled]
Hot Plug [Disabled]
SATA6G_4 [Enabled]
Hot Plug [Disabled]
SATA6G_5 [Enabled]
Hot Plug [Disabled]
SATA6G_6 [Enabled]
Hot Plug [Disabled]
SATA6G_7 [Enabled]
Hot Plug [Disabled]
SATA6G_8 [Enabled]
Hot Plug [Disabled]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
Spin Up Device [Disabled]
SATA Device Type [Hard Disk Drive]
Topology [Unknown]
DITO Configuration [Disabled]
DITO Value [625]
DM Value [15]
PCI Express Root Port 21 [Enabled]
Topology [Unknown]
ASPM [Auto]
L1 Substates [L1.1 & L1.2]
Gen3 Eq Phase3 Method [Software Search]
UPTP [5]
DPTP [7]
ACS [Enabled]
URR [Disabled]
FER [Disabled]
NFER [Disabled]
CER [Disabled]
CTO [Disabled]
SEFE [Disabled]
SENFE [Disabled]
SECE [Disabled]
PME SCI [Enabled]
Hot Plug [Disabled]
Advanced Error Reporting [Enabled]
PCIe Speed [Auto]
Transmitter Half Swing [Disabled]
Detect Timeout [0]
Extra Bus Reserved [0]
Reserved Memory [10]
Reserved I/O [4]
PCH PCIE21 LTR [Enabled]
Snoop Latency Override [Auto]
Non Snoop Latency Override [Auto]
Force LTR Override [Disabled]
PCIE21 LTR Lock [Disabled]
PCIE20 CLKREQ Mapping Override [Default]
PCI Express Root Port 22 [Enabled]
Topology [Unknown]
ASPM [Auto]
L1 Substates [L1.1 & L1.2]
Gen3 Eq Phase3 Method [Software Search]
UPTP [5]
DPTP [7]
ACS [Enabled]
URR [Disabled]
FER [Disabled]
NFER [Disabled]
CER [Disabled]
CTO [Disabled]
SEFE [Disabled]
SENFE [Disabled]
SECE [Disabled]
PME SCI [Enabled]
Hot Plug [Disabled]
Advanced Error Reporting [Enabled]
PCIe Speed [Auto]
Transmitter Half Swing [Disabled]
Detect Timeout [0]
Extra Bus Reserved [0]
Reserved Memory [10]
Reserved I/O [4]
PCH PCIE22 LTR [Enabled]
Snoop Latency Override [Auto]
Non Snoop Latency Override [Auto]
Force LTR Override [Disabled]
PCIE22 LTR Lock [Disabled]
PCIE20 CLKREQ Mapping Override [Default]
PCI Express Root Port 23 [Enabled]
Topology [Unknown]
ASPM [Auto]
L1 Substates [L1.1 & L1.2]
Gen3 Eq Phase3 Method [Software Search]
UPTP [5]
DPTP [7]
ACS [Enabled]
URR [Disabled]
FER [Disabled]
NFER [Disabled]
CER [Disabled]
CTO [Disabled]
SEFE [Disabled]
SENFE [Disabled]
SECE [Disabled]
PME SCI [Enabled]
Hot Plug [Disabled]
Advanced Error Reporting [Enabled]
PCIe Speed [Auto]
Transmitter Half Swing [Disabled]
Detect Timeout [0]
Extra Bus Reserved [0]
Reserved Memory [10]
Reserved I/O [4]
PCH PCIE23 LTR [Enabled]
Snoop Latency Override [Auto]
Non Snoop Latency Override [Auto]
Force LTR Override [Disabled]
PCIE23 LTR Lock [Disabled]
PCIE20 CLKREQ Mapping Override [Default]
PCI Express Root Port 24 [Enabled]
Topology [Unknown]
ASPM [Auto]
L1 Substates [L1.1 & L1.2]
Gen3 Eq Phase3 Method [Software Search]
UPTP [5]
DPTP [7]
ACS [Enabled]
URR [Disabled]
FER [Disabled]
NFER [Disabled]
CER [Disabled]
CTO [Disabled]
SEFE [Disabled]
SENFE [Disabled]
SECE [Disabled]
PME SCI [Enabled]
Hot Plug [Disabled]
Advanced Error Reporting [Enabled]
PCIe Speed [Auto]
Transmitter Half Swing [Disabled]
Detect Timeout [0]
Extra Bus Reserved [0]
Reserved Memory [10]
Reserved I/O [4]
PCH PCIE24 LTR [Enabled]
Snoop Latency Override [Auto]
Non Snoop Latency Override [Auto]
Force LTR Override [Disabled]
PCIE24 LTR Lock [Disabled]
PCIE20 CLKREQ Mapping Override [Default]
HD Audio Controller [Enabled]
HDA-Link Codec Select [Platform Onboard]
iDisplay Audio Disconnect [Disabled]
PME Enable [Disabled]
SPI0 Controller [Disabled]
SPI1 Controller [Disabled]
UART0 Controller [Disabled]
UART1 Controller [Disabled]
UART2 Controller [for debug only]
GPIO Controller [Disabled]
Additional Serial IO devices [Disabled]
SerialIO timing parameters [Disabled]
I2C IO Voltage Select [3.3V]
Connected device [Disabled]
I2C IO Voltage Select [3.3V]
Connected device [Disabled]
I2C IO Voltage Select [1.8V]
I2C IO Voltage Select [1.8V]
I2C IO Voltage Select [3.3V]
I2C IO Voltage Select [3.3V]
ChipSelect polarity [Active High]
Finger Print Sensor [Disabled]
Bluetooth Device [Disabled]
Wireless Charging Mode [WC Disabled]
Hardware Flow Control [Enabled]
Hardware Flow Control [Enabled]
Hardware Flow Control [Enabled]
GPIO IRQ Route [IRQ14]
Select Camera [Ivcam]
Delay needed for Ivcam power on [0]
Delay needed for Ivcam power off [0]
Rotation [0]
DFU support [Disabled]
Wake support [Disabled]
Vcc Core voltage override enable [Disabled]
Vcc Core voltage [1300]
Vcc SA voltage override enable [Disabled]
Vcc SA voltage [1050]
Vcc SFR voltage override enable [Disabled]
Vcc SFR voltage [1200]
Vcc IO voltage override enable [Disabled]
Vcc IO voltage [950]
Vcc SFR Vin voltage override enable [Disabled]
Vcc SFR Vin voltage [1000]
Vcc ST SFR Vin voltage override enable [Disabled]
Vcc ST SFR Vin voltage [1000]
ASF support [Enabled]
USB Provisioning of AMT [Disabled]
Activate Remote Assistance Process [Disabled]
CIRA Timeout [0]
PET Progress [Enabled]
WatchDog [Disabled]
OS Timer [0]
BIOS Timer [0]
Secure Erase mode [Simulated]
Force Secure Erase [Disabled]
MEBx hotkey Pressed [Disabled]
MEBx Selection Screen [Disabled]
Hide Unconfigure ME Confirmation Prompt [Disabled]
MEBx OEM Debug Menu Enable [Disabled]
Unconfigure ME [Disabled]
Non-UI Mode Resolution [Auto]
UI Mode Resolution [Auto]
Graphics Mode Resolution [Auto]
Security Device Support [Enable]
Security Device Support [Enable]
SHA-1 PCR Bank [Enabled]
SHA256 PCR Bank [Enabled]
Pending operation [None]
Platform Hierarchy [Enabled]
Storage Hierarchy [Enabled]
Endorsement Hierarchy [Enabled]
TPM2.0 UEFI Spec Version [TCG_2]
Physical Presence Spec Version [1.3]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
Detect Non-Compliance Device [Disabled]
Prefetchable Memory [10]
Reserved Memory Alignment [1]
Prefetchable Memory Alignment [1]
PCIEX16_1 to PCIEX16_3 VROC Support [Disabled]
PCIEX16_4 to PCIEX16_7 VROC Support [Disabled]
U.2_1 VROC Support [Enable]
U.2_2 VROC Support [Enable]
M.2_1 VROC Support [Disabled]
ErP Ready [Disabled]
Restore AC Power Loss [Power Off]
Power On By PCI-E/PCI [Disabled]
Power On By RTC [Disabled]
HD Audio Controller [Enabled]
Q-Code Display [Enabled]
Asmedia Back 1A/1C USB 3.1 Gen2 Controller [Enabled]
USB Type C Power Switch [Auto]
Asmedia Front 1C USB 3.1 Gen2 Controller [Enabled]
When system is in working state [On]
When system is in sleep, hibernate or soft off states [On]
Intel LAN1 Controller [Enabled]
Intel LAN1 PXE Option ROM [Disabled]
Intel LAN2 Controller [Enabled]
Intel LAN2 PXE Option ROM [Disabled]
Serial Port [Enabled]
Change Settings [IO=3F8h; IRQ=4]
Detect Non-Compliance Device [Disabled]
Primary PEG [Auto]
Primary PCIE [Auto]
Network Stack [Disabled]
Legacy USB Support [Enabled]
USB Mass Storage Driver Support [Enabled]
USB Keyboard and Mouse Simulator [Disabled]
Generic Flash Disk 8.07 [Auto]
U31G2_EC1 [Enabled]
U31G2_E2 [Enabled]
U31G2_E3 [Enabled]
U31G1_1 [Enabled]
U31G1_2 [Enabled]
U31G1_3 [Enabled]
U31G1_4 [Enabled]
U31G1_5 [Enabled]
U31G1_6 [Enabled]
U31G1_7 [Enabled]
U31G1_8 [Enabled]
USB_9 [Enabled]
USB_10 [Enabled]
USB_11 [Enabled]
USB_12 [Enabled]
TBT Root port Selector [Thunderbolt Disabled]
PTT [Disable]
PTP aware OS [PTP Aware]
Me FW Image Re-Flash [Disabled]
Local FW Update [Enabled]
HECI Timeouts [Enabled]
Force ME DID Init Status [Disabled]
Disable CPU Replaced Polling [Disabled]
ME DID Message [Enabled]
HECI Retry Disable [Disabled]
HECI Message check Disable [Disabled]
MBP HOB Skip [Disabled]
HECI2 Interface Communication [Disabled]
KT Device [Enabled]
IDER Device [Enabled]
End Of Post Message [Send in DXE]
D0I3 Setting for HECI Disable [Disabled]
CPU Temperature [Monitor]
MotherBoard Temperature [Monitor]
VRM Temperature [Monitor]
PCH Temperature [Monitor]
T_Sensor Temperature [Monitor]
EXT_Sensor1 Temperature [Monitor]
EXT_Sensor2 Temperature [Monitor]
EXT_Sensor3 Temperature [Monitor]
CPU Fan Speed [Monitor]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
M.2 fan Speed [Monitor]
Water Pump+ Speed [Monitor]
AIO Pump Speed [Monitor]
Extension Fan 1 Speed [Monitor]
Extension Fan 2 Speed [Monitor]
Extension Fan 3 Speed [Monitor]
CPU Core Voltage [Monitor]
3.3V Voltage [Monitor]
5V Voltage [Monitor]
12V Voltage [Monitor]
Chassis Intrusion Detection Support [Disabled]
CPU Temperature LED Switch [Enabled]
CPU Q-Fan Control [Auto]
CPU Fan Step Up [0 sec]
CPU Fan Step Down [0 sec]
CPU Fan Speed Lower Limit [200 RPM]
CPU Fan Profile [Manual]
CPU Upper Temperature [60]
CPU Fan Max. Duty Cycle (%) [100]
CPU Middle Temperature [50]
CPU Fan Middle. Duty Cycle (%) [30]
CPU Lower Temperature [39]
CPU Fan Min. Duty Cycle (%) [20]
Water Pump+ Control [Auto]
Water Pump+ Q-Fan Source [CPU]
Water Pump+ Upper Temperature [70]
Water Pump+ Max. Duty Cycle (%) [100]
Water Pump+ Middle Temperature [60]
Water Pump+ Middle. Duty Cycle (%) [100]
Water Pump+ Lower Temperature [50]
Water Pump+ Min. Duty Cycle (%) [100]
AIO Pump Control [Auto]
AIO_PUMP Q-Fan Source [CPU]
AIO Pump Upper Temperature [70]
AIO Pump Max. Duty Cycle (%) [100]
AIO Pump Middle Temperature [60]
AIO Pump Middle. Duty Cycle(%) [100]
AIO Pump Lower Temperature [50]
AIO Pump Min. Duty Cycle (%) [100]
Chassis Fan 1 Q-Fan Control [Auto]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Step Up [0 sec]
Chassis Fan 1 Step Down [0 sec]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 1 Profile [Standard]
Chassis Fan 2 Q-Fan Control [Auto]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Step Up [0 sec]
Chassis Fan 2 Step Down [0 sec]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 2 Profile [Standard]
M.2 Fan Control [Auto]
M.2 Fan Q-Fan Source [CPU]
M.2 fan Step Up [0 sec]
M.2 fan Step Down [0 sec]
M.2 fan Speed Low Limit [200 RPM]
M.2 Fan Profile [Standard]
Extension Fan 1 Q-Fan Control [DC Mode]
Extension Fan 1 Q-Fan Source [CPU]
Extension Fan 1 Speed Low Limit [200 RPM]
Extension Fan 1 Profile [Standard]
Extension Fan 2 Q-Fan Control [DC Mode]
Extension Fan 2 Q-Fan Source [CPU]
Extension Fan 2 Speed Low Limit [200 RPM]
Extension Fan 2 Profile [Standard]
Extension Fan 3 Q-Fan Control [DC Mode]
Extension Fan 3 Q-Fan Source [CPU]
Extension Fan 3 Speed Low Limit [200 RPM]
Extension Fan 3 Profile [Standard]
Fast Boot [Disabled]
Above 4G Decoding [Enabled]
Boot Logo Display [Auto]
POST Delay Time [4 sec]
Boot up NumLock State [Enabled]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Enabled]
Interrupt 19 Capture [Enabled]
Setup Mode [Advanced Mode]
Launch CSM [Enabled]
Boot Device Control [UEFI and Legacy OPROM]
Boot from Network Devices [Ignore]
Boot from Storage Devices [UEFI driver first]
Boot from PCI-E/PCI Expansion Devices [UEFI driver first]
OS Type [Other OS]
Setup Animator [Disabled]
Load from Profile [8]
Profile Name [NoHT_stable5`0]
Save to Profile [8]
Bus Interface [PCIEX16_5]
