gerbert3

Добавлено: 12.01.2014 22:23

[профиль]

Junior
Статус: Не в сети
Регистрация: 12.01.2014

#77 F.A.Q. здесь! #77

В F.A.Q., в том числе, есть ответы на вопросы о модификации BIOS (в т.ч. списки модов), температуре (очень низкой и очень высокой), совместимых и несовместимых платах и пр.

Убедительная просьба, прячьте все (любые) картинки и видео под спойлеры [spoiler =][/ spoiler]. Уважайте друг друга!
Не у всех Интернет безлимитный и многие смотрят эту тему через телефон.

Господа, за "ламповые" беседы с унылым ботом sarge8383 будет выписываться бан от 1 суток.

старый текст поста

Всем привет.
Хочу расказать вам (не без определенного денежного интереса), что есть путь взять практически любой ксеон (1333) и поставить его на плату LGA775.
Главное чтобы она поддерживала квадкоры (смотрим в спецификациях).
Все что нужно сделать это чуток подрезать плату как рассказано тут:

https://www.youtube.com/watch?v=kPBbpSgUXkw
И сделать самому или купить переходник, который перекидывает два пина на процессоре:
https://www.youtube.com/watch?v=NX48ERjMWws
Результат выглядит вот так:
https://www.youtube.com/watch?v=T9mA7J_YSZs
Весьма и весьма впечатляет.
Итого за 60$ можно заиметь неплохой Х5460 на вашей плате с ЛГА775 ))
Лично у меня стоит L5430.
У меня он встал без всяких прописываний кодов в биосе и прочих проблем.
Я прогнал инстеловский тест для процессоров просто убедиться что все что есть работеает ОК.
У меня есть куча таких адаптеров, которые я продаю на ибее (у меня там такой же ник как и на форуме) а так же могу продать за вебмани в России.
Письмо с адаптером посылаю из Израиля. До Москвы доходит за неделю (вроде как), ну а если вы живете где-то подальше, то дольше конечно.

Повторяю - адаптер не обязательно покупать, можно сделать и самому.

За адаптер + пересылку прошу 10$.

Интересно будет послушать мнение людей по поводу разгона таких процессоров (стоит ли вообще).
Спасибо.

Последний раз редактировалось Igor-Igor 27.05.2016 10:31, всего редактировалось 17 раз(а).

Реклама
Партнер

Dr.Freezer

Добавлено: 18.01.2017 23:02

[профиль]

Junior
Статус: Не в сети
Регистрация: 13.12.2010

DeathBringer
Нет, прошит модифицированный с ideafix, все инструкции и динамический множитель имеются.

Так же имеется е5420, который плата при разгоне до 400 шины держит в 3Ггц, насколько есть смысл ставить его,а не x5460?

alees

Добавлено: 18.01.2017 23:37

[профиль]

Junior
Статус: Не в сети
Регистрация: 14.01.2017

DeathBringer

DeathBringer писал(а):

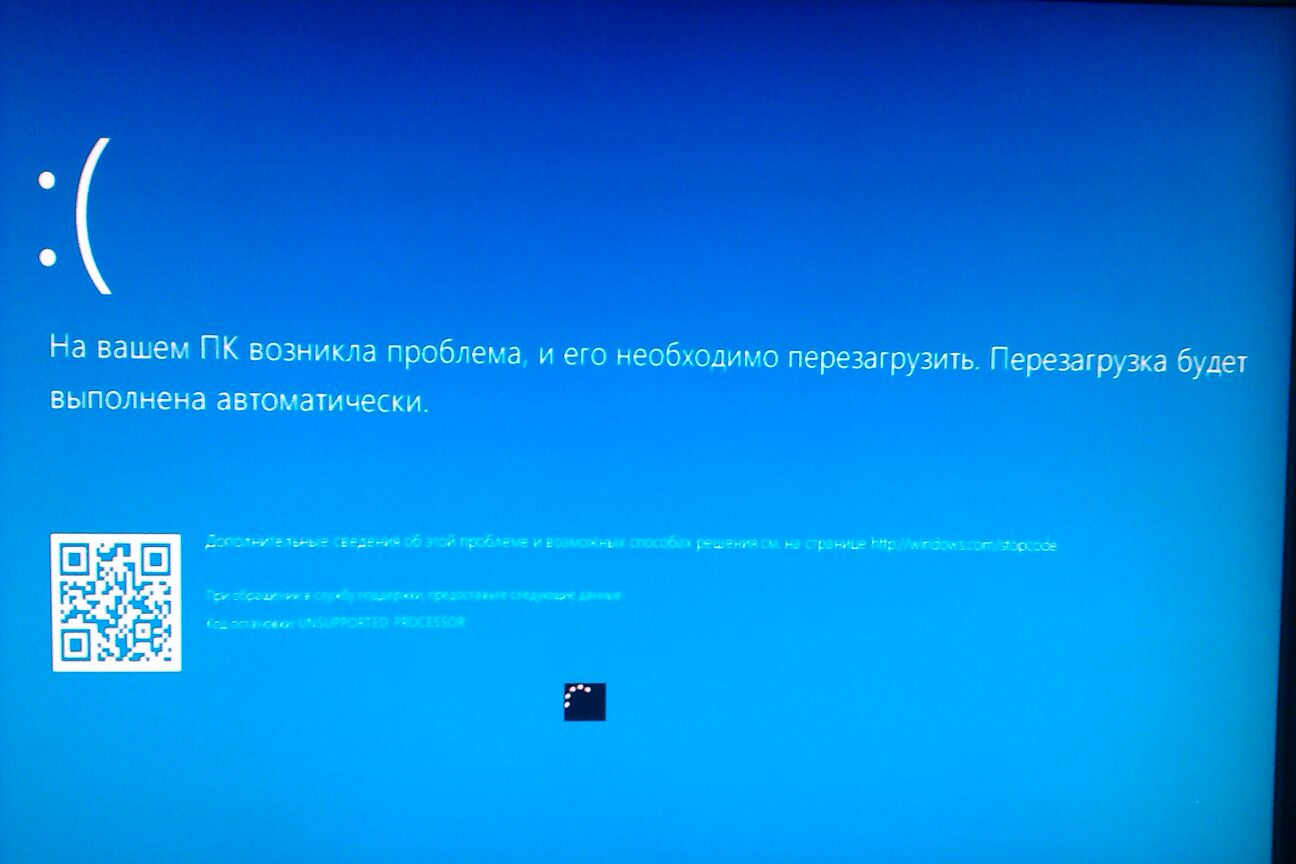

Фото такого экрана покажите.

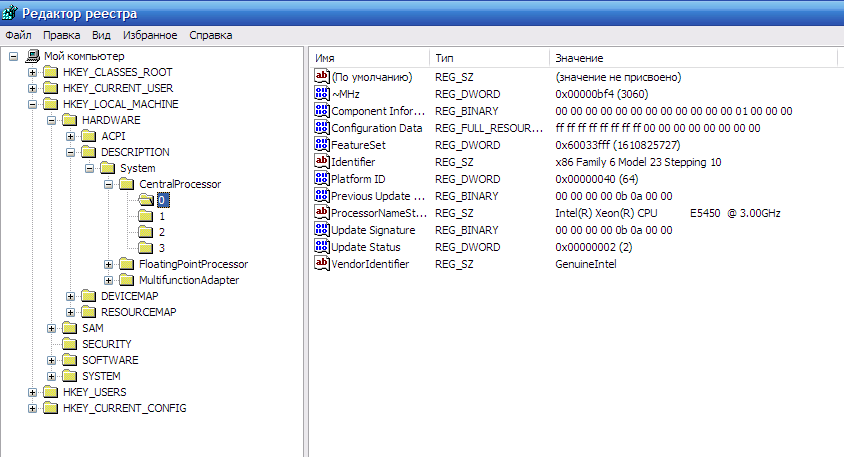

Вложение:

IMG-20170118-WA0000.jpg [ 75.2 КБ | Просмотров: 2169 ]

DeathBringer писал(а):

alees писал(а):
Переставил все модифицированные биосы ...- результат нулевой.
Что это значит?

На данный момент испробовал все прошивки биоса для abit ip35, содержащие микрокоды для ксеонов (со слов авторов, конечно), в том числе и от ideafix.
Сейчас установлена 18_бета_модифицированная (от ideafix).

CPU-Z TXT Report

-------------------------------------------------------------------------

Binaries
-------------------------------------------------------------------------

CPU-Z version 1.78.1.x32

Processors
-------------------------------------------------------------------------

Number of processors 1
Number of threads 4

APICs
-------------------------------------------------------------------------

Processor 0
-- Core 0
-- Thread 0 0
-- Core 3
-- Thread 0 3
-- Core 2
-- Thread 0 2
-- Core 1
-- Thread 0 1

Timers
-------------------------------------------------------------------------

ACPI timer 3.580 MHz
Perf timer 3060.050 MHz
Sys timer 1.000 KHz

Processors Information
-------------------------------------------------------------------------

Processor 1 ID = 0
Number of cores 4 (max 4)
Number of threads 4 (max 4)
Name Intel Xeon E5450
Codename Harpertown
Specification Intel(R) Xeon(R) CPU E5450 @ 3.00GHz
Package (platform ID) Socket 771 LGA (0x6)
CPUID 6.7.A
Extended CPUID 6.17
Core Stepping E0
Technology 45 nm
Core Speed 3060.2 MHz
Multiplier x Bus Speed 9.0 x 340.0 MHz
Rated Bus speed 1360.1 MHz
Stock frequency 3000 MHz
Instructions sets MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, EM64T, VT-x
L1 Data cache 4 x 32 KBytes, 8-way set associative, 64-byte line size
L1 Instruction cache 4 x 32 KBytes, 8-way set associative, 64-byte line size
L2 cache 2 x 6144 KBytes, 24-way set associative, 64-byte line size
Max CPUID level 0000000Dh
Max CPUID ext. level 80000008h
Cache descriptor Level 1, D, 32 KB, 1 thread(s)
Cache descriptor Level 1, I, 32 KB, 1 thread(s)
Cache descriptor Level 2, U, 6 MB, 2 thread(s)
FID/VID Control yes
FID range 6.0x - 9.0x
Max VID 1.225 V

Temperature 0 47 degC (116 degF) (Core #0)
Temperature 1 43 degC (109 degF) (Core #3)
Temperature 2 47 degC (116 degF) (Core #2)
Temperature 3 40 degC (103 degF) (Core #1)
Clock Speed 0 3060.19 MHz (Core #0)
Clock Speed 1 3060.19 MHz (Core #3)
Clock Speed 2 3060.19 MHz (Core #2)
Clock Speed 3 3060.19 MHz (Core #1)
