Перечень GTX1070, GTX1070 Ti, GTX1080 от techpowerup.com
Cписок видеокарт с перечислением количества фаз, коннекторов питания и частот
Большая сравнительная таблица видеокарт (база данных актуальных настольных графических процессоров) от tomshardware
GTX 1070 Overclocking Review от Overclockersclub.com
Процессорозависимость 1070 и 1080
Интересные видео про фазы питания (VRM): Теория с примерами, какую GeForce GTX 1080\GTX1070 выбрать?

Added GPU Boost 3.0 technology support for NVIDIA Pascal graphics cards:
Added percent based overvoltage support.

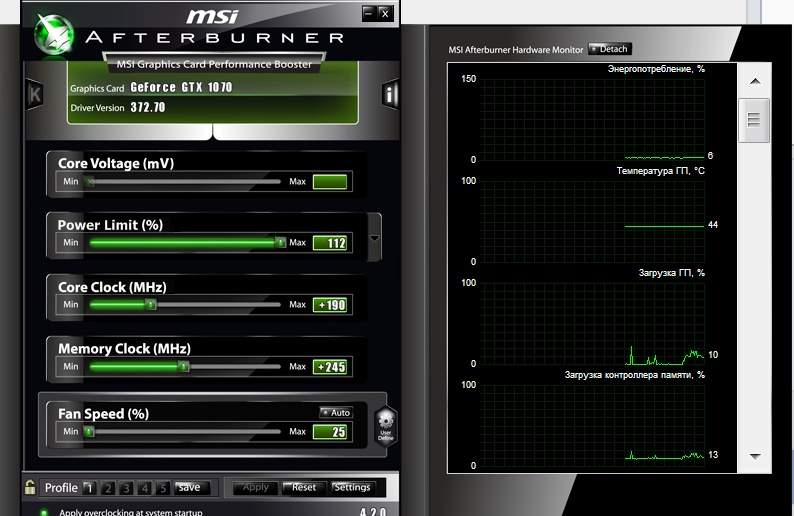

Added voltage/frequency curve customization support. You may use traditional core clock slider on NVIDIA GeForce GTX 1070 and 1080 graphics cards to apply fixed offset to all voltage/frequency curve points as well as use brand new flexible voltage/frequency curve editor window for more precise per-point curve adjustment. The editor window can be activated either with <Voltage/frequency curve editor> button in the main application window or with <Ctrl> + <F> keyboard shortcut and it provides you the following features:  You may independently adjust clock frequency offset for each point with mouse cursor or <Up> / <Down> keys
You may hold <Ctrl> key to set anchor and fix clock frequency offset in minimum/maximum voltage point and adjust the offset of any other point with mouse to linearly interpolate the offsets between the anchor and adjustment points
You may hold <Shift> key while adjusting the offset of any point with mouse to apply the same fixed offset to all points. That’s equal to adjusting the offset with the slider in main application window.
You may press <Ctrl> + <D> to reset offsets for all points  You may switch between traditional core clock control slider in the main window and voltage/frequency curve editor window to see how they affect each other in real-time
You may press <L> after selecting any point on the curve with mouse cursor to disable GPU dynamic voltage/frequency adjustment and lock the voltage and core clock frequency to a state defined by the target point. This feature allows you to test graphics card stability independently for each voltage/frequency point of the curve using real 3D applications or any stress test of your choice. In addition to stability testing usage scenario, MSI Afterburner allows you to save a curve with locked point setting to a profile, so you may easily switch between dynamic voltage/frequency management and fixed voltage/frequency settings in realtime (e.g. to achieve the maximum performance during benchmarking). Please take a note that fixed voltage and frequency settings do not allow you to disable power and thermal throttling
Increased default maximum limits for “Core clock”, “Memory clock” and “Memory usage” graphs to improve graphs readability on NVIDIA Pascal series graphics cards
Added configuration file switch, allowing you to toggle the source for “Power” graph on NVIDIA graphics cards. Normalized total power draw (i.e. normalized value from multiple power sensors installed on the graphics card) is selected by default per NVIDIA recommendation, however you can configure MSI Afterburner to display power draw from GPU sensor only
Improved representation of performance limits graphs for NVIDIA graphics cards per NVIDIA recommendations:
“Voltage limit” and “OV max limit” graphs have been merged into single “Voltage limit” graph
“Utilization limit” graph has been renamed to “No load limit” graph
“SLI sync” graph is now hidden on the systems with single NVIDIA GPU
Improved representation of performance limits graphs in On-Screen Display or in Logitech keyboard LCD. Now the names or currently triggered performance limits are being displayed in On-Screen Display or in Logitech keyboard LCD instead of previously used binary limits representation form
Added uP1816 voltage regulators support to provide compatibility with future custom design MSI graphics cards
Improved validation and handling of erroneous data reported after TDR or during runtime driver installation on NVIDIA graphics cards
Improved clock monitoring on GPU Boost 2.0 NVIDIA graphics cards after dynamic uninstallation/reinstallation of display driver during MSI Afterburner runtime
Added detection of runtime driver installation on NVIDIA graphics cards. Now MSI Afterburner is periodically checking the presence of NVIDIA driver and displaying notification message informing you that the connection with GPU is lost when the driver is being dynamically uninstalled during MSI Afterburner runtime
