Чтение с модуля памяти у DDR4 происходит блоками. Минимальный блок сейчас составляет 64 байта, что связано с размером строки кэша у процессора. Этот блок может считываться как с одного банка, так и с разных.
tRAS=tRCD+tRTP (при считывании 8 байт с одного банка)
tRAS=tRCD+tRTP+4 (при считывании 16 байт с одного банка)
tRAS=tRCD+tRTP+8 (считывание 24 байт - маловероятно)
tRAS=tRCD+tRTP+12 (при считывании 32 байт с одного банка). Самый верный выбор для DDR4!
tRAS=tRCD+tRTP+16 (считывание 40 байт - маловероятно)
tRAS=tRCD+tRTP+20 (считывание 48 байт - маловероятно)
tRAS=tRCD+tRTP+24 (считывание 56 байт - маловероятно)
tRAS=tRCD+tRTP+28 (при считывании 64 байт с одного банка)
Для DDR4 оптимальным выбором является 4-й или последний вариант.
Но если выставить tRAS меньше, то ничего трагичного не произойдет, так как джедек придумала предохранитель (tRTP), поэтому можно не заморачиваться и выставлять минимальный tRAS (=tRCD+tRTP).

SA- безопасный уровень (по данным MSI) 1.35, растет от частоты памяти и зависит от подключенной периферии к PCIE, чем больше скорость видеокарты и NVME-диска, тем выше нужно напряжение.
IO (для Z590 =IO2, а просто IO можно оставлять в авто, для Z690=IVR DDQ)- обычно хорошо работает если на 50 мВ ниже SA, но чем ниже, тем лучше, стараться максимально снижать.
Тоже растет с ростом частоты памяти.
Для ориентира при настройке всегда рекомендую глянуть, что за напряжения SA и IO выставляет материнка в авто.

Универсальный гайд.
0. Устраните любые потенциальные проблемы с другим железом. Снимите разгон с видеокарты, снизьте частоту цп на 300 с сохранением напряжения. Не забудьте вернуть RTL в авто если сейчас не авто.
1. Крутим очень короткий мемтест, то есть если минуту живёт сразу снижать тайминг дальше. Ищите не стабильность, а явно сбойное значение тайминга, запишите его - пригодится. Гораздо проще найти явно нерабочее значение и от него плясать чем пытаться ловить нестабильность часами. Это также помогает диагностировать сбойные тайминги на ранее "стабильной памяти".
Не пытайтесь найти предельные значение сразу. Сначала скрутите до +2 от минимально стабильного. Многие тайминги идут параллельно поэтому бессмысленно пытаться скрутить до упора с первого прохода.
CR выставить на 2 если стоит 1. В самом конце можно попробовать скинуть до 1. 3 Ставить только на очень большую частоту или если по другому ну совсем никак.

Начните с RCD, CL. Не обязательно должны быть одинаковыми, обычно CL идёт меньше чем RCD.
RAS сразу пробуйте как RCD+CL+4, до этого значения от него существенная разница, дальше меньше.
CWL<=CL. Допустимые значения 9,10,11,12,14,16,18,20.
RP можете выставить по RCD, если пойдёт меньше - тоже неплохо, не уверен правда насчёт смысла.
RTP без формул. Если не идёт вниз можно попробовать поднять чуть чуть RP. В DDR4 явно связан с WR соотношением 2 к 1 (например WR20\RTP10), физически хранится одно значения и в зависимости от операции интерпретируется.
Скрутите FAW до 16(так и оставьте если работает). С таким FAW скручивайте RRD(оба, L обычно больше чем S), возможно поедут на 4 оба. Если до 4 не удалось спустить поднимите FAW до уровня RRDL*4 и попробуйте ещё, хотя это скорее всего уже почти предел.
Обычно L>=S. L - SG(Same Group). S - DG(Different Group) Напр. RRD_L>=RRD_S.
CKE=5
СCDL>=4
RDRD_DD и прочие подобные можно проигнорировать если у вас нет двух планок на один канал (4 планки). DD-Different Dimm. Тоже самое с DR-Different Rank если у вас одноранговая память.
RDWR_SG(DG) и подобные сочетания скручивайте до минимальных рабочих, потом накиньте сверху +2. Как уже отметил обычно SG>=DG.
WTR не трогайте он сам спустится когда будете скидывать WRRD_SG(DG) и прочие подобные. Если сам меньше не стал тогда руками скидывать.
WR снижать через WRPRE если есть. Если нет или не снижает WR, То скрутите его скажем до 12 или +4 от рабочего, потом дожмёте если не лень будет.
RFC явных формул нет, крутить после всего списка сверху. Не пытайтесь найти его минимальное значение если не хотите чтобы память начинала сыпать ошибками от любого чиха. найдите пограничное со стабильностью значение и накиньте сверху 20 или сразу 40. Может реагировать на RAS+RP, RRD, FAW, причём в обе стороны (то есть может "сломаться" если задрать названные), а может и не реагировать...
REFi больше лучше. Связан с RFC. REFI сколько память "работает" - RFC сколько "отдыхает". Оба тайминга лучше не пытаться найти предельное значение.Заметно реагируют на температуру.
Многие тайминги отзываются и на температуру и на напряжение. Поскольку напряжение может как позволить снизить тайминг, так и увеличить температуру, то середину можно искать очень долго, поэтому лучше бы вовремя остановится.
Тестируйте тщательно с перезагрузками, сном, холодным стартом.
RTL и IOL вам кто-то другой пусть советует как настраивать, от них у меня голова болеть начинает...

Актуальные (последние) версии:
TableDRAMIntel(simple3nov2020+simple12oct2020+обычная)
http://bit.ly/3rTIBLv
http://bit.ly/3nWJlxB
http://bit.ly/32WnkTU
Conf tm5(slight+uni@LMHz+extreme+absolut)
http://bit.ly/2Oe8R00 - суперлайт
http://bit.ly/2H9jIZH - универсальный
http://bit.ly/2MUvl6n - экстремальный
http://bit.ly/3D9TUnD - абсолют
http://bit.ly/3STH2wx - новый для интела и DDR5
http://bit.ly/3wedj8U - новый для Ryzen3D и DDR5
Тяжелый
http://bit.ly/35eKfeJ

VDDDQ=1.5 V max по Jedec
VrefCA=0.6xVDDDQ=0.9 V (max по Jedec), в даташите контроллера интел тоже разрешено максимальное vrefca=0.6xVdddq.
То есть при обычной настройке биоса, когда VrefCA=0.5xVDDDQ, VDRAM<=1.8 V, чтобы уложиться в нормы по Jedec.
А если при этом в биосе настроить vrefca=0.49xvdddq (разрешено по Jedec), то безопасное Vdram может быть еще выше=1.837 V.
Вывод: для контроллера процессора напряжение на память <=1.8 V неопасно

https://forums.overclockers.ru/viewtopic.php?p=17484594#p17484594
На OCN есть методика их подбора с помощью Passmark memtest86, использовать только 8-й тест.

Below are the typical tRFC in ns for the common ICs:
IC tRFC (ns)
Hynix 8Gb AFR 260 - 280
Hynix 8Gb CJR 260 - 280
Hynix 8Gb DJR 260 - 280
Micron 8Gb Rev. E 280 - 310
Micron 16Gb Rev. B 290 - 310
Samsung 8Gb B-Die 120 - 180
Samsung 8Gb C-Die 300 - 340

#77
#77
#77
Чем выше вы в вертикальном столбце, тем удачнее планки.
Чем интенсивнее цвет, тем выше статистический процент (данные старые,теперь удачнее чипы выходят)
На 1 таблице все,что выше красной линии - суперотборники.

1.Поднять напряжения на VCCSA и VCCIO.
2.Включить в биосе Round Trip Latency.
3.Для гигабайтов - memory enchancement=normal.

https://docs.google.com/document/d/15qsrwUxGbKtqjeyEhmCear2kN9hCt2noKK5z14Webhg/edit?usp=sharing
https://docs.google.com/document/u/0/d/1QacU405kVV10-qBdrqQKOY0v-FKlBFpLcEDn0QpriSE/mobilebasic на русском
Мобильная версия
https://docs.google.com/document/u/0/d/15qsrwUxGbKtqjeyEhmCear2kN9hCt2noKK5z14Webhg/mobilebasic

GSAT- https://drive.google.com/file/d/1iCj0-jQIXIlo_Zvm5jO949ZH9fClTNF3/edit
для длинных тестов добавил параметр "--pause_delay" чтоб периодически не отключались потоки

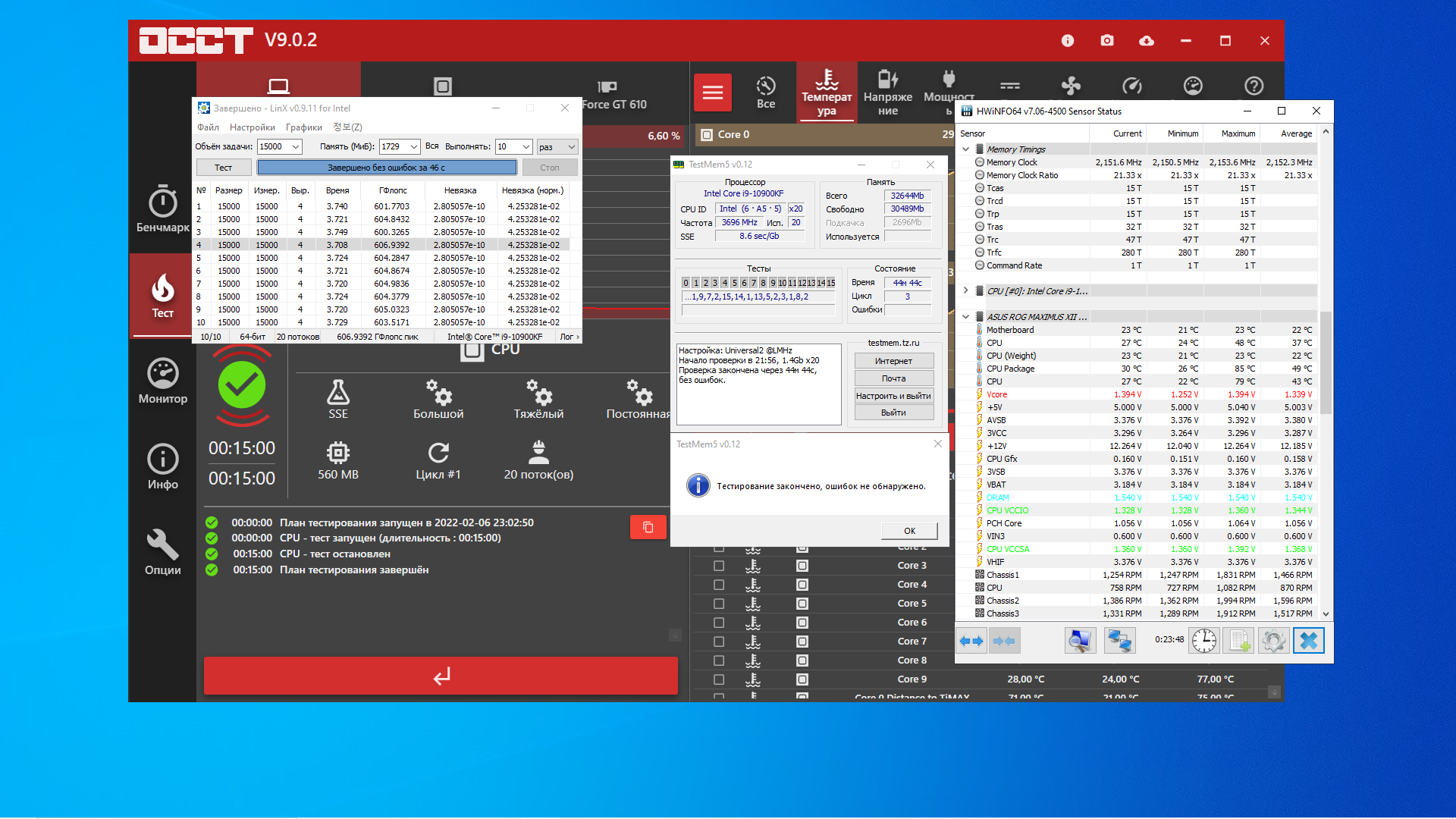

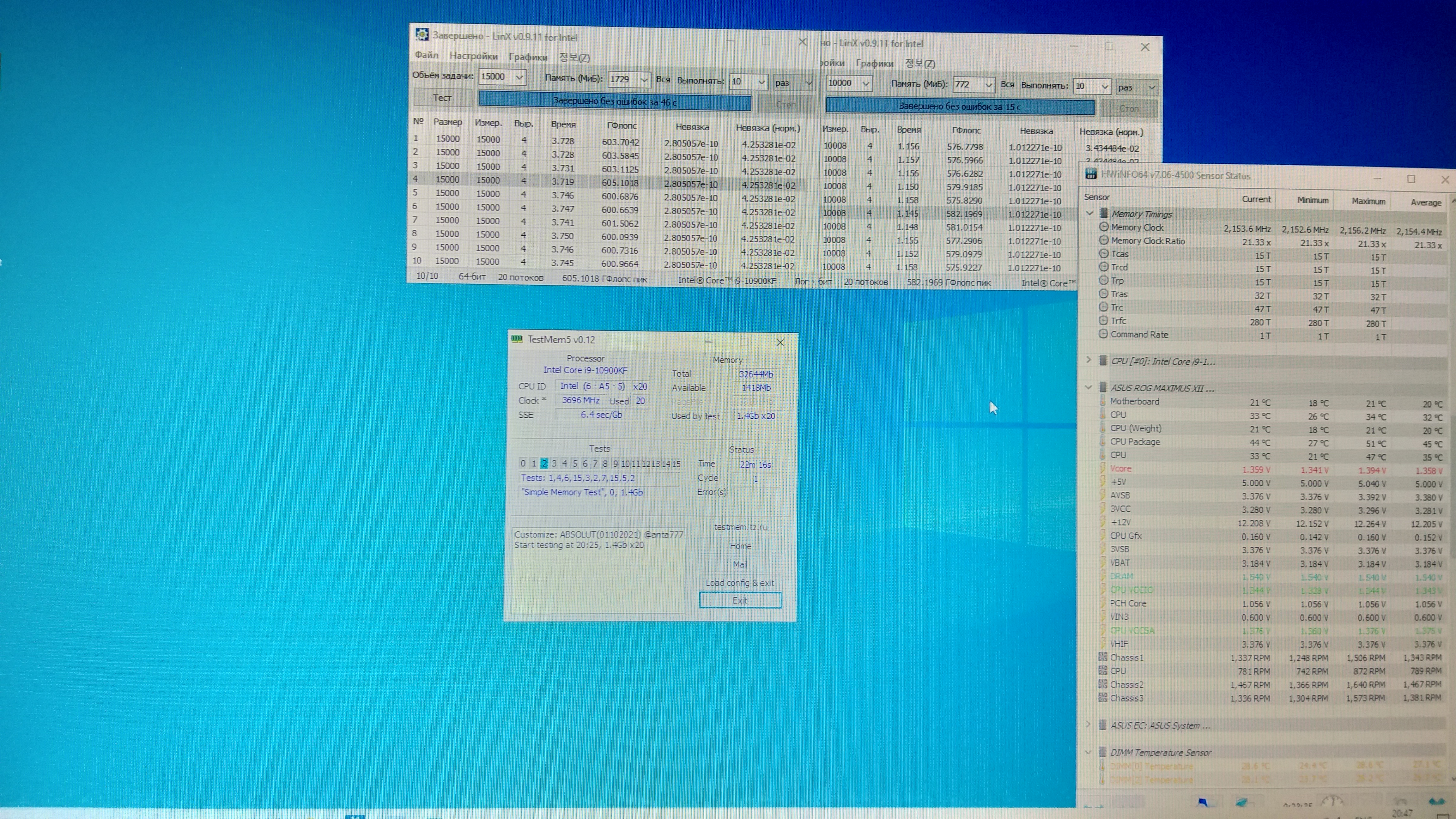

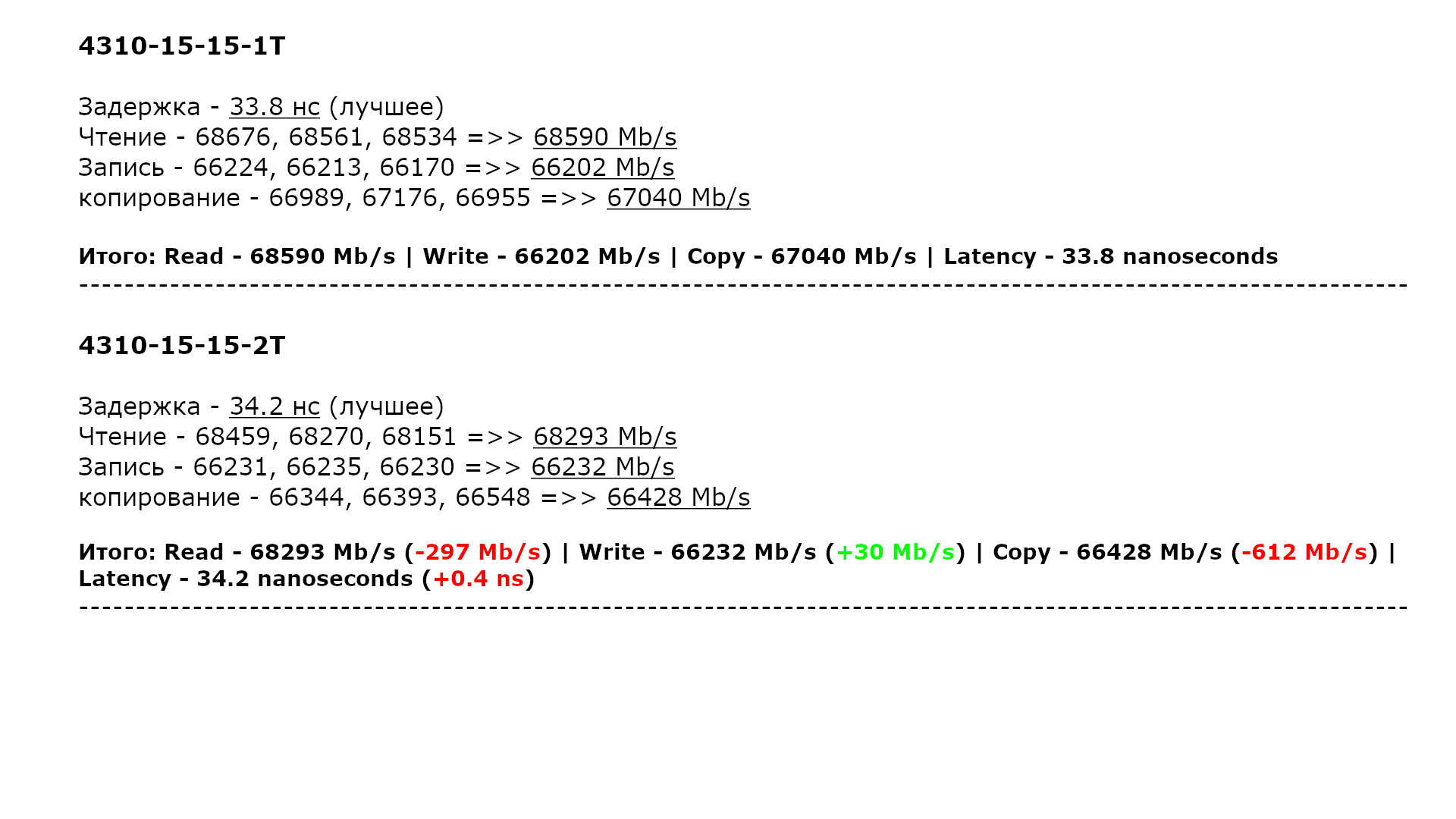

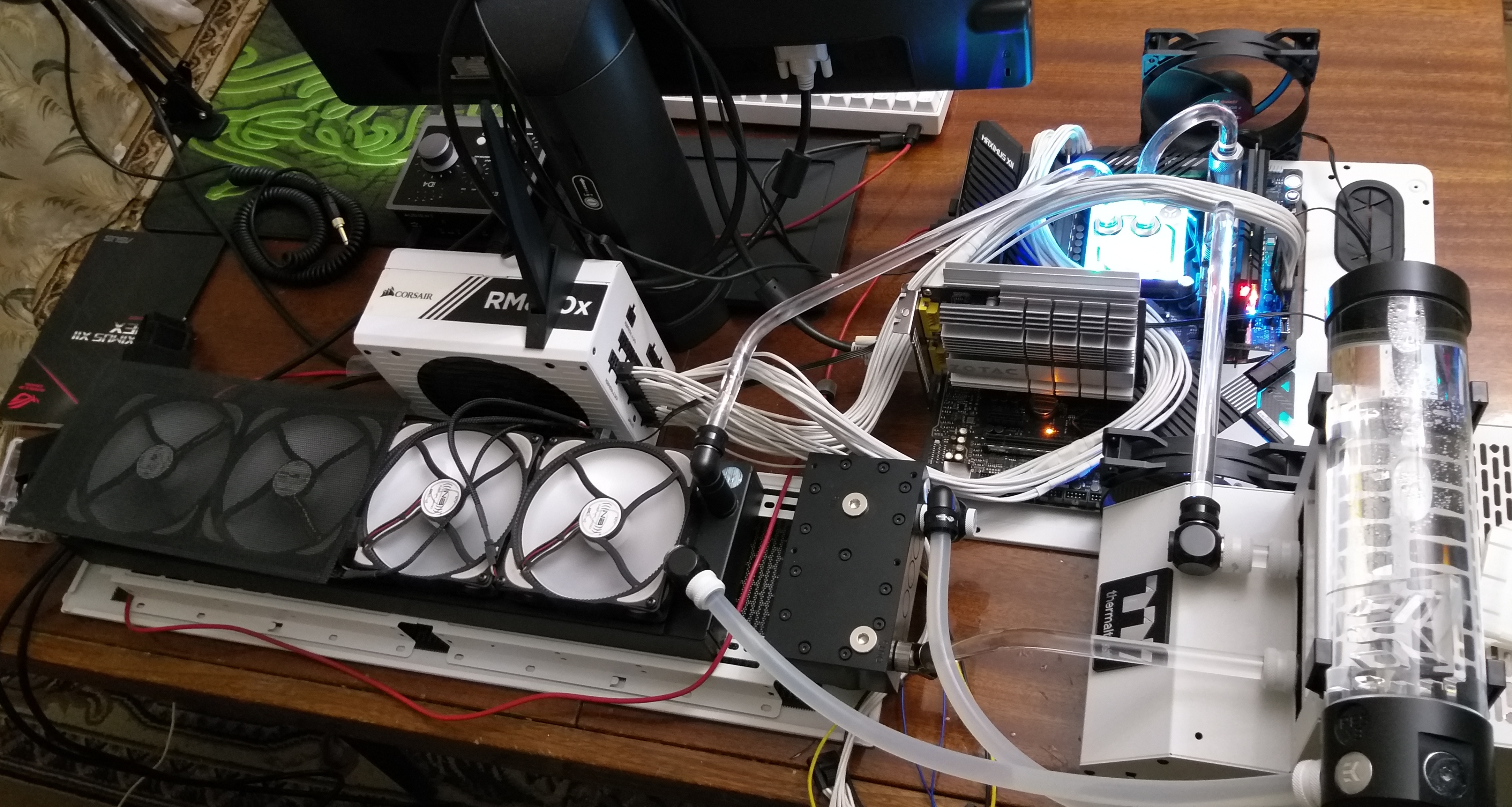

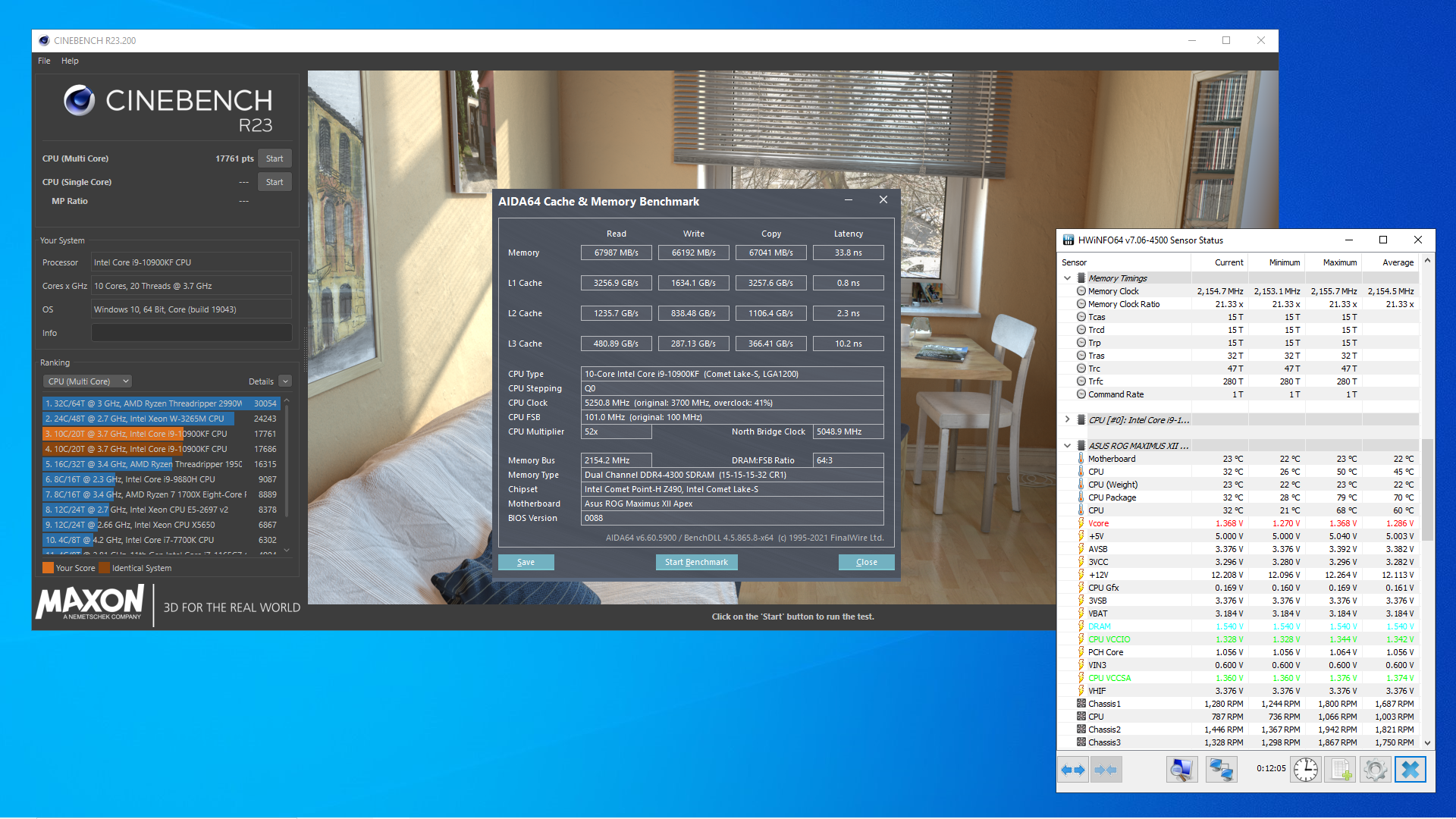

[2022/02/07 00:11:51]
Ai Overclock Tuner [Manual]
BCLK Frequency [101.0000]
PCIE Frequency [100.0000]
ASUS MultiCore Enhancement [Enabled – Remove All limits]
SVID Behavior [Best-Case Scenario]
AVX Instruction Core Ratio Negative Offset [0]
CPU Core Ratio [Sync All Cores]
ALL-Core Ratio Limit [52]
BCLK Frequency : DRAM Frequency Ratio [100:133]
DRAM Odd Ratio Mode [Enabled]
DRAM Frequency [DDR4-4309MHz]
Xtreme Tweaking [Disabled]
CPU SVID Support [Auto]
Maximus Tweak [Mode 2]
DRAM CAS# Latency [15]
DRAM RAS# to CAS# Delay [15]
DRAM RAS# ACT Time [32]
DRAM Command Rate [N:1]
N to 1 ratio [1]
DRAM RAS# to RAS# Delay L [6]
DRAM RAS# to RAS# Delay S [4]
DRAM REF Cycle Time [280]
DRAM REF Cycle Time 2 [Auto]
DRAM REF Cycle Time 4 [Auto]
DRAM Refresh Interval [65534]
DRAM WRITE Recovery Time [12]
DRAM READ to PRE Time [6]
DRAM FOUR ACT WIN Time [16]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [6]
DRAM WRITE to READ Delay S [2]
DRAM CKE Minimum Pulse Width [0]
DRAM Write Latency [14]
ODT RTT WR (CHA) [80 DRAM Clock]
ODT RTT PARK (CHA) [40 DRAM Clock]
ODT RTT NOM (CHA) [40 DRAM Clock]
ODT RTT WR (CHB) [80 DRAM Clock]
ODT RTT PARK (CHB) [40 DRAM Clock]
ODT RTT NOM (CHB) [40 DRAM Clock]
ODT_READ_DURATION [4]
ODT_READ_DELAY [2]
ODT_WRITE_DURATION [4]
ODT_WRITE_DELAY [2]
Data Rising Slope [Auto]
Data Rising Slope Offset [Auto]
Cmd Rising Slope [Auto]
Cmd Rising Slope Offset [Auto]
Ctl Rising Slope [Auto]
Ctl Rising Slope Offset [Auto]
Clk Rising Slope [Auto]
Clk Rising Slope Offset [Auto]
Data Falling Slope [Auto]
Data Falling Slope Offset [Auto]
Cmd Falling Slope [Auto]
Cmd Falling Slope Offset [Auto]
Ctl Falling Slope [Auto]
Ctl Falling Slope Offset [Auto]
Clk Falling Slope [Auto]
Clk Falling Slope Offset [Auto]
DRAM RTL INIT value [65]
DRAM IOL INIT value(CHA) [4]
DRAM IOL INIT value(CHB) [4]
DRAM RTL (CHA DIMM0 Rank0) [57]
DRAM RTL (CHA DIMM0 Rank1) [57]
DRAM RTL (CHA DIMM1 Rank0) [0]
DRAM RTL (CHA DIMM1 Rank1) [0]
DRAM RTL (CHB DIMM0 Rank0) [57]
DRAM RTL (CHB DIMM0 Rank1) [57]
DRAM RTL (CHB DIMM1 Rank0) [0]
DRAM RTL (CHB DIMM1 Rank1) [0]
DRAM IOL (CHA DIMM0 Rank0) [7]
DRAM IOL (CHA DIMM0 Rank1) [7]
DRAM IOL (CHA DIMM1 Rank0) [0]
DRAM IOL (CHA DIMM1 Rank1) [0]
DRAM IOL (CHB DIMM0 Rank0) [7]
DRAM IOL (CHB DIMM0 Rank1) [7]
DRAM IOL (CHB DIMM1 Rank0) [0]
DRAM IOL (CHB DIMM1 Rank1) [0]
CHA IO_Latency_offset [21]
CHB IO_Latency_offset [21]
CHA RFR delay [14]
CHB RFR delay [14]
Early Command Training [Auto]
SenseAmp Offset Training [Enabled]
Early ReadMPR Timing Centering 2D [Enabled]
Read MPR Training [Enabled]
Receive Enable Training [Enabled]
Jedec Write Leveling [Enabled]
LPDDR4 Write DQ DQS Retraining [Enabled]
Early Write Time Centering 2D [Auto]
Early Read Time Centering 2D [Auto]
Write Timing Centering 1D [Enabled]
Write Voltage Centering 1D [Auto]
Read Timing Centering 1D [Auto]
Dimm ODT Training* [Auto]
DIMM RON Training* [Auto]
Write Drive Strength/Equalization 2D* [Auto]
Write Slew Rate Training* [Auto]
Read ODT Training* [Auto]
Read Equalization Training* [Auto]
Read Amplifier Training* [Auto]
Write Timing Centering 2D [Auto]
Read Timing Centering 2D [Auto]
Command Voltage Centering [Enabled]
Write Voltage Centering 2D [Auto]
Read Voltage Centering 2D [Auto]
Late Command Training [Enabled]
Round Trip Latency [Disabled]
Turn Around Timing Training [Disabled]
Rank Margin Tool [Enabled]
Margin Check Limit [Disabled]
Memory Test [Disabled]
DIMM SPD Alias Test [Auto]
Receive Enable Centering 1D [Auto]
Retrain Margin Check [Disabled]
CMD Drive Strength and Tx Equalization [Auto]
CMD Slew Rate Training [Auto]
Write Drive Strength Up/Dn independently [Disabled]
tRDRD_sg_Training [6]
tRDRD_sg_Runtime [6]
tRDRD_dg [4]
tRDWR_sg [10]
tRDWR_dg [10]
tWRWR_sg [6]
tWRWR_dg [4]
tWRRD_sg [26]
tWRRD_dg [22]
tRDRD_dr [5]
tRDRD_dd [0]
tRDWR_dr [10]
tRDWR_dd [0]
tWRWR_dr [7]
tWRWR_dd [0]
tWRRD_dr [5]
tWRRD_dd [0]
TWRPRE [30]
TRDPRE [6]
tREFIX9 [Auto]
OREF_RI [Auto]
TXP [0]
PPD [0]
MRC Fast Boot [Enabled]
Delay after Train [Disabled]
DRAM CLK Period [8]
Memory Scrambler [Enabled]
Channel A DIMM Control [Enable both DIMMs]
Channel B DIMM Control [Enable both DIMMs]
Trace Centering [Disabled]
MCH Full Check [Enabled]
Mem Over Clock Fail Count [Auto]
Training Profile [Auto]
DLLBwEn [0]
Legacy Mode [Disabled]
SPD Write Disable [TRUE]
XTU Setting [Auto]
Voltage Monitor [Die Sense]
CPU Load-line Calibration [Level 6]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Manual]
Fixed CPU VRM Switching Frequency(KHz) [1000KHz]
CPU Power Duty Control [Extreme]
CPU Power Phase Control [Extreme]
CPU Power Thermal Control [130]
CPU VRM Thermal Control [Auto]
DRAM Current Capability [130%]
DRAM Switching Frequency [Manual]
Fixed DRAM Switching Frequency(KHz) [500]
CPU Core/Cache Boot Voltage [Auto]
DMI Boot Voltage [Auto]
CPU System Agent Boot Voltage [Auto]
CPU VCCIO Boot Voltage [Auto]
PLL Termination Boot voltage [Auto]
CPU Standby Boot Voltage [Auto]
Maximum CPU Core Temperature [Auto]
CPU Core/Cache Current Limit Max. [255.75]
Long Duration Package Power Limit [4095]
Package Power Time Window [448]
Short Duration Package Power Limit [4095]
IA AC Load Line [0.01]
IA DC Load Line [0.01]
TVB Voltage Optimizations [Auto]
TVB Ratio Clipping [Auto]
V-Max Stress [Auto]
Offset Mode Sign 1 [+]
V/F Point 1 Offset [Auto]
Offset Mode Sign 2 [+]
V/F Point 2 Offset [Auto]
Offset Mode Sign 3 [+]
V/F Point 3 Offset [Auto]
Offset Mode Sign 4 [+]
V/F Point 4 Offset [Auto]
Offset Mode Sign 5 [+]
V/F Point 5 Offset [Auto]
Offset Mode Sign 6 [+]
V/F Point 6 Offset [Auto]
Offset Mode Sign 7 [+]
V/F Point 7 Offset [Auto]
Offset Mode Sign 8 [+]
V/F Point 8 Offset [Auto]
Realtime Memory Timing [Enabled]
FCLK Frequency for Early Power On [1GHz]
Initial BCLK Frequency [Auto]
BCLK Amplitude [Auto]
BCLK Slew Rate [Auto]
BCLK Spread Spectrum [Disabled]
BCLK Frequency Slew Rate [Auto]
PCIE/DMI Amplitude [Auto]
PCIE/DMI Spread Spectrum [Disabled]
PCIE/DMI Frequency Slew Rate [Auto]
PCIE/DMI Slew Rate [Auto]
Cold Boot PCIE Frequency [Auto]
DRAM VTT Voltage [0.76250]
VPPDDR Voltage [Auto]
DMI Voltage [Auto]
Internal PLL Voltage [Auto]
GT PLL Voltage [Auto]
Ring PLL Voltage [Auto]
System Agent PLL Voltage [Auto]
Memory Controller PLL Voltage [Auto]
CPU Standby Voltage [Auto]
PLL Bandwidth [Auto]
Eventual DRAM Voltage [1.52500]
Eventual CPU Standby Voltage [Auto]
Eventual PLL Termination Voltage [Auto]
Eventual CPU VCCIO Voltage [Auto]
Eventual DMI Voltage [Auto]
System Agent Bandgap Workaround [Enabled]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
Cooler Efficiency Customize [Keep Training]
Cooler Re-evaluation Algorithm [Normal]
Optimism Scale [100]
Ring Down Bin [Disabled]
Min. CPU Cache Ratio [50]
Max CPU Cache Ratio [50]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core/Cache Voltage [Manual Mode]
- CPU Core Voltage Override [1.365]
DRAM Voltage [1.52500]
CPU VCCIO Voltage [1.32000]
CPU System Agent Voltage [1.34000]
PLL Termination Voltage [Auto]
PCH Core Voltage [Auto]
DRAM CTRL REF Voltage on CHA [0.54000]
DRAM CTRL REF Voltage on CHB [0.54000]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL7 [Auto]
PCI Express Native Power Management [Disabled]
DMI Link ASPM Control [Disabled]
ASPM [Disabled]
L1 Substates [Disabled]
PCI Express Clock Gating [Enabled]
DMI Link ASPM Control [Disabled]
PEG - ASPM [Disabled]
ASPM L0s [Both Root and Endpoint Ports]
PTID Support [Enabled]
PECI Access Method [Direct I/O]
PCI Express Native Power Management [Disabled]
Native ASPM [Disabled]
Wake System from S5 [Disabled]
ACPI Debug [Disabled]
Low Power S0 Idle Capability [Disabled]
PEP CPU [Enabled]
PEP Graphics [Enabled]
PEP IPU [Enabled]
PEP PEG0 [Enabled]
PEP SATA [Adapter D0/F1]
PEP enumerated SATA ports [Enabled]
PEP PCIe Storage [Disabled]
PEP I2C0 [Enabled]
PEP I2C1 [Enabled]
PEP XHCI [Enabled]
PEP Audio [Enabled]
PEP CSME [Enabled]
PEP LAN(GBE) [Enabled]
Intel Ready Mode Technology [Disabled]
PCI Delay Optimization [Disabled]
MSI enabled [Enabled]
Software Guard Extensions (SGX) [Disabled]
Tcc Offset Time Window [Auto]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel (VMX) Virtualization Technology [Disabled]
PECI [Enabled]
Active Processor Cores [All]
Limit CPUID Maximum [Disabled]
Hyper-Threading [Enabled]
Hyper-Threading of Core 0 [Enabled]
Hyper-Threading of Core 1 [Enabled]
Hyper-Threading of Core 2 [Enabled]
Hyper-Threading of Core 3 [Enabled]
Hyper-Threading of Core 4 [Enabled]
Hyper-Threading of Core 5 [Enabled]
Hyper-Threading of Core 6 [Enabled]
Hyper-Threading of Core 7 [Enabled]
Hyper-Threading of Core 8 [Enabled]
Hyper-Threading of Core 9 [Enabled]
MonitorMWait [Enabled]
BIST [Disabled]
AP threads Idle Manner [MWAIT Loop]
AES [Enabled]
Intel Trusted Execution Technology [Disabled]
Boot performance mode [Turbo Performance]
Intel(R) SpeedStep(tm) [Disabled]
Race To Halt (RTH) [Enabled]
Intel(R) Speed Shift Technology [Disabled]
Turbo Mode [Enabled]
CPU C-states [Disabled]
Latency [250]
CFG Lock [Disabled]
Thermal Monitor [Enabled]
Interrupt Redirection Mode Selection [PAIR with Fixed Priority]
Timed MWAIT [Disabled]
Energy Performance Gain [Disabled]
Overclocking Lock [Disabled]
Dual Tau Boost [Disabled]
VT-d [Disabled]
Above 4G Decoding [Disabled]
DDR PowerDown and idle counter [BIOS]
For LPDDR Only: DDR PowerDown and idle counter [BIOS]
REFRESH_2X_MODE [Disabled]
LPDDR Thermal Sensor [Enabled]
SelfRefresh Enable [Enabled]
SelfRefresh IdleTimer [0]
Throttler CKEMin Defeature [Disabled]
Throttler CKEMin Timer [48]
Use user provided power weights, scale factor, and channel power floor values [Disabled]
Lock Thermal Management Registers [Enabled]
Extern Therm Status [Disabled]
Closed Loop Therm Manage [Disabled]
Open Loop Therm Manage [Disabled]
Warm Threshold Ch0 Dimm0 [255]
Warm Threshold Ch0 Dimm1 [255]
Hot Threshold Ch0 Dimm0 [255]
Hot Threshold Ch0 Dimm1 [255]
Warm Threshold Ch1 Dimm0 [255]
Warm Threshold Ch1 Dimm1 [255]
Hot Threshold Ch1 Dimm0 [255]
Hot Threshold Ch1 Dimm1 [255]
Warm Budget Ch0 Dimm0 [255]
Warm Budget Ch0 Dimm1 [255]
Hot Budget Ch0 Dimm0 [255]
Hot Budget Ch0 Dimm1 [255]
Warm Budget Ch1 Dimm0 [255]
Warm Budget Ch1 Dimm1 [255]
Hot Budget Ch1 Dimm0 [255]
Hot Budget Ch1 Dimm1 [255]
RAPL PL Lock [Disabled]
RAPL PL 1 enable [Disabled]
RAPL PL 1 Power [0]
RAPL PL 1 WindowX [0]
RAPL PL 1 WindowY [0]
RAPL PL 2 enable [Disabled]
RAPL PL 2 Power [222]
RAPL PL 2 WindowX [1]
RAPL PL 2 WindowY [10]
Memory Thermal Management [Disabled]
MRC ULT Safe Config [Disabled]
Safe Mode Support [Disabled]
HOB Buffer Size [Auto]
ECC Support [Enabled]
Max TOLUD [Dynamic]
SA GV [Enabled]
SA GV Low Freq [MRC default]
Retrain on Fast Fail [Enabled]
RMT on Fast [Disabled]
BER Support [Enabled]
Enable RH Prevention [Enabled]
Row Hammer Solution [Hardware RHP]
RH Activation Probability [1/2^11]
Exit On Failure (MRC) [Enabled]
Probeless Trace [Disabled]
Memory Trace [Disabled]
GDXC IOT size [4]
GDXC MOT size [12]
Enable/Disable IED (Intel Enhanced Debug) [Disabled]
Ch Hash Support [Enabled]
Ch Hash Mask [0]
Ch Hash Interleaved Bit [BIT6]
Per Bank Refresh [Enabled]
Strong Weak Leaker [7]
Memory Scrambler [Enabled]
Force ColdReset [Disabled]
Force Single Rank [Disabled]
Memory Remap [Enabled]
Time Measure [Disabled]
DLL Weak Lock Support [Enabled]
Pwr Down Idle Timer [0]
MRC Fast Boot [Enabled]
Train On Warm boot [Disabled]
Rank Margin Tool Per Task [Disabled]
Training Tracing [Disabled]
BDAT ACPI Table Support [Disabled]
BDAT Memory Test Type [Rank Margin Tool Rank]
Rank Margin Tool Loop Count [0]
DDR4 Skip Refresh Enable [Enabled]
Primary Display [Auto]
iGPU Multi-Monitor [Disabled]
DMI Max Link Speed [Auto]
Enable Root Port [Auto]
PCIEX16_1 Link Speed [Auto]
Max Link Width [Auto]
Power Down Unused Lanes [Auto]
Gen3 Eq Phase 2 [Auto]
Gen3 Eq Phase 3 Method [Auto]
PEG - ASPM [Disabled]
ASPM L0s [Both Root and Endpoint Ports]
De-emphasis Control [-3.5 dB]
OBFF [Enabled]
LTR [Enabled]
PEG0 Slot Power Limit Value [75]
PEG0 Slot Power Limit Scale [1.0x]
PEG0 Physical Slot Number [1]
PEG0 Hotplug [Disabled]
Enable Root Port [Auto]
PCIEX16_2 Link Speed [Auto]
Max Link Width [Auto]
Power Down Unused Lanes [Auto]
Gen3 Eq Phase 2 [Auto]
Gen3 Eq Phase 3 Method [Auto]
ASPM [Auto]
ASPM L0s [Both Root and Endpoint Ports]
De-emphasis Control [-3.5 dB]
OBFF [Enabled]
LTR [Enabled]
PEG1 Slot Power Limit Value [75]
PEG1 Slot Power Limit Scale [1.0x]
PEG1 Physical Slot Number [2]
PEG1 Hotplug [Disabled]
PCIe Spread Spectrum Clocking [Enabled]
Control Iommu Pre-boot Behavior [Enable IOMMU during boot without exception list]
X2APIC Opt Out [Disabled]
PCIe Speed [Auto]
PCI Express Clock Gating [Enabled]
DMI Link ASPM Control [Disabled]
Port8xh Decode [Disabled]
Port8xh Decode Port# [0]
Peer Memory Write Enable [Disabled]
Compliance Test Mode [Disabled]
PCIe-USB Glitch W/A [Disabled]
PCIe function swap [Enabled]
Number of Coefficients to be used for equalization [3]
RTC Memory Lock [Enabled]
BIOS Lock [Enabled]
Force unlock on all GPIO pads [Disabled]
HD Audio [Enabled]
Audio DSP [Disabled]
Audio Link Mode [HD Audio Link]
HDA-Link Codec Select [Platform Onboard]
iDisplay Audio Disconnect [Disabled]
Codec Sx Wake Capability [Disabled]
PME Enable [Disabled]
HD Audio Link Frequency [24 MHz]
iDisplay Audio Link Frequency [96 MHz]
iDisplay Audio Link T-Mode [2T Mode]
SDCard 3.0 Controller [Disabled]
ISH Controller [Disabled]
Thermal Throttling Level [Suggested Setting]
DMI Thermal Setting [Suggested Setting]
SATA Thermal Setting [Suggested Setting]
Tdispatch []
Tinactive []
Serial IRQ Mode [Quiet]
High Precision Timer [Enabled]
Port 80h Redirection [LPC Bus]
Enhance Port 80h LPC Decoding [Enabled]
Legacy IO Low Latency [Disabled]
PCH Cross Throttling [Enabled]
PCH Energy Reporting [Enabled]
Enable TCO Timer [Disabled]
Pcie Pll SSC [Auto]
IOAPIC 24-119 Entries [Enabled]
Enable 8254 Clock Gate [Enabled]
Flash Protection Range Registers (FPRR) [Disabled]
LGMR [Disabled]
SATA Controller(s) [Enabled]
SATA Mode Selection [AHCI]
Aggressive LPM Support [Disabled]
SMART Self Test [Enabled]
SATA6G_1(Black) [Enabled]
SATA6G_1 Hot Plug [Disabled]
SATA6G_2(Black) [Enabled]
SATA6G_2 Hot Plug [Disabled]
SATA6G_3(Black) [Enabled]
SATA6G_3 Hot Plug [Disabled]
SATA6G_4(Black) [Enabled]
SATA6G_4 Hot Plug [Disabled]
SATA6G_5(Black) [Enabled]
SATA6G_5 Hot Plug [Disabled]
SATA6G_6(Black) [Enabled]
SATA6G_6 Hot Plug [Disabled]
ME State [Enabled]
ME State [Auto]
ME Unconfig on RTC Clear [Enabled]
Comms Hub Support [Disabled]
JHI Support [Disabled]
Extend CSME Measurement to TPM-PCR [Disabled]
Core Bios Done Message [Enabled]
Me FW Image Re-Flash [Disabled]
FW Update [Enabled]
FIPS Mode Select [Disabled]
HECI Timeouts [Enabled]
Force ME DID Init Status [Disabled]
CPU Replaced Polling Disable [Disabled]
ME DID Message [Enabled]
HECI Message check Disable [Disabled]
MBP HOB Skip [Disabled]
HECI2 Interface Communication [Disabled]
KT Device [Enabled]
End Of Post Message [Enabled]
D0I3 Setting for HECI Disable [Disabled]
MCTP Broadcast Cycle [Disabled]
Automatic HW-Enforced Anti-Rollback SVN [Disabled]
Set HW-Enforced Anti-Rollback for Current SVN [Disabled]
PTT [Disable]
DTS SMM [Disabled]
Tcc Activation Offset [0]
Tcc Offset Time Window [Auto]
Tcc Offset Clamp Enable [Disabled]
Tcc Offset Lock Enable [Disabled]
Bi-directional PROCHOT# [Enabled]
Disable PROCHOT# Output [Enabled]
Disable VR Thermal Alert [Disabled]
PROCHOT Response [Disabled]
PROCHOT Lock [Disabled]
ACPI T-States [Disabled]
PECI Reset [Disabled]
PECI C10 Reset [Disabled]
Automatic Thermal Reporting [Disabled]
Critical Trip Point [119 C (POR)]
Active Trip Point 0 [71 C]
Active Trip Point 0 Fan Speed [100]
Active Trip Point 1 [55 C]
Active Trip Point 1 Fan Speed [75]
Passive Trip Point [95 C]
Passive TC1 Value [1]
Passive TC2 Value [5]
Passive TSP Value [10]
Active Trip Points [Enabled]
Passive Trip Points [Disabled]
Critical Trip Points [Enabled]
PCH Temp Read [Enabled]
CPU Energy Read [Enabled]
CPU Temp Read [Enabled]
Alert Enable Lock [Disabled]
CPU Temperature [72]
CPU Fan Speed [65]
Intel(R) Dynamic Tuning [Disabled]
Secondary Configuration Rework Option For TBT [TBT BP Onboard Enable]
UCSI Retry Mechanism [Disabled]
PS2 Keyboard and Mouse [Enabled]
Power Loss Notification Feature [Disabled]
Enable VTIO Support [Disabled]
HID Event Filter Driver [Disabled]
HEBC value [144371]
Pcie Slot 1 to x4 Mode Rework [Disabled]
PCIe x16 slot GSPI0_CLK Rework [Disabled]
PCIe x16 slot GSXDOUT Rework [Disabled]
DGPU Power Enable [Disabled]
System Time and Alarm Source [ACPI Time and Alarm Device]
Intel Trusted Device Setup Boot [Disabled]
Support PEG Bifurcation Card [Disabled]
OverClocking Feature [Disabled]
WDT Enable [Enabled]
End Of Post Message [Enabled]
USB Provisioning of AMT [Disabled]
Secure Erase mode [Simulated]
Force Secure Erase [Disabled]
MEBx hotkey Pressed [Disabled]
MEBx Selection Screen [Disabled]
Unconfigure ME [Disabled]
ICC/OC Watchdog Timer [Disabled]
Discrete Thunderbolt(TM) Support [Disabled]
Kernel Debug Serial Port [Legacy UART]
Platform Debug Consent [Disabled]
USB3 Type-C UFP2DFP Kernel/Platform Debug Support [Disabled]
PCH Trace Hub Enable Mode [Disabled]
CPU Run Control [No Change]
CPU Run Control Lock [Enabled]
Processor trace memory allocation [Disabled]
JTAG C10 Power Gate [Enabled]
Three Strike Counter [Enabled]
CrashLog Feature [Enabled]
CrashLog On All Reset [Disabled]
PMC Debug Message Enable [Disabled]
CPU Wakeup Timer [Enabled]
Delayed Authentication Mode [Disabled]
TPM State [Enabled]
Pending operation [None]
TCM State [Enabled]
Pending operation [None]
Security Device Support [Enable]
SHA-1 PCR Bank [Enabled]
SHA256 PCR Bank [Enabled]
SHA384 PCR Bank [Disabled]
SHA512 PCR Bank [Disabled]
SM3_256 PCR Bank [Disabled]
Pending operation [None]
Platform Hierarchy [Enabled]
Storage Hierarchy [Enabled]
Endorsement Hierarchy [Enabled]
TPM2.0 UEFI Spec Version [TCG_2]
Physical Presence Spec Version [1.3]
Disable Block Sid [Disabled]
Enable ACPI Auto Configuration [Disabled]
Enable Hibernation [Enabled]
ACPI Sleep State [S3 (Suspend to RAM)]
SMART Self Test [Enabled]
Brightness Setting [255]
BIST Enable [Disabled]
PCI Latency Timer [32 PCI Bus Clocks]
PCI-X Latency Timer [64 PCI Bus Clocks]
VGA Palette Snoop [Disabled]
PERR# Generation [Disabled]
SERR# Generation [Disabled]
Above 4G Decoding [Enabled]
SR-IOV Support [Disabled]
BME DMA Mitigation [Disabled]
Don't Reset VC-TC Mapping [Enabled]
BIOS Hot-Plug Support [Enabled]
PCI Buses Padding [1]
I/O Resources Padding [4 K]
MMIO 32 bit Resources Padding [16 M]
PFMMIO 32 bit Resources Padding [16 M]
PFMMIO 64 bit Resources Padding [Disabled]
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed]
XHCI Legacy Support [Enabled]
XHCI Hand-off [Enabled]
EHCI Hand-off [Disabled]
USB Mass Storage Driver Support [Enabled]
USB transfer time-out [20 sec]
Device reset time-out [20 sec]
Device power-up delay [Auto]
Device power-up delay in seconds [5]
General UDisk 5.00 [Auto]
U32G2_1 [Enabled]
U32G2_2 [Enabled]
U32G2_3 [Enabled]
U32G2_4 [Enabled]
U32G1_7 [Enabled]
U32G1_8 [Enabled]
U32G1_E1 [Enabled]
U32G1_E2 [Enabled]
U32G1_E3 [Enabled]
U32G1_E4 [Enabled]
U32G1_9 [Enabled]
SP_USB11 [Enabled]
U32G2_5 [Enabled]
U32G2_C6 [Enabled]
Network Stack [Disabled]
Hyper M.2X16 [Disabled]
HD Audio [Enabled]
Intel LAN [Enabled]
Intel LAN PXE Option ROM [Disabled]
USB power delivery in Soft Off state (S5) [Enabled]
Connectivity mode (Wi-Fi & Bluetooth) [Enabled]
When system is in working state [All On]
Q-Code LED Function [POST Code Only]
When system is in sleep, hibernate or soft off states [All On]
M.2_1 Configuration [Auto]
DIMM2_1 Configuration [Auto]
DIMM2_2 Configuration [Auto]
U32G2_C6 Type C Power Mode [Auto]
USB3.2_5 Type C Power Mode [Auto]
ASMedia Storage Controller [Enabled]
Windows Hot-plug Notification [Disabled]
ASPM Support [Disabled]
Restore AC Power Loss [Power Off]
Energy Star Ready [Disabled]
ErP Ready [Disabled]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
Device [N\A]
Hide Asus Logo [Disabled]
EZ Flash update via Internet [Disabled]
HW Change Show Warning [Disabled]
CPU Temperature [Monitor]
CPU Package Temperature [Monitor]
MotherBoard Temperature [Monitor]
VRM Temperature [Monitor]
Chipset Temperature [Monitor]
T_Sensor Temperature [Monitor]
DIMM.2 Sensor 1 Temperature [Monitor]
DIMM.2 Sensor 2 Temperature [Monitor]
Water In T Sensor Temperature [Monitor]
Water Out T Sensor Temperature [Monitor]
EXT_Sensor1 Temperature [Monitor]
EXT_Sensor2 Temperature [Monitor]
EXT_Sensor3 Temperature [Monitor]
CPU Fan Speed [Monitor]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
W_PUMP+ Speed [Monitor]
AIO PUMP Speed [Monitor]
Extension Fan 1 Speed [Monitor]
Extension Fan 2 Speed [Monitor]
Extension Fan 3 Speed [Monitor]
Extension Fan 4 Speed [Monitor]
Extension Fan 5 Speed [Monitor]
Extension Fan 6 Speed [Monitor]
CPU Core Voltage [Monitor]
12V Voltage [Monitor]
5V Voltage [Monitor]
3.3V Voltage [Monitor]
Flow Rate [Monitor]
AI Cooling [Disabled]
CPU Q-Fan Control [Auto]
CPU Fan Step Up [0 sec]
CPU Fan Step Down [0 sec]
CPU Fan Speed Lower Limit [200 RPM]
CPU Fan Profile [Standard]
Chassis Fan 1 Q-Fan Control [Auto]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Step Up [0 sec]
Chassis Fan 1 Step Down [0 sec]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 1 Profile [Standard]
Chassis Fan 2 Q-Fan Control [Auto]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Step Up [0 sec]
Chassis Fan 2 Step Down [0 sec]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 2 Profile [Standard]
Chassis Fan 3 Q-Fan Control [Auto]
Chassis Fan 3 Q-Fan Source [CPU]
Chassis Fan 3 Step Up [0 sec]
Chassis Fan 3 Step Down [0 sec]
Chassis Fan 3 Speed Low Limit [200 RPM]
Chassis Fan 3 Profile [Standard]
Extension Fan 1 Q-Fan Control [Auto]
Extension Fan 1 Q-Fan Source [CPU]
Extension Fan 1 Step Up [0 sec]
Extension Fan 1 Step Down [0 sec]
Extension Fan 1 Speed Low Limit [200 RPM]
Extension Fan 1 Profile [Standard]
Extension Fan 2 Q-Fan Control [Auto]
Extension Fan 2 Q-Fan Source [CPU]
Extension Fan 2 Step Up [0 sec]
Extension Fan 2 Step Down [0 sec]
Extension Fan 2 Speed Low Limit [200 RPM]
Extension Fan 2 Profile [Standard]
Extension Fan 3 Q-Fan Control [Auto]
Extension Fan 3 Q-Fan Source [CPU]
Extension Fan 3 Step Up [0 sec]
Extension Fan 3 Step Down [0 sec]
Extension Fan 3 Speed Low Limit [200 RPM]
Extension Fan 3 Profile [Standard]
Extension Fan 4 Q-Fan Control [Auto]
Extension Fan 4 Q-Fan Source [CPU]
Extension Fan 4 Step Up [0 sec]
Extension Fan 4 Step Down [0 sec]
Extension Fan 4 Speed Low Limit [200 RPM]
Extension Fan 4 Profile [Standard]
Extension Fan 5 Q-Fan Control [Auto]
Extension Fan 5 Q-Fan Source [CPU]
Extension Fan 5 Step Up [0 sec]
Extension Fan 5 Step Down [0 sec]
Extension Fan 5 Speed Low Limit [200 RPM]
Extension Fan 5 Profile [Standard]
Extension Fan 6 Q-Fan Control [Auto]
Extension Fan 6 Q-Fan Source [CPU]
Extension Fan 6 Step Up [0 sec]
Extension Fan 6 Step Down [0 sec]
Extension Fan 6 Speed Low Limit [200 RPM]
Extension Fan 6 Profile [Standard]
WATER PUMP+ Control [Disabled]
AIO PUMP Control [Disabled]
CPU Temperature LED Switch [Enabled]
Launch CSM [Enabled]
Boot Device Control [UEFI and Legacy OPROM]
Boot from Network Devices [Legacy only]
Boot from Storage Devices [Legacy only]
Boot from PCI-E/PCI Expansion Devices [Legacy only]
OS Type [Other OS]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Fast Boot]
Boot Logo Display [Auto]
POST Delay Time [3 sec]
Bootup NumLock State [On]
Wait For 'F1' If Error [Enabled]
AMI Native NVMe Driver Support [Enabled]
Option ROM Messages [Force BIOS]
Interrupt 19 Capture [Disabled]
Setup Mode [Advanced Mode]
Boot Sector (MBR/GPT) Recovery Policy [Local User Control]
Next Boot Recovery Action [Skip]
BIOS Image Rollback Support [Enabled]
Flexkey [Reset]
Setup Animator [Disabled]
Profile Name []
Save to Profile [1]
DIMM Slot Number [DIMM_A1]
Download & Install ARMOURY CRATE app [Disabled]
