  odvolk10

Member
Статус: Не в сети
Регистрация: 09.11.2019
Откуда: Карелия|СПб
RusXP, Hynix OEM 4800CL40 (HMCG78MEBUA081N).
Реклама

Партнер
  Virusoid

Member
Статус: Не в сети
Регистрация: 08.08.2006
RusXP писал(а):
Где факт то? Ни единого, даже мало мальского скрина с пройденным мемтестом+асрок тимингс хотя бы. Не говорю уже про стабильность в играх.
А "знаю человека", "скрины из биоса" - ну такие себе аргументы.

Научитесь верить людям, а не искать везде скрытый подтекст

_________________
Черт побери! А все таки че она вертится...

  max82

Member
Статус: Не в сети
Регистрация: 26.08.2008
Откуда: Москва
Alexey1977 писал(а):
простыню как разгонять память могу в теме по гиге написать потом.

Было бы очень полезно, сделайте если не сложно. Да и в шапку бы добавить в теме по гиге, чтоб вопросов меньше было.
  odvolk10

Member
Статус: Не в сети
Регистрация: 09.11.2019
Откуда: Карелия|СПб
Что поправить?
Хочу tRDWR_sg/dg=16/16 попробовать, раз запускает.
tRCD/tRP=37/37 пробовать + tRAS=49?
Как tRFC/tRFCpb правильно считать?
Есть ли толк от tRRD_S/L/tFAW=4/6/16 или 4/4/16 или 4/8/16?
Есть ли толк от tWR/tRTP=24/12 или 16/8 или 12/6?
tRDRD_sg=tWRWR_sg=12 и ниже также есть ли толк?
tRDRD_dg=tWRWR_dg=8 - min как я понял или 7 пробовать?
В целом, всё. tCWL=30 вроде хуже говорят, лучше -2 от tCL, tWRRD ниже не запускается уже.
_dr/_dd в 0 здесь же можно? Память ведь 1Rank.
Спасибо, особенно за внятные ответы.

P.S. Позже с 2-умя модулями попробую 6600, возможно выше и CR=1.

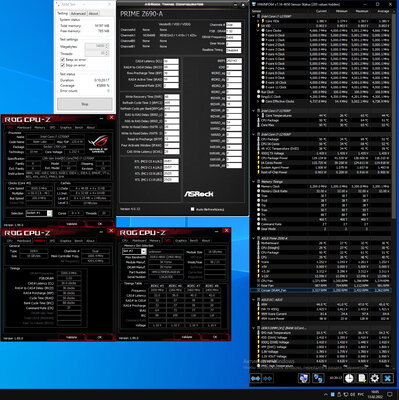

Вложение:
6400CL30 1.435V Karhu.jpg
6400CL30 1.435V Karhu.jpg [ 1.75 МБ | Просмотров: 2645 ]


  RusXP

Member
Статус: Не в сети
Регистрация: 16.09.2003
Откуда: Казань
Фото: 5
Virusoid писал(а):
Научитесь верить людям

Все понятно! :-)
odvolk10 писал(а):
Hynix OEM 4800CL40 (HMCG78MEBUA081N)

Неплохие планки, заодно и охлад можно выбрать самому. ;)

_________________
Ничего у них не получится, мы их дожмем!

  anta777

Куратор темы
Статус: Не в сети
Регистрация: 10.06.2011
odvolk10
WRWRsg=2*RDRDsg


RRDSmin=8
FAWmin=32


dr и dd для синглов не должны применяться, поэтому не играет роли, какими их выставить

Добавлено спустя 2 минуты 34 секунды:
tWRmin=48

_________________
TableDRAM(simple+обычная) bit.ly/3rTIBLv bit.ly/32WnkTU
Tm5(ddr4/5) bit.ly/2Oe8R00 bit.ly/2H9jIZH bit.ly/2MUvl6n bit.ly/3wedj8U bit.ly/3STH2wx

  odvolk10

Member
Статус: Не в сети
Регистрация: 09.11.2019
Откуда: Карелия|СПб
anta777, привет, Андрей.
Тогда поставлю вот так на тест:

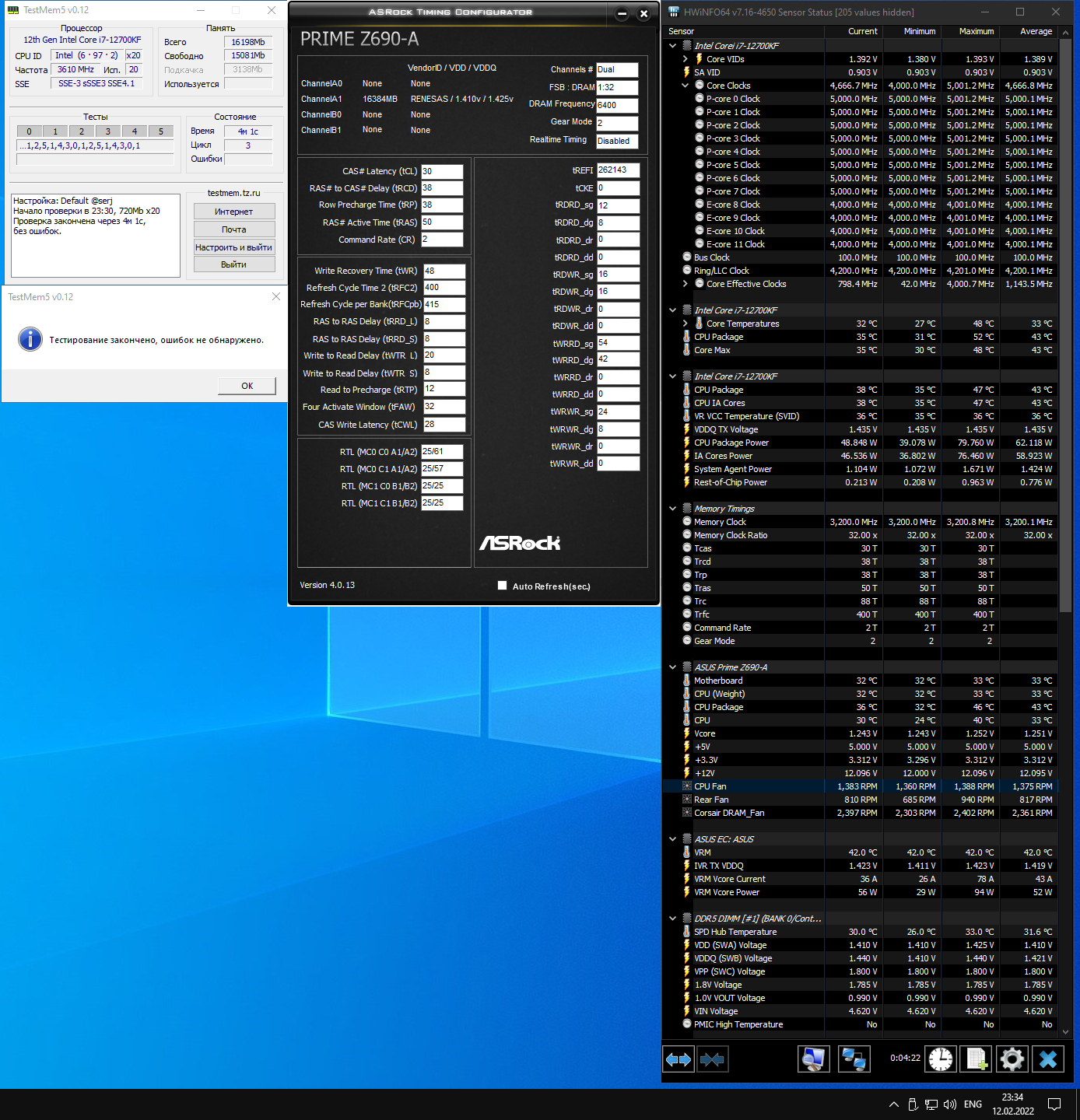

Вложение:
2022-02-12_233454.jpg [ 1.46 МБ | Просмотров: 2620 ]

Дальше поиграюсь с:
1. tRDWR_sg/dg=15/15;
2. MC с 1.3 до 1.25/1.2.
3. VDD/VDDQ с 1.435 до 1.430 и ниже.
4. tXP=0 (сейчас стоит 0). Не знаю, влияет ли;
5. tRFC минимально кратное 16 (320/304/288);
6. tRFCpb так и не понял как лучше выставлять (он едет ниже вроде, чем tRFC. Также кратным 16 его ставить?).

Дальше - CR=1.

Смотреть tWR/tRTP; tRDRD_sg/tWRWR_sg; tRDRD_dg/tWRWR_dg и tRRD_S/tRRD_L/tFAW пониженные буду смотреть также, но позже.
  anta777

Куратор темы
Статус: Не в сети
Регистрация: 10.06.2011
tRFCpb в авто, реально он начинает применяться только при уменьшении времени рефреша в 2 раза, то есть реалтно никогда.

Добавлено спустя 1 минуту 14 секунд:
В tm5 для проверки DDR5 нужно в конфиге изменить количество каналов с двух на один.

_________________
TableDRAM(simple+обычная) bit.ly/3rTIBLv bit.ly/32WnkTU
Tm5(ddr4/5) bit.ly/2Oe8R00 bit.ly/2H9jIZH bit.ly/2MUvl6n bit.ly/3wedj8U bit.ly/3STH2wx

  omgad

Junior
Статус: Не в сети
Регистрация: 24.03.2019
odvolk10 писал(а):
anta777, привет, Андрей.
Тогда поставлю вот так на тест:
Вложение:

Дальше поиграюсь с:
1. tRDWR_sg/dg=15/15;
2. MC с 1.3 до 1.25/1.2.
3. VDD/VDDQ с 1.435 до 1.430 и ниже.
4. tXP=0 (сейчас стоит 0). Не знаю, влияет ли;
5. tRFC минимально кратное 16 (320/304/288);
6. tRFCpb так и не понял как лучше выставлять (он едет ниже вроде, чем tRFC. Также кратным 16 его ставить?).

Дальше - CR=1.

Смотреть tWR/tRTP; tRDRD_sg/tWRWR_sg; tRDRD_dg/tWRWR_dg и tRRD_S/tRRD_L/tFAW пониженные буду смотреть также, но позже.


Очень интересно, что сможешь выжать на Prime. Хочу тоже повыше частоты, но пока не понимаю, что и как делать. :roll:
  odvolk10

Member
Статус: Не в сети
Регистрация: 09.11.2019
Откуда: Карелия|СПб
omgad буду пытаться выше по частотам или кр1.
Главное, чтоб память и КП не подвели ещё :)

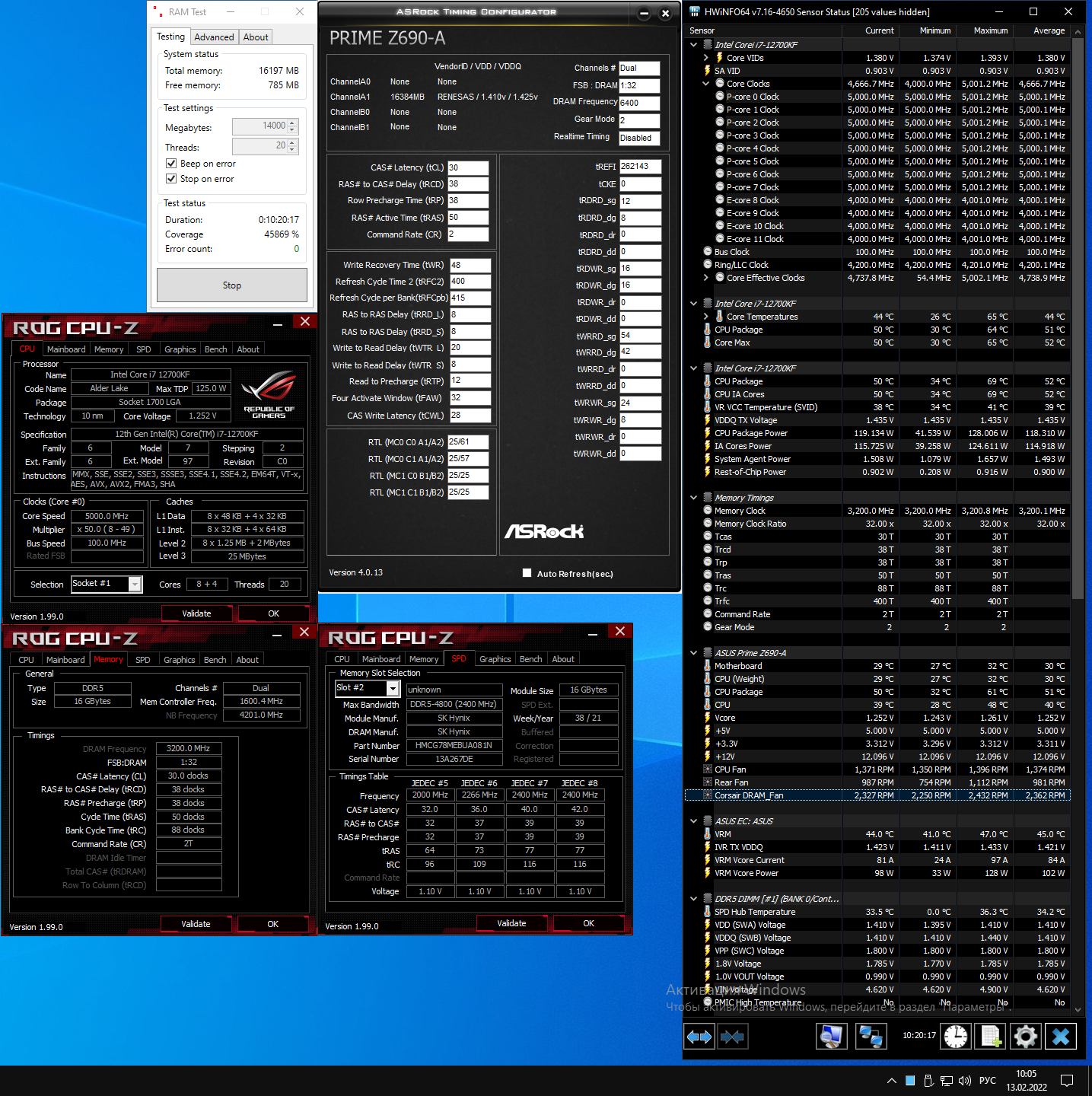

Вложение:
6400CL30 1.435V Karhu.jpg
6400CL30 1.435V Karhu.jpg [ 1.82 МБ | Просмотров: 2537 ]

txt
[2022/02/13 10:07:03]
Ai Overclock Tuner [Manual]
BCLK Frequency [100.0000]
Intel(R) Adaptive Boost Technology [Auto]
ASUS MultiCore Enhancement [Enabled – Remove All limits]
SVID Behavior [Auto]
BCLK Frequency : DRAM Frequency Ratio [Auto]
Memory Controller : DRAM Frequency Ratio [1:2]
DRAM Frequency [DDR5-6400MHz]
Performance Core Ratio [Sync All Cores]
ALL-Core Ratio Limit [50]
Performance Core0 Specific Ratio Limit [Auto]
Performance Core0 specific Adaptive Voltage [Auto]
Performance Core1 Specific Ratio Limit [Auto]
Performance Core1 specific Adaptive Voltage [Auto]
Performance Core2 Specific Ratio Limit [Auto]
Performance Core2 specific Adaptive Voltage [Auto]
Performance Core3 Specific Ratio Limit [Auto]
Performance Core3 specific Adaptive Voltage [Auto]
*Performance Core4 Specific Ratio Limit [Auto]
Performance Core4 specific Adaptive Voltage [Auto]
*Performance Core5 Specific Ratio Limit [Auto]
Performance Core5 specific Adaptive Voltage [Auto]
Performance Core6 Specific Ratio Limit [Auto]
Performance Core6 specific Adaptive Voltage [Auto]
Performance Core7 Specific Ratio Limit [Auto]
Performance Core7 specific Adaptive Voltage [Auto]
Efficient Core Ratio [Sync All Cores]
ALL-Core Ratio Limit [40]
Efficient Core Group0 Specific Ratio Limit [Auto]
Efficient Core Group0 specific Adaptive Voltage [Auto]
CPU SVID Support [Enabled]
AVX2 [Auto]
AVX512 [Auto]
AVX2 Ratio Offset to per-core Ratio Limit [Auto]
AVX512 Ratio Offset to per-core Ratio Limit [Auto]
AVX2 Voltage Guardband Scale Factor [Auto]
AVX512 Voltage Guardband Scale Factor [Auto]
DRAM CAS# Latency [30]
DRAM RAS# to CAS# Delay [38]
DRAM RAS# PRE Time [38]
DRAM RAS# ACT Time [50]
DRAM Command Rate [2N]
DRAM RAS# to RAS# Delay L [8]
DRAM RAS# to RAS# Delay S [8]
DRAM REF Cycle Time [400]
DRAM REF Cycle Time 2 [Auto]
DRAM REF Cycle Time Same Bank [Auto]
DRAM Refresh Interval [262143]
DRAM WRITE Recovery Time [48]
DRAM READ to PRE Time [12]
DRAM FOUR ACT WIN Time [32]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [Auto]
DRAM WRITE to READ Delay S [Auto]
DRAM CKE Minimum Pulse Width [0]
DRAM Write Latency [28]
Ctl0 dqvrefup [Auto]
Ctl0 dqvrefdn [Auto]
Ctl0 dqodtvrefup [Auto]
Ctl0 dqodtvrefdn [Auto]
Ctl1 cmdvrefup [Auto]
Ctl1 ctlvrefup [Auto]
Ctl1 clkvrefup [Auto]
Ctl1 ckecsvrefup [Auto]
Ctl2 cmdvrefdn [Auto]
Ctl2 ctlvrefdn [Auto]
Ctl2 clkvrefdn [Auto]
ODT_READ_DURATION [Auto]
ODT_READ_DELAY [Auto]
ODT_WRITE_DURATION [Auto]
ODT_WRITE_DELAY [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
Round Trip Latency Init Value MC0 CHA [Auto]
Round Trip Latency Max Value MC0 CHA [Auto]
Round Trip Latency Offset Value Mode Sign MC0 CHA [-]
Round Trip Latency Offset Value MC0 CHA [Auto]
Round Trip Latency Init Value MC0 CHB [Auto]
Round Trip Latency Max Value MC0 CHB [Auto]
Round Trip Latency Offset Value Mode Sign MC0 CHB [-]
Round Trip Latency Offset Value MC0 CHB [Auto]
Round Trip Latency Init Value MC1 CHA [Auto]
Round Trip Latency Max Value MC1 CHA [Auto]
Round Trip Latency Offset Value Mode Sign MC1 CHA [-]
Round Trip Latency Offset Value MC1 CHA [Auto]
Round Trip Latency Init Value MC1 CHB [Auto]
Round Trip Latency Max Value MC1 CHB [Auto]
Round Trip Latency Offset Value Mode Sign MC1 CHB [-]
Round Trip Latency Offset Value MC1 CHB [Auto]
Round Trip Latency MC0 CHA R0 [Auto]
Round Trip Latency MC0 CHA R1 [Auto]
Round Trip Latency MC0 CHA R2 [Auto]
Round Trip Latency MC0 CHA R3 [Auto]
Round Trip Latency MC0 CHA R4 [Auto]
Round Trip Latency MC0 CHA R5 [Auto]
Round Trip Latency MC0 CHA R6 [Auto]
Round Trip Latency MC0 CHA R7 [Auto]
Round Trip Latency MC0 CHB R0 [Auto]
Round Trip Latency MC0 CHB R1 [Auto]
Round Trip Latency MC0 CHB R2 [Auto]
Round Trip Latency MC0 CHB R3 [Auto]
Round Trip Latency MC0 CHB R4 [Auto]
Round Trip Latency MC0 CHB R5 [Auto]
Round Trip Latency MC0 CHB R6 [Auto]
Round Trip Latency MC0 CHB R7 [Auto]
Round Trip Latency MC1 CHA R0 [Auto]
Round Trip Latency MC1 CHA R1 [Auto]
Round Trip Latency MC1 CHA R2 [Auto]
Round Trip Latency MC1 CHA R3 [Auto]
Round Trip Latency MC1 CHA R4 [Auto]
Round Trip Latency MC1 CHA R5 [Auto]
Round Trip Latency MC1 CHA R6 [Auto]
Round Trip Latency MC1 CHA R7 [Auto]
Round Trip Latency MC1 CHB R0 [Auto]
Round Trip Latency MC1 CHB R1 [Auto]
Round Trip Latency MC1 CHB R2 [Auto]
Round Trip Latency MC1 CHB R3 [Auto]
Round Trip Latency MC1 CHB R4 [Auto]
Round Trip Latency MC1 CHB R5 [Auto]
Round Trip Latency MC1 CHB R6 [Auto]
Round Trip Latency MC1 CHB R7 [Auto]
Early Command Training [Auto]
SenseAmp Offset Training [Auto]
Early ReadMPR Timing Centering 2D [Auto]
Read MPR Training [Auto]
Receive Enable Training [Auto]
Jedec Write Leveling [Auto]
Early Write Time Centering 2D [Auto]
Early Read Time Centering 2D [Auto]
Write Timing Centering 1D [Auto]
Write Voltage Centering 1D [Auto]
Read Timing Centering 1D [Auto]
Read Timing Centering with JR [Auto]
Dimm ODT Training* [Auto]
Max RTT_WR [ODT Off]
DIMM RON Training* [Auto]
Write Drive Strength/Equalization 2D* [Auto]
Write Slew Rate Training* [Auto]
Read ODT Training* [Auto]
Comp Optimization Training [Auto]
Read Equalization Training* [Auto]
Read Amplifier Training* [Auto]
Write Timing Centering 2D [Auto]
Read Timing Centering 2D [Auto]
Command Voltage Centering [Auto]
Early Command Voltage Centering [Auto]
Write Voltage Centering 2D [Auto]
Read Voltage Centering 2D [Auto]
Late Command Training [Auto]
Round Trip Latency [Auto]
Turn Around Timing Training [Auto]
CMD CTL CLK Slew Rate [Auto]
CMD/CTL DS & E 2D [Auto]
Read Voltage Centering 1D [Auto]
TxDqTCO Comp Training* [Auto]
ClkTCO Comp Training* [Auto]
TxDqsTCO Comp Training* [Auto]
VccDLL Bypass Training [Auto]
CMD/CTL Drive Strength Up/Dn 2D [Auto]
DIMM CA ODT Training [Auto]
PanicVttDnLp Training* [Auto]
Read Vref Decap Training* [Auto]
Vddq Training [Auto]
Duty Cycle Correction Training [Auto]
Rank Margin Tool Per Bit [Auto]
DIMM DFE Training [Auto]
Tx Dqs Dcc Training [Auto]
Rank Margin Tool [Auto]
Memory Test [Auto]
DIMM SPD Alias Test [Auto]
Receive Enable Centering 1D [Auto]
Retrain Margin Check [Auto]
Write Drive Strength Up/Dn independently [Auto]
Margin Check Limit [Disabled]
tRDRD_sg_Training [12]
tRDRD_sg_Runtime [12]
tRDRD_dg_Training [8]
tRDRD_dg_Runtime [8]
tRDWR_sg [16]
tRDWR_dg [16]
tWRWR_sg [24]
tWRWR_dg [8]
tWRRD_sg [54]
tWRRD_dg [42]
tRDRD_dr [0]
tRDRD_dd [0]
tRDWR_dr [0]
tRDWR_dd [0]
tWRWR_dr [0]
tWRWR_dd [0]
tWRRD_dr [0]
tWRRD_dd [0]
tRPRE [Auto]
tWPRE [Auto]
tWRPRE [84]
tPRPDEN [Auto]
tRDPDEN [Auto]
tWRPDEN [84]
tCPDED [Auto]
tREFIX9 [255]
Ref Interval [0]
tXPDLL [Auto]
tXP [8]
tPPD [0]
tCCD_L_tDLLK [Auto]
MRC Fast Boot [Enabled]
MCH Full Check [Auto]
Mem Over Clock Fail Count [Auto]
Training Profile [Auto]
RxDfe [Auto]
Mrc Training Loop Count [Auto]
DRAM CLK Period [Auto]
Dll_bwsel [Auto]
Controller 0, Channel 0 Control [Enabled]
Controller 0, Channel 1 Control [Enabled]
Controller 1, Channel 0 Control [Enabled]
Controller 1, Channel 1 Control [Enabled]
MC_Vref0 [Auto]
MC_Vref1 [Auto]
MC_Vref2 [Auto]
Dynamic Memory Boost [Disabled]
Realtime Memory Frequency [Disabled]
SA GV [Disabled]
VRM Initialization Check [Disabled]
CPU Input Voltage Load-line Calibration [Auto]
CPU Load-line Calibration [Level 7]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Disabled]
CPU Power Duty Control [Extreme]
CPU Power Phase Control [Extreme]
CPU Core/Cache Boot Voltage [Auto]
CPU Input Boot Voltage [Auto]
PLL Termination Boot Voltage [Auto]
CPU Standby Boot Voltage [Auto]
Memory Controller Boot Voltage [Auto]
CPU Core Auto Voltage Cap [Auto]
CPU Input Auto Voltage Cap [Auto]
Memory Controller Auto Voltage Cap [Auto]
Maximum CPU Core Temperature [105]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
IVR Transmitter VDDQ ICCMAX [Auto]
Unlimited ICCMAX [Auto]
CPU Core/Cache Current Limit Max. [511.75]
Long Duration Package Power Limit [4095]
Package Power Time Window [448]
Short Duration Package Power Limit [4095]
IA AC Load Line [Auto]
IA DC Load Line [Auto]
IA CEP Enable [Auto]
SA CEP Enable [Auto]
IA SoC Iccmax Reactive Protector [Auto]
Inverse Temperature Dependency Throttle [Auto]
IA VR Voltage Limit [Auto]
TVB Voltage Optimizations [Disabled]
Enhanced TVB [Auto]
Overclocking TVB [Disabled]
Offset Mode Sign 1 [+]
V/F Point 1 Offset [Auto]
Offset Mode Sign 2 [+]
V/F Point 2 Offset [Auto]
Offset Mode Sign 3 [+]
V/F Point 3 Offset [Auto]
Offset Mode Sign 4 [+]
V/F Point 4 Offset [Auto]
Offset Mode Sign 5 [+]
V/F Point 5 Offset [Auto]
Offset Mode Sign 6 [+]
V/F Point 6 Offset [Auto]
Offset Mode Sign 7 [+]
V/F Point 7 Offset [Auto]
Offset Mode Sign 8 [+]
V/F Point 8 Offset [Auto]
Offset Mode Sign 9 [+]
V/F Point 9 Offset [Auto]
Offset Mode Sign 10 [+]
V/F Point 10 Offset [Auto]
Offset Mode Sign 11 [+]
V/F Point 11 Offset [Auto]
Realtime Memory Timing [Disabled]
SPD Write Disable [FALSE]
PVD Ratio Threshold [Auto]
Banding Ratio [Auto]
SA PLL Frequency Override [Auto]
BCLK TSC HW Fixup [Enabled]
Core Ratio Extension Mode [Disabled]
FLL OC mode [Auto]
Core PLL Voltage [Auto]
GT PLL Voltage [Auto]
Ring PLL Voltage [Auto]
System Agent PLL Voltage [Auto]
Memory Controller PLL Voltage [Auto]
CPU 1.8V Small Rail [Auto]
PLL Termination Voltage [Auto]
CPU Standby Voltage [Auto]
PCH 1.05V Voltage [Auto]
PCH 0.82V Voltage [Auto]
CPU Input Voltage Reset Voltage [Auto]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
Cooler Efficiency Customize [Keep Training]
Cooler Re-evaluation Algorithm [Normal]
Optimism Scale [100]
Ring Down Bin [Disabled]
Min. CPU Cache Ratio [42]
Max. CPU Cache Ratio [42]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core/Cache Voltage [Manual Mode]
- CPU Core Voltage Override [1.25000]
CPU L2 Voltage [Auto]
CPU System Agent Voltage [Manual Mode]
- CPU System Agent Voltage Override [0.90000]
CPU Input Voltage [Auto]
High DRAM Voltage Mode [Disabled]
DRAM VDD Voltage [1.43500]
DRAM VDDQ Voltage [1.43500]
IVR Transmitter VDDQ Voltage [Auto]
Memory Controller Voltage [1.30000]
MC Voltage Calculation Voltage Base [Auto]
VDD Calculation Voltage Base [Auto]
PMIC Voltages [Auto]
PCI Express Native Power Management [Enabled]
Native ASPM [Disabled]
DMI Link ASPM Control [Disabled]
ASPM [Auto]
L1 Substates [Disabled]
DMI ASPM [Disabled]
DMI Gen3 ASPM [Disabled]
PEG - ASPM [Disabled]
PCI Express Clock Gating [Enabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel (VMX) Virtualization Technology [Enabled]
Per P-Core Control [Disabled]
Per E-Core Control [Disabled]
Active Performance Cores [All]
Active Efficient Cores [All]
Hyper-Threading [Enabled]
Hyper-Threading of Core 0 [Enabled]
Hyper-Threading of Core 1 [Enabled]
Hyper-Threading of Core 2 [Enabled]
Hyper-Threading of Core 3 [Enabled]
Hyper-Threading of Core 4 [Enabled]
Hyper-Threading of Core 5 [Enabled]
Hyper-Threading of Core 6 [Enabled]
Hyper-Threading of Core 7 [Enabled]
Legacy Game Compatibility Mode [Disabled]
Boot performance mode [Turbo Performance]
Intel(R) SpeedStep(tm) [Enabled]
Intel(R) Speed Shift Technology [Enabled]
Intel(R) Turbo Boost Max Technology 3.0 [Disabled]
Turbo Mode [Enabled]
Acoustic Noise Mitigation [Disabled]
CPU C-states [Disabled]
Thermal Monitor [Enabled]
Dual Tau Boost [Disabled]
VT-d [Disabled]
Memory Remap [Enabled]
Enable VMD controller [Enabled]
Map PCIE Storage under VMD [Disabled]
M.2_1 Link Speed [Auto]
PCIEX16(G5) Link Speed [Auto]
PCIEX1(G3)_2 Link Speed [Auto]
PCIEX1(G3)_1 Link Speed [Auto]
PCIEX16(G3) Link Speed [Auto]
PCIEX4(G3) Link Speed [Auto]
M.2_4 Link Speed [Auto]
M.2_2 Link Speed [Auto]
M.2_3 Link Speed [Auto]
SATA Controller(s) [Disabled]
PTT [Enable]
PCIE Tunneling over USB4 [Enabled]
Discrete Thunderbolt(TM) Support [Disabled]
Security Device Support [Enable]
SHA256 PCR Bank [Enabled]
Pending operation [None]
Platform Hierarchy [Enabled]
Storage Hierarchy [Enabled]
Endorsement Hierarchy [Enabled]
Physical Presence Spec Version [1.3]
TPM 2.0 UEFI Spec Version [TCG_2]
Disable Block Sid [Disabled]
Above 4G Decoding [Disabled]
SR-IOV Support [Disabled]
Legacy USB Support [Enabled]
XHCI Hand-off [Enabled]
SanDisk [Auto]
U32G2_1 [Enabled]
U32G1_E1 [Enabled]
U32G1_E2 [Enabled]
U32G1_E3 [Enabled]
U32G1_E4 [Enabled]
U32G2X2_C3 [Enabled]
U32G2_5 [Enabled]
U32G2_C6 [Enabled]
U32G2_7 [Enabled]
U32G1_8 [Enabled]
U32G1_9 [Enabled]
USB10 [Enabled]
USB11 [Enabled]
USB12 [Enabled]
USB13 [Enabled]
Network Stack [Disabled]
Device [N/A]
Restore AC Power Loss [Power Off]
Max Power Saving [Disabled]
ErP Ready [Disabled]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
PCIe Bandwidth Bifurcation Configuration [Auto]
HD Audio [Enabled]
Intel LAN [Enabled]
USB power delivery in Soft Off state (S5) [Enabled]
When system is in working state [All On]
When system is in sleep, hibernate or soft off states [Stealth Mode]
M.2_4 Configuration [Auto]
U32G2_C6 Type C Power Mode [Auto]
GNA Device [Disabled]
Serial Port [None]
Change Settings [IO=3F8h; IRQ=4]
CPU Temperature [Monitor]
CPU Package Temperature [Monitor]
MotherBoard Temperature [Monitor]
VRM Thermistor Temperature [Monitor]
T_Sensor Temperature [Monitor]
DIMM A1 Temperature [Monitor]
DIMM A2 Temperature [Monitor]
DIMM B1 Temperature [Monitor]
DIMM B2 Temperature [Monitor]
CPU Fan Speed [Monitor]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
Chassis Fan 4 Speed [Monitor]
Water Pump+ Speed [Monitor]
AIO Pump Speed [Monitor]
CPU Core Voltage [Monitor]
12V Voltage [Monitor]
5V Voltage [Monitor]
3.3V Voltage [Monitor]
Memory Controller Voltage [Monitor]
CPU Core Current [Monitor]
AI Cooling [Disabled]
CPU Fan Q-Fan Control [Auto Detect]
CPU Fan Profile [Manual]
CPU Fan Step Up [Level 0]
CPU Fan Step Down [Level 0]
CPU Fan Speed Low Limit [200 RPM]
CPU Fan Upper Temperature [100]
CPU Fan Max. Duty Cycle (%) [65]
CPU Fan Middle Temperature [50]
CPU Fan Middle Duty Cycle (%) [65]
CPU Fan Lower Temperature [0]
CPU Fan Min Duty Cycle (%) [65]
Chassis Fan 1 Q-Fan Control [Auto Detect]
Chassis Fan 1 Profile [Standard]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Step Up [Level 0]
Chassis Fan 1 Step Down [Level 0]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 2 Q-Fan Control [Auto Detect]
Chassis Fan 2 Profile [Standard]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Step Up [Level 0]
Chassis Fan 2 Step Down [Level 0]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 3 Q-Fan Control [DC Mode]
Chassis Fan 3 Profile [Manual]
Chassis Fan 3 Q-Fan Source [CPU]
Chassis Fan 3 Step Up [Level 0]
Chassis Fan 3 Step Down [Level 0]
Chassis Fan 3 Speed Low Limit [200 RPM]
Chassis Fan 3 Upper Temperature [100]
Chassis Fan 3 Max. Duty Cycle (%) [65]
Chassis Fan 3 Middle Temperature [50]
Chassis Fan 3 Middle Duty Cycle (%) [65]
Chassis Fan 3 Lower Temperature [0]
Chassis Fan 3 Min Duty Cycle (%) [65]
Allow Fan Stop [Disabled]
Chassis Fan 4 Q-Fan Control [Auto Detect]
Chassis Fan 4 Profile [Standard]
Chassis Fan 4 Q-Fan Source [CPU]
Chassis Fan 4 Step Up [Level 0]
Chassis Fan 4 Step Down [Level 0]
Chassis Fan 4 Speed Low Limit [200 RPM]
Water Pump+ Q-Fan Control [Auto Detect]
Water Pump+ Profile [Full Speed]
AIO Pump Q-Fan Control [Auto Detect]
AIO Pump Profile [Full Speed]
Chassis Intrusion Detection Support [Disabled]
CPU Temperature LED Switch [Enabled]
Launch CSM [Disabled]
OS Type [Other OS]
Secure Boot Mode [Custom]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Fast Boot]
Boot Logo Display [Auto]
POST Delay Time [3 sec]
Bootup NumLock State [On]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Force BIOS]
Interrupt 19 Capture [Disabled]
AMI Native NVMe Driver Support [Enabled]
Setup Mode [EZ Mode]
Boot Sector (MBR/GPT) Recovery Policy [Local User Control]
Next Boot Recovery Action [Skip]
BIOS Image Rollback Support [Enabled]
Publish HII Resources [Disabled]
Flexkey [Reset]
Setup Animator [Disabled]
Profile Name []
Save to Profile [1]
DIMM Slot Number [DIMM_A2]
Download & Install ARMOURY CRATE app [Disabled]
  omgad

Junior
Статус: Не в сети
Регистрация: 24.03.2019
odvolk10 писал(а):
omgad буду пытаться выше по частотам или кр1.
Главное, чтоб память и КП не подвели ещё :)
Вложение:

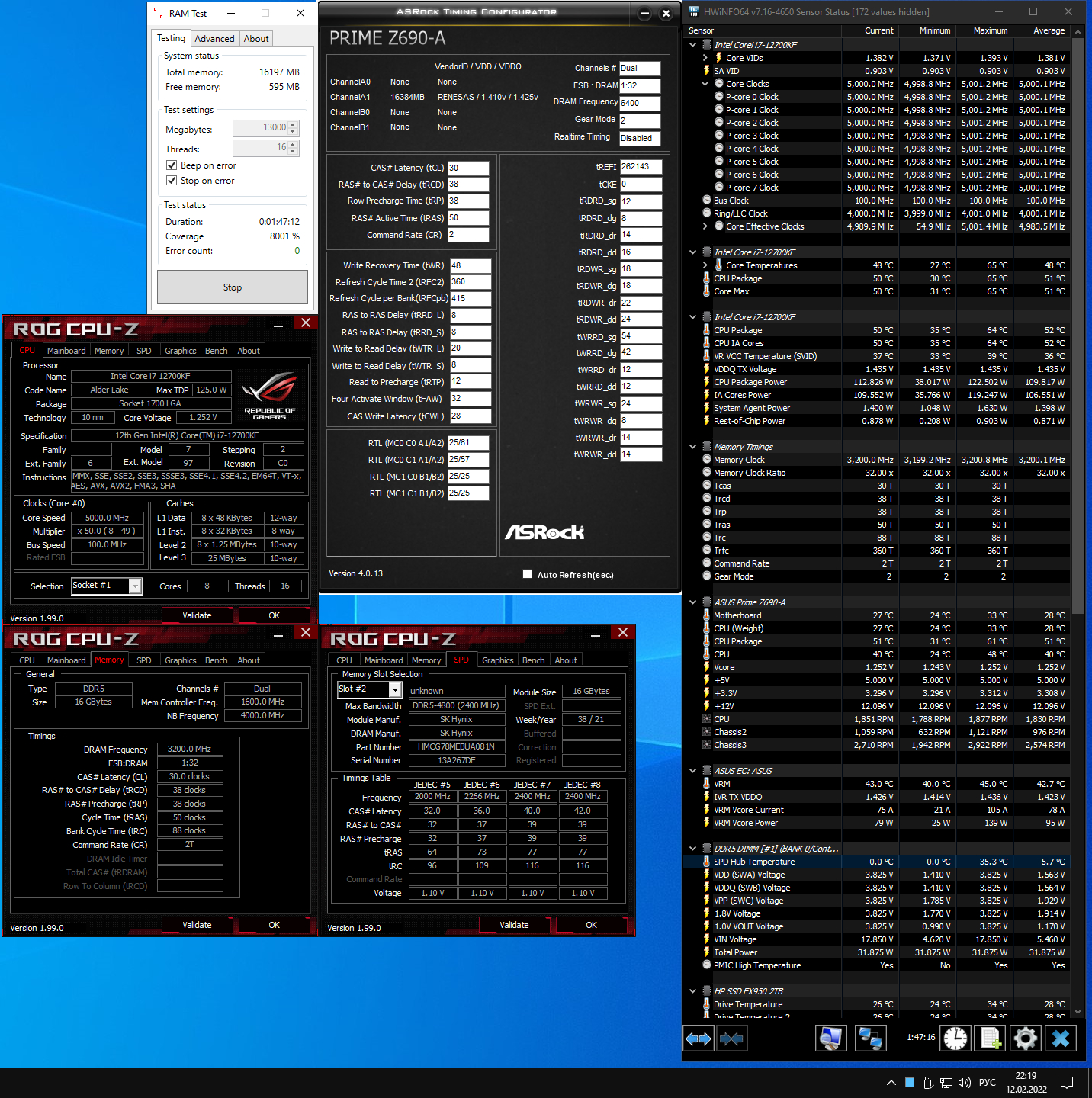

6400CL30 1.435V Karhu.jpg

txt
[2022/02/13 10:07:03]
Ai Overclock Tuner [Manual]
BCLK Frequency [100.0000]
Intel(R) Adaptive Boost Technology [Auto]
ASUS MultiCore Enhancement [Enabled – Remove All limits]
SVID Behavior [Auto]
BCLK Frequency : DRAM Frequency Ratio [Auto]
Memory Controller : DRAM Frequency Ratio [1:2]
DRAM Frequency [DDR5-6400MHz]
Performance Core Ratio [Sync All Cores]
ALL-Core Ratio Limit [50]
Performance Core0 Specific Ratio Limit [Auto]
Performance Core0 specific Adaptive Voltage [Auto]
Performance Core1 Specific Ratio Limit [Auto]
Performance Core1 specific Adaptive Voltage [Auto]
Performance Core2 Specific Ratio Limit [Auto]
Performance Core2 specific Adaptive Voltage [Auto]
Performance Core3 Specific Ratio Limit [Auto]
Performance Core3 specific Adaptive Voltage [Auto]
*Performance Core4 Specific Ratio Limit [Auto]
Performance Core4 specific Adaptive Voltage [Auto]
*Performance Core5 Specific Ratio Limit [Auto]
Performance Core5 specific Adaptive Voltage [Auto]
Performance Core6 Specific Ratio Limit [Auto]
Performance Core6 specific Adaptive Voltage [Auto]
Performance Core7 Specific Ratio Limit [Auto]
Performance Core7 specific Adaptive Voltage [Auto]
Efficient Core Ratio [Sync All Cores]
ALL-Core Ratio Limit [40]
Efficient Core Group0 Specific Ratio Limit [Auto]
Efficient Core Group0 specific Adaptive Voltage [Auto]
CPU SVID Support [Enabled]
AVX2 [Auto]
AVX512 [Auto]
AVX2 Ratio Offset to per-core Ratio Limit [Auto]
AVX512 Ratio Offset to per-core Ratio Limit [Auto]
AVX2 Voltage Guardband Scale Factor [Auto]
AVX512 Voltage Guardband Scale Factor [Auto]
DRAM CAS# Latency [30]
DRAM RAS# to CAS# Delay [38]
DRAM RAS# PRE Time [38]
DRAM RAS# ACT Time [50]
DRAM Command Rate [2N]
DRAM RAS# to RAS# Delay L [8]
DRAM RAS# to RAS# Delay S [8]
DRAM REF Cycle Time [400]
DRAM REF Cycle Time 2 [Auto]
DRAM REF Cycle Time Same Bank [Auto]
DRAM Refresh Interval [262143]
DRAM WRITE Recovery Time [48]
DRAM READ to PRE Time [12]
DRAM FOUR ACT WIN Time [32]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [Auto]
DRAM WRITE to READ Delay S [Auto]
DRAM CKE Minimum Pulse Width [0]
DRAM Write Latency [28]
Ctl0 dqvrefup [Auto]
Ctl0 dqvrefdn [Auto]
Ctl0 dqodtvrefup [Auto]
Ctl0 dqodtvrefdn [Auto]
Ctl1 cmdvrefup [Auto]
Ctl1 ctlvrefup [Auto]
Ctl1 clkvrefup [Auto]
Ctl1 ckecsvrefup [Auto]
Ctl2 cmdvrefdn [Auto]
Ctl2 ctlvrefdn [Auto]
Ctl2 clkvrefdn [Auto]
ODT_READ_DURATION [Auto]
ODT_READ_DELAY [Auto]
ODT_WRITE_DURATION [Auto]
ODT_WRITE_DELAY [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
DQ RTT WR [Auto]
DQ RTT NOM RD [Auto]
DQ RTT NOM WR [Auto]
DQ RTT PARK [Auto]
DQ RTT PARK DQS [Auto]
GroupA CA ODT [Auto]
GroupA CS ODT [Auto]
GroupA CK ODT [Auto]
GroupB CA ODT [Auto]
GroupB CS ODT [Auto]
GroupB CK ODT [Auto]
Pull-up Output Driver Impedance [Auto]
Pull-Down Output Driver Impedance [Auto]
Round Trip Latency Init Value MC0 CHA [Auto]
Round Trip Latency Max Value MC0 CHA [Auto]
Round Trip Latency Offset Value Mode Sign MC0 CHA [-]
Round Trip Latency Offset Value MC0 CHA [Auto]
Round Trip Latency Init Value MC0 CHB [Auto]
Round Trip Latency Max Value MC0 CHB [Auto]
Round Trip Latency Offset Value Mode Sign MC0 CHB [-]
Round Trip Latency Offset Value MC0 CHB [Auto]
Round Trip Latency Init Value MC1 CHA [Auto]
Round Trip Latency Max Value MC1 CHA [Auto]
Round Trip Latency Offset Value Mode Sign MC1 CHA [-]
Round Trip Latency Offset Value MC1 CHA [Auto]
Round Trip Latency Init Value MC1 CHB [Auto]
Round Trip Latency Max Value MC1 CHB [Auto]
Round Trip Latency Offset Value Mode Sign MC1 CHB [-]
Round Trip Latency Offset Value MC1 CHB [Auto]
Round Trip Latency MC0 CHA R0 [Auto]
Round Trip Latency MC0 CHA R1 [Auto]
Round Trip Latency MC0 CHA R2 [Auto]
Round Trip Latency MC0 CHA R3 [Auto]
Round Trip Latency MC0 CHA R4 [Auto]
Round Trip Latency MC0 CHA R5 [Auto]
Round Trip Latency MC0 CHA R6 [Auto]
Round Trip Latency MC0 CHA R7 [Auto]
Round Trip Latency MC0 CHB R0 [Auto]
Round Trip Latency MC0 CHB R1 [Auto]
Round Trip Latency MC0 CHB R2 [Auto]
Round Trip Latency MC0 CHB R3 [Auto]
Round Trip Latency MC0 CHB R4 [Auto]
Round Trip Latency MC0 CHB R5 [Auto]
Round Trip Latency MC0 CHB R6 [Auto]
Round Trip Latency MC0 CHB R7 [Auto]
Round Trip Latency MC1 CHA R0 [Auto]
Round Trip Latency MC1 CHA R1 [Auto]
Round Trip Latency MC1 CHA R2 [Auto]
Round Trip Latency MC1 CHA R3 [Auto]
Round Trip Latency MC1 CHA R4 [Auto]
Round Trip Latency MC1 CHA R5 [Auto]
Round Trip Latency MC1 CHA R6 [Auto]
Round Trip Latency MC1 CHA R7 [Auto]
Round Trip Latency MC1 CHB R0 [Auto]
Round Trip Latency MC1 CHB R1 [Auto]
Round Trip Latency MC1 CHB R2 [Auto]
Round Trip Latency MC1 CHB R3 [Auto]
Round Trip Latency MC1 CHB R4 [Auto]
Round Trip Latency MC1 CHB R5 [Auto]
Round Trip Latency MC1 CHB R6 [Auto]
Round Trip Latency MC1 CHB R7 [Auto]
Early Command Training [Auto]
SenseAmp Offset Training [Auto]
Early ReadMPR Timing Centering 2D [Auto]
Read MPR Training [Auto]
Receive Enable Training [Auto]
Jedec Write Leveling [Auto]
Early Write Time Centering 2D [Auto]
Early Read Time Centering 2D [Auto]
Write Timing Centering 1D [Auto]
Write Voltage Centering 1D [Auto]
Read Timing Centering 1D [Auto]
Read Timing Centering with JR [Auto]
Dimm ODT Training* [Auto]
Max RTT_WR [ODT Off]
DIMM RON Training* [Auto]
Write Drive Strength/Equalization 2D* [Auto]
Write Slew Rate Training* [Auto]
Read ODT Training* [Auto]
Comp Optimization Training [Auto]
Read Equalization Training* [Auto]
Read Amplifier Training* [Auto]
Write Timing Centering 2D [Auto]
Read Timing Centering 2D [Auto]
Command Voltage Centering [Auto]
Early Command Voltage Centering [Auto]
Write Voltage Centering 2D [Auto]
Read Voltage Centering 2D [Auto]
Late Command Training [Auto]
Round Trip Latency [Auto]
Turn Around Timing Training [Auto]
CMD CTL CLK Slew Rate [Auto]
CMD/CTL DS & E 2D [Auto]
Read Voltage Centering 1D [Auto]
TxDqTCO Comp Training* [Auto]
ClkTCO Comp Training* [Auto]
TxDqsTCO Comp Training* [Auto]
VccDLL Bypass Training [Auto]
CMD/CTL Drive Strength Up/Dn 2D [Auto]
DIMM CA ODT Training [Auto]
PanicVttDnLp Training* [Auto]
Read Vref Decap Training* [Auto]
Vddq Training [Auto]
Duty Cycle Correction Training [Auto]
Rank Margin Tool Per Bit [Auto]
DIMM DFE Training [Auto]
Tx Dqs Dcc Training [Auto]
Rank Margin Tool [Auto]
Memory Test [Auto]
DIMM SPD Alias Test [Auto]
Receive Enable Centering 1D [Auto]
Retrain Margin Check [Auto]
Write Drive Strength Up/Dn independently [Auto]
Margin Check Limit [Disabled]
tRDRD_sg_Training [12]
tRDRD_sg_Runtime [12]
tRDRD_dg_Training [8]
tRDRD_dg_Runtime [8]
tRDWR_sg [16]
tRDWR_dg [16]
tWRWR_sg [24]
tWRWR_dg [8]
tWRRD_sg [54]
tWRRD_dg [42]
tRDRD_dr [0]
tRDRD_dd [0]
tRDWR_dr [0]
tRDWR_dd [0]
tWRWR_dr [0]
tWRWR_dd [0]
tWRRD_dr [0]
tWRRD_dd [0]
tRPRE [Auto]
tWPRE [Auto]
tWRPRE [84]
tPRPDEN [Auto]
tRDPDEN [Auto]
tWRPDEN [84]
tCPDED [Auto]
tREFIX9 [255]
Ref Interval [0]
tXPDLL [Auto]
tXP [8]
tPPD [0]
tCCD_L_tDLLK [Auto]
MRC Fast Boot [Enabled]
MCH Full Check [Auto]
Mem Over Clock Fail Count [Auto]
Training Profile [Auto]
RxDfe [Auto]
Mrc Training Loop Count [Auto]
DRAM CLK Period [Auto]
Dll_bwsel [Auto]
Controller 0, Channel 0 Control [Enabled]
Controller 0, Channel 1 Control [Enabled]
Controller 1, Channel 0 Control [Enabled]
Controller 1, Channel 1 Control [Enabled]
MC_Vref0 [Auto]
MC_Vref1 [Auto]
MC_Vref2 [Auto]
Dynamic Memory Boost [Disabled]
Realtime Memory Frequency [Disabled]
SA GV [Disabled]
VRM Initialization Check [Disabled]
CPU Input Voltage Load-line Calibration [Auto]
CPU Load-line Calibration [Level 7]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Disabled]
CPU Power Duty Control [Extreme]
CPU Power Phase Control [Extreme]
CPU Core/Cache Boot Voltage [Auto]
CPU Input Boot Voltage [Auto]
PLL Termination Boot Voltage [Auto]
CPU Standby Boot Voltage [Auto]
Memory Controller Boot Voltage [Auto]
CPU Core Auto Voltage Cap [Auto]
CPU Input Auto Voltage Cap [Auto]
Memory Controller Auto Voltage Cap [Auto]
Maximum CPU Core Temperature [105]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
IVR Transmitter VDDQ ICCMAX [Auto]
Unlimited ICCMAX [Auto]
CPU Core/Cache Current Limit Max. [511.75]
Long Duration Package Power Limit [4095]
Package Power Time Window [448]
Short Duration Package Power Limit [4095]
IA AC Load Line [Auto]
IA DC Load Line [Auto]
IA CEP Enable [Auto]
SA CEP Enable [Auto]
IA SoC Iccmax Reactive Protector [Auto]
Inverse Temperature Dependency Throttle [Auto]
IA VR Voltage Limit [Auto]
TVB Voltage Optimizations [Disabled]
Enhanced TVB [Auto]
Overclocking TVB [Disabled]
Offset Mode Sign 1 [+]
V/F Point 1 Offset [Auto]
Offset Mode Sign 2 [+]
V/F Point 2 Offset [Auto]
Offset Mode Sign 3 [+]
V/F Point 3 Offset [Auto]
Offset Mode Sign 4 [+]
V/F Point 4 Offset [Auto]
Offset Mode Sign 5 [+]
V/F Point 5 Offset [Auto]
Offset Mode Sign 6 [+]
V/F Point 6 Offset [Auto]
Offset Mode Sign 7 [+]
V/F Point 7 Offset [Auto]
Offset Mode Sign 8 [+]
V/F Point 8 Offset [Auto]
Offset Mode Sign 9 [+]
V/F Point 9 Offset [Auto]
Offset Mode Sign 10 [+]
V/F Point 10 Offset [Auto]
Offset Mode Sign 11 [+]
V/F Point 11 Offset [Auto]
Realtime Memory Timing [Disabled]
SPD Write Disable [FALSE]
PVD Ratio Threshold [Auto]
Banding Ratio [Auto]
SA PLL Frequency Override [Auto]
BCLK TSC HW Fixup [Enabled]
Core Ratio Extension Mode [Disabled]
FLL OC mode [Auto]
Core PLL Voltage [Auto]
GT PLL Voltage [Auto]
Ring PLL Voltage [Auto]
System Agent PLL Voltage [Auto]
Memory Controller PLL Voltage [Auto]
CPU 1.8V Small Rail [Auto]
PLL Termination Voltage [Auto]
CPU Standby Voltage [Auto]
PCH 1.05V Voltage [Auto]
PCH 0.82V Voltage [Auto]
CPU Input Voltage Reset Voltage [Auto]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
Cooler Efficiency Customize [Keep Training]
Cooler Re-evaluation Algorithm [Normal]
Optimism Scale [100]
Ring Down Bin [Disabled]
Min. CPU Cache Ratio [42]
Max. CPU Cache Ratio [42]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core/Cache Voltage [Manual Mode]
- CPU Core Voltage Override [1.25000]
CPU L2 Voltage [Auto]
CPU System Agent Voltage [Manual Mode]
- CPU System Agent Voltage Override [0.90000]
CPU Input Voltage [Auto]
High DRAM Voltage Mode [Disabled]
DRAM VDD Voltage [1.43500]
DRAM VDDQ Voltage [1.43500]
IVR Transmitter VDDQ Voltage [Auto]
Memory Controller Voltage [1.30000]
MC Voltage Calculation Voltage Base [Auto]
VDD Calculation Voltage Base [Auto]
PMIC Voltages [Auto]
PCI Express Native Power Management [Enabled]
Native ASPM [Disabled]
DMI Link ASPM Control [Disabled]
ASPM [Auto]
L1 Substates [Disabled]
DMI ASPM [Disabled]
DMI Gen3 ASPM [Disabled]
PEG - ASPM [Disabled]
PCI Express Clock Gating [Enabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel (VMX) Virtualization Technology [Enabled]
Per P-Core Control [Disabled]
Per E-Core Control [Disabled]
Active Performance Cores [All]
Active Efficient Cores [All]
Hyper-Threading [Enabled]
Hyper-Threading of Core 0 [Enabled]
Hyper-Threading of Core 1 [Enabled]
Hyper-Threading of Core 2 [Enabled]
Hyper-Threading of Core 3 [Enabled]
Hyper-Threading of Core 4 [Enabled]
Hyper-Threading of Core 5 [Enabled]
Hyper-Threading of Core 6 [Enabled]
Hyper-Threading of Core 7 [Enabled]
Legacy Game Compatibility Mode [Disabled]
Boot performance mode [Turbo Performance]
Intel(R) SpeedStep(tm) [Enabled]
Intel(R) Speed Shift Technology [Enabled]
Intel(R) Turbo Boost Max Technology 3.0 [Disabled]
Turbo Mode [Enabled]
Acoustic Noise Mitigation [Disabled]
CPU C-states [Disabled]
Thermal Monitor [Enabled]
Dual Tau Boost [Disabled]
VT-d [Disabled]
Memory Remap [Enabled]
Enable VMD controller [Enabled]
Map PCIE Storage under VMD [Disabled]
M.2_1 Link Speed [Auto]
PCIEX16(G5) Link Speed [Auto]
PCIEX1(G3)_2 Link Speed [Auto]
PCIEX1(G3)_1 Link Speed [Auto]
PCIEX16(G3) Link Speed [Auto]
PCIEX4(G3) Link Speed [Auto]
M.2_4 Link Speed [Auto]
M.2_2 Link Speed [Auto]
M.2_3 Link Speed [Auto]
SATA Controller(s) [Disabled]
PTT [Enable]
PCIE Tunneling over USB4 [Enabled]
Discrete Thunderbolt(TM) Support [Disabled]
Security Device Support [Enable]
SHA256 PCR Bank [Enabled]
Pending operation [None]
Platform Hierarchy [Enabled]
Storage Hierarchy [Enabled]
Endorsement Hierarchy [Enabled]
Physical Presence Spec Version [1.3]
TPM 2.0 UEFI Spec Version [TCG_2]
Disable Block Sid [Disabled]
Above 4G Decoding [Disabled]
SR-IOV Support [Disabled]
Legacy USB Support [Enabled]
XHCI Hand-off [Enabled]
SanDisk [Auto]
U32G2_1 [Enabled]
U32G1_E1 [Enabled]
U32G1_E2 [Enabled]
U32G1_E3 [Enabled]
U32G1_E4 [Enabled]
U32G2X2_C3 [Enabled]
U32G2_5 [Enabled]
U32G2_C6 [Enabled]
U32G2_7 [Enabled]
U32G1_8 [Enabled]
U32G1_9 [Enabled]
USB10 [Enabled]
USB11 [Enabled]
USB12 [Enabled]
USB13 [Enabled]
Network Stack [Disabled]
Device [N/A]
Restore AC Power Loss [Power Off]
Max Power Saving [Disabled]
ErP Ready [Disabled]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
PCIe Bandwidth Bifurcation Configuration [Auto]
HD Audio [Enabled]
Intel LAN [Enabled]
USB power delivery in Soft Off state (S5) [Enabled]
When system is in working state [All On]
When system is in sleep, hibernate or soft off states [Stealth Mode]
M.2_4 Configuration [Auto]
U32G2_C6 Type C Power Mode [Auto]
GNA Device [Disabled]
Serial Port [None]
Change Settings [IO=3F8h; IRQ=4]
CPU Temperature [Monitor]
CPU Package Temperature [Monitor]
MotherBoard Temperature [Monitor]
VRM Thermistor Temperature [Monitor]
T_Sensor Temperature [Monitor]
DIMM A1 Temperature [Monitor]
DIMM A2 Temperature [Monitor]
DIMM B1 Temperature [Monitor]
DIMM B2 Temperature [Monitor]
CPU Fan Speed [Monitor]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
Chassis Fan 4 Speed [Monitor]
Water Pump+ Speed [Monitor]
AIO Pump Speed [Monitor]
CPU Core Voltage [Monitor]
12V Voltage [Monitor]
5V Voltage [Monitor]
3.3V Voltage [Monitor]
Memory Controller Voltage [Monitor]
CPU Core Current [Monitor]
AI Cooling [Disabled]
CPU Fan Q-Fan Control [Auto Detect]
CPU Fan Profile [Manual]
CPU Fan Step Up [Level 0]
CPU Fan Step Down [Level 0]
CPU Fan Speed Low Limit [200 RPM]
CPU Fan Upper Temperature [100]
CPU Fan Max. Duty Cycle (%) [65]
CPU Fan Middle Temperature [50]
CPU Fan Middle Duty Cycle (%) [65]
CPU Fan Lower Temperature [0]
CPU Fan Min Duty Cycle (%) [65]
Chassis Fan 1 Q-Fan Control [Auto Detect]
Chassis Fan 1 Profile [Standard]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Step Up [Level 0]
Chassis Fan 1 Step Down [Level 0]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 2 Q-Fan Control [Auto Detect]
Chassis Fan 2 Profile [Standard]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Step Up [Level 0]
Chassis Fan 2 Step Down [Level 0]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 3 Q-Fan Control [DC Mode]
Chassis Fan 3 Profile [Manual]
Chassis Fan 3 Q-Fan Source [CPU]
Chassis Fan 3 Step Up [Level 0]
Chassis Fan 3 Step Down [Level 0]
Chassis Fan 3 Speed Low Limit [200 RPM]
Chassis Fan 3 Upper Temperature [100]
Chassis Fan 3 Max. Duty Cycle (%) [65]
Chassis Fan 3 Middle Temperature [50]
Chassis Fan 3 Middle Duty Cycle (%) [65]
Chassis Fan 3 Lower Temperature [0]
Chassis Fan 3 Min Duty Cycle (%) [65]
Allow Fan Stop [Disabled]
Chassis Fan 4 Q-Fan Control [Auto Detect]
Chassis Fan 4 Profile [Standard]
Chassis Fan 4 Q-Fan Source [CPU]
Chassis Fan 4 Step Up [Level 0]
Chassis Fan 4 Step Down [Level 0]
Chassis Fan 4 Speed Low Limit [200 RPM]
Water Pump+ Q-Fan Control [Auto Detect]
Water Pump+ Profile [Full Speed]
AIO Pump Q-Fan Control [Auto Detect]
AIO Pump Profile [Full Speed]
Chassis Intrusion Detection Support [Disabled]
CPU Temperature LED Switch [Enabled]
Launch CSM [Disabled]
OS Type [Other OS]
Secure Boot Mode [Custom]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Fast Boot]
Boot Logo Display [Auto]
POST Delay Time [3 sec]
Bootup NumLock State [On]
Wait For &#39;F1&#39; If Error [Enabled]
Option ROM Messages [Force BIOS]
Interrupt 19 Capture [Disabled]
AMI Native NVMe Driver Support [Enabled]
Setup Mode [EZ Mode]
Boot Sector (MBR/GPT) Recovery Policy [Local User Control]
Next Boot Recovery Action [Skip]
BIOS Image Rollback Support [Enabled]
Publish HII Resources [Disabled]
Flexkey [Reset]
Setup Animator [Disabled]
Profile Name []
Save to Profile [1]
DIMM Slot Number [DIMM_A2]
Download & Install ARMOURY CRATE app [Disabled]


На текущих частотах хорошо себя ведёт, тесты проходит?

Добавлено спустя 41 минуту 29 секунд:
odvolk10 писал(а):


Попробовал настройки на своих Кингстонах, чёт не взлетело вообще.
Да и смотрю, поменяны параметры и на ядра, да и куча всего. Хотя тоже не взлетело. Может из-за двух планок, может из-за отличия проца (12700k), хз.
Но, в любом случае, жду дальнейшего развития сюжета по разгону на Prime. :beer:
  odvolk10

Member
Статус: Не в сети
Регистрация: 09.11.2019
Откуда: Карелия|СПб
omgad писал(а):
На текущих частотах хорошо себя ведёт, тесты проходит?

А Karhu RAMTest 10 часов не стабильно что ли? :)
omgad писал(а):
Попробовал настройки на своих Кингстонах, чёт не взлетело вообще.

Что за память именно? Какие у тебя результаты?

Добавлено спустя 36 секунд:
anta777 писал(а):
В tm5 для проверки DDR5 нужно в конфиге изменить количество каналов с двух на один.

Это лично для меня, потому что 1*16 или вообще в целом?
  omgad

Junior
Статус: Не в сети
Регистрация: 24.03.2019
odvolk10 писал(а):
Что за память именно? Какие у тебя результаты?


У меня KVR48U40BS8K2-32 на Hynix-ах.
Пока на 6000 cl30-37-37-49 сижу.

Выше не знаю, как брать, пресеты, что видел в ветке не подходят. Либо ошибки при тесте, либо не стартует вообще. :bandhead:
  anta777

Куратор темы
Статус: Не в сети
Регистрация: 10.06.2011
odvolk10

В целом.

_________________
TableDRAM(simple+обычная) bit.ly/3rTIBLv bit.ly/32WnkTU
Tm5(ddr4/5) bit.ly/2Oe8R00 bit.ly/2H9jIZH bit.ly/2MUvl6n bit.ly/3wedj8U bit.ly/3STH2wx

  12ax7

Member
Статус: Не в сети
Регистрация: 11.02.2022

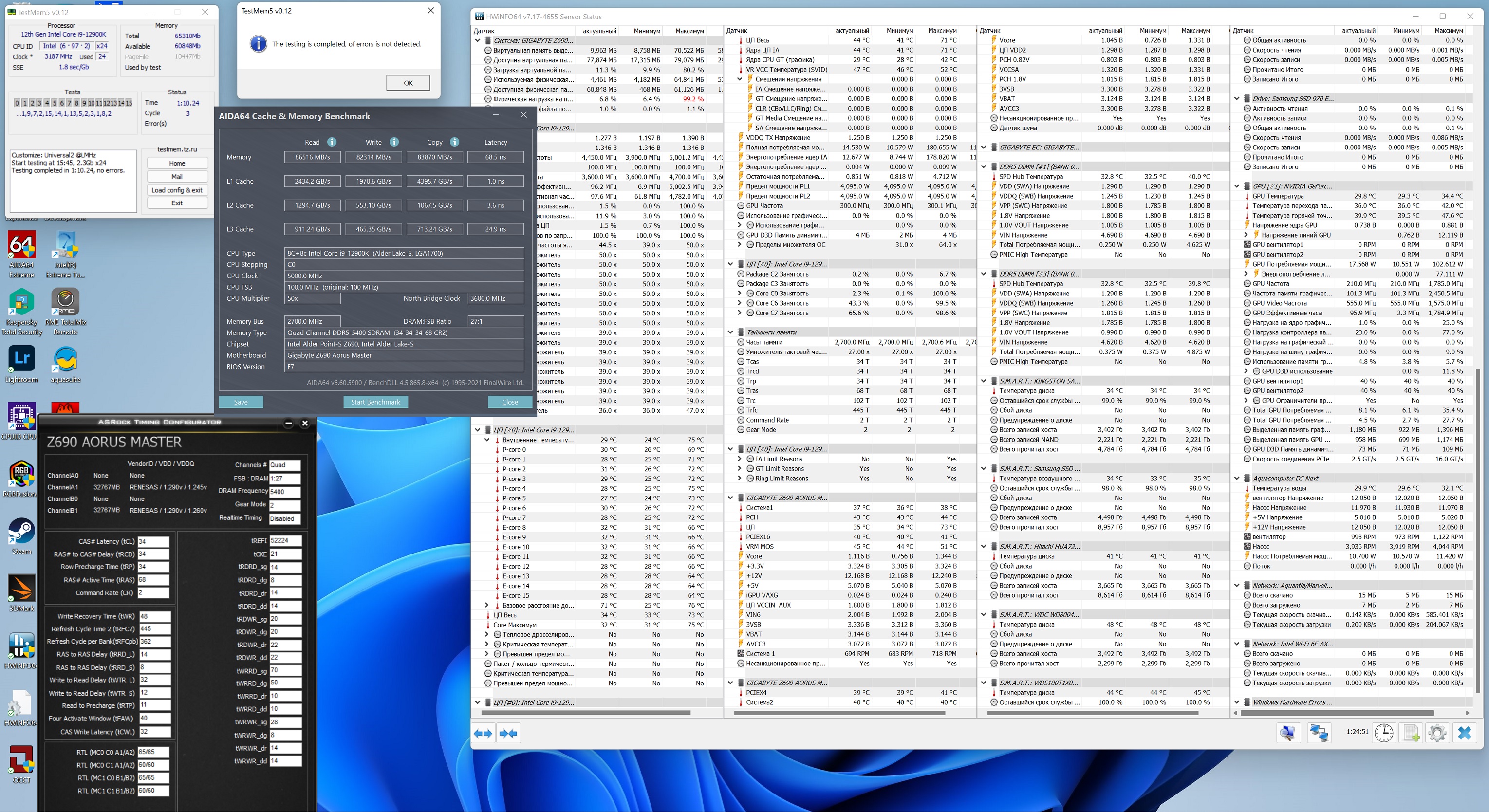

В общем пока только такие результаты на Master Z690 и 2 * 32Gb Hynix. Зато стабильно :D
Запускается даже на 5800 со стоковым напряжением 1.1В, но на этой частоте вообще о какой-то стабильности в принципе говорить не приходится. На 5600 периодические ошибки.
Вложение:
Hynix_65Gb_Z690_Master_5400_cl34_13022022.jpg [ 1.69 МБ | Просмотров: 2602 ]

_________________
13900ks, Z790 Gigabyte Tachyon, 2*32Gb Hynix A-die (OEM), 4090 Aorus Master, Custom Watercooling

  RusXP

Member
Статус: Не в сети
Регистрация: 16.09.2003
Откуда: Казань
Фото: 5
omgad писал(а):
У меня KVR48U40BS8K2-32 на Hynix-ах.
Пока на 6000 cl30-37-37-49 сижу.
Выше не знаю, как брать, пресеты, что видел в ветке не подходят. Либо ошибки при тесте, либо не стартует вообще.

Эта память НЕ равна hynix 4800 планкам. Хайниксы 4800 мне понравились больше, жаль сгорели быстро.
А мой профиль не подходит?

_________________
Ничего у них не получится, мы их дожмем!

  Alzov

Заблокирован
Заблокирован
Статус: Не в сети
Регистрация: 20.06.2010
Фото: 33
12ax7 Хуникс 2х32 комлект, на воздухе на тесты отправили мне.
#77

_________________
14900k 6.2Ghz DDR5 8400 CL36 RTX 5090 WATER COOLING 3300Mhz/34000Mhz.
Наш телеграмм канал https://t.me/game_2hard

  12ax7

Member
Статус: Не в сети
Регистрация: 11.02.2022
Alzov Что тут сказать... круто! Видимо, MB с двумя слотами решает. Вот интересно, а на Asus z690 extreme такого результата можно достичь? Или физику не обманешь, и лишние свободные слоты = более низкие частоты. Больше всего удручает, конечно, что на платах с двумя разъемами не подключено видеоведро.

_________________
13900ks, Z790 Gigabyte Tachyon, 2*32Gb Hynix A-die (OEM), 4090 Aorus Master, Custom Watercooling

  Alexey1977

Member
Статус: Не в сети
Регистрация: 03.06.2003
Откуда: DE
Фото: 2
12ax7 Есть еще Z690 AORUS TACHYON он с двумя слотами и с HDMI портом)
разгон память на нем конечно по лучше, не Apex конечно но все же лучше чем ничего.

_________________
Ultra 285K 5.8P 5.2E / Apex Z890 / 48Gb ADATA 9200@9333CL40 / RTX5080 Gigabyte/ Watercooling

  12ax7

Member
Статус: Не в сети
Регистрация: 11.02.2022
Alexey1977 писал(а):
12ax7 Есть еще Z690 AORUS TACHYON он с двумя слотами и с HDMI портом)
разгон память на нем конечно по лучше, не Apex конечно но все же лучше чем ничего.

Как вариант. Но, что-то после Мастера еще один Gigabyte не очень хочется.

_________________
13900ks, Z790 Gigabyte Tachyon, 2*32Gb Hynix A-die (OEM), 4090 Aorus Master, Custom Watercooling

Показать сообщения за:  Поле сортировки
Начать новую тему Новая тема / Ответить на тему Ответить  Сообщений: 17767 • Страница 41 из 889 • <  1 ... 38  39  40  41  42  43  44 ... 889  >
-

Список форумов » Тематические форумы » Оперативная память

Часовой пояс: UTC + 3 часа


Кто сейчас на конференции

Сейчас этот форум просматривают: PaulERm, romilius, snach13, Флирт и гости: 21

Вы не можете начинать темы
Вы не можете отвечать на сообщения
Вы не можете редактировать свои сообщения
Вы не можете удалять свои сообщения
Вы не можете добавлять вложения

Перейти:
Создано на основе phpBB® Forum Software © phpBB Group
Русская поддержка phpBB | Kolobok smiles © Aiwan
