1. Для разблокировки разгона в файле MSIAfterburner.cfg (Находится в папке, где установлена программа) необходимо прописать следующие значения:
UnofficialOverclockingEULA = I confirm that I am aware of unofficial overclocking limitations and fully understand that MSI will not provide me any support on it
UnofficialOverclockingMode = 1
2. Для разблокировки напряжения и его мониторинга в том же файле прописываем следующие значения:
UnlockVoltageControl = 1
UnlockVoltageMonitoring = 1
(!)В драйвере Catalyst 12.2+ не хватает пары файлов, скачиваем здесь

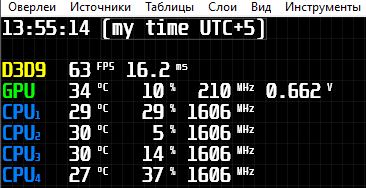

3. Программа так же "умеет" отображать энергопотребление CPU и GPU в играх.
~ Для этого в Настройках (Настройки > Мониторинг) нужно активировать пункты "Энергопотребление" и "Энергопотребление ЦП".
4. После перезагрузки или включения компьютера слетает профиль разгона. Как сделать, чтобы он грузился вместе с Windows?
~ Одно из решений тут - настройка автозапуска
~ Или штатный метод попробовать, описанный здесь
5. Выскакивает ошибка "В данный момент невозможно произвести внедрение в Diretc3D12 компоненты. Строго рекомендуется перезапустить приложение"
Решение описано в этом посте
6. Шпаргалка по оформлению оверлейного дисплея от камрада y0121ck - ОСНОВЫ и ДОПОЛНЕНИЕ

MSI Afterburner 4.6.5 Beta 1
- Fan control tweak documented in this post, which is allowing to bypass recent fixed fan control API changes on Polaris, is now forcibly enabled on such cards with newer drivers.
- Added a few more new AMD/NVIDIA PCI DeviceIDs to hardware database
- RTSS has been upgraded to the latest version (7.3.4 beta 3)
- We switched update server to new URL in update checking system. Old update server location is reaching EOL in near future.

RTSS 7.3.4 Beta 3
- Improved hooking engine
- Added WinUI3 runtime libraries to injection ignore trriggers list
- Now injection ignore triggers list can specify modules, dynamically loaded by hooked application during runtime.This feature can be used to exclude applicaitons using delayed load of WPF/WinUI3 runtimes (e.g. Microsoft Power Toys)
- Improved hypertext format
- Added new <FC> hypertext tag support. The tag is intended for displaying total frame counter during benchmarking session
- Added new <M> hypertext tag support. The tag is intended for specifying independent margins for left, top, right and bottom edges of the layer and supports both positive (inner) and negative (outer) margins adjustable in zoomed pixel units. Margins affect layer background fill area and layer content placement, you can use the margins to acheive layer border or shadow effects
- Increased size of internal shared text buffer used to render performance profiler's and scanline sync info panels. Previously displaying both performance profiler's and scanline sync info panels simultaneously could cause buffer overflow on the systems with too long monitor name
- Improved OverlayEditor.dll plugin
- Added alternate MPERF and OC Mailbox based bus clock detections for Intel Skylake and newer CPUs, aimed to add support for overclocked BCLK monitoring
- Added new low-level RTCoreMini driver to distributive. RTCoreMini is IOCTL compatible stripped down version of MSI Afterburner's full RTCore driver, which lacks MMIO access functionality used for low-level GPU access on legacy graphics cards. Now internal HAL provides CPU monitoring funtionality as is, out of box. Note: We'll also migrate to RTCoreMini in MSI Afterurner in future after deprecating some legacy graphics cards (Fiji and older GPUs)
- Added layer margins adjustment to layer setting dialog. Now you can specify independent margins for left, top, right and bottom edges of the layer and use both positive (inner) and negative (outer) margins adjustable in zoomed pixel units. Margins affect layer background fill area and layer content placement, you can use the margins to acheive layer border or shadow effects
- Added new xmin, xavg and xmax variables support to data source's correction formulas. Now you may specify these variables to display minimum, average or maximum value for a data source if necessary. Please take a note that now you may also associate a hotkey in HotkeyHandler.dll plugin for resetting collected minimum/average/maximum statitics
- Improved HotkeyHandler.dll plugin
- Added new XOR modifier type to profile modifier hotkeys. You can use XOR modifier to toggle boolean profile properties
- Altered shared images / videos folders location requesting way to minimize controlled folders access warnings
- Added new "Reset statistics" preset to overlay editor's hotkey. You may define such hotkey if you use new xmax/xavg/xmin variables in correction formulas to display statistics for any data sources and want to reset
collected min/avg/max
- Added profile caching system aimed to improve RivaTuner Statistics Server start time
- Added process modules list dumping to debug system
- OpenGL pixel unpack alignment state is now restored properly by OpenGL overlay renderer to improve compatibility with old builds of Ryujinx
- Now you may press <F5> in RivaTunerStatistics Server's window to reread currently selected profile, if you modify it manually with some external text editor
- Updated profiles list

- One more new variable is available in OverlayEditor’s correction formulas in addition to xmin/xavg/xmax documented above. You may also specify xswa to use value smoothed with 8-sample sliding window average. Such smoothing formula can be used if you plan to attach animation to rapidly changing data source and make animated sprites transition more smooth
- Now you may hold <Ctrl> when clicking <Add> In OverlayEditor’s data sources window to create a copy of selected data sources or additionally hold <Shift> to increment instance index for copied data source if it is available. This feature can be useful to populate multiple similar data sources, e.g. PerfCounter based CPU usages for each logical processor instance

- CPU usage data sources in internal HAL were temporarily swithced to alternate NtQuerySystemInformation(SystemProcessorIdleInformation) source to bypass currently broken idle time reporting in NtQuerySystemInformation(SystemProcessorPerformanceInformation) in current 22H2 builds. Legacy CPU usage calculation implementation can be selected by power users via CpuUsageCalc config entry if necessary (for testing future (hopefully) fix in NtQuerySystemInformation(SystemProcessorPerformanceInformation) from Microsoft side). Also the same entry can be used to switch CPU usage to \Processor Information\% Processor Utility perofromance counter to exactly match task manager's readings (which is not recommended, because it is base clock frequency scaled there).
- Added new Export and Import commands to Layouts menu and OVX overlay layout exchange file format support. More details about it are available in the previous post.
- I've noticed that I erroneously included third party RTSS skin into distributive while performing compatibility skins testing here. It was not intended to be inside, it is now removed.
