1. Для разблокировки разгона в файле MSIAfterburner.cfg (Находится в папке, где установлена программа) необходимо прописать следующие значения:
UnofficialOverclockingEULA = I confirm that I am aware of unofficial overclocking limitations and fully understand that MSI will not provide me any support on it
UnofficialOverclockingMode = 1
2. Для разблокировки напряжения и его мониторинга в том же файле прописываем следующие значения:
UnlockVoltageControl = 1
UnlockVoltageMonitoring = 1
(!)В драйвере Catalyst 12.2+ не хватает пары файлов, скачиваем здесь
3. Программа так же "умеет" отображать энергопотребление CPU и GPU в играх.
~ Для этого в Настройках (Настройки > Мониторинг) нужно активировать пункты "Энергопотребление" и "Энергопотребление ЦП".
4. После перезагрузки или включения компьютера слетает профиль разгона. Как сделать, чтобы он грузился вместе с Windows?
~ Одно из решений тут - настройка автозапуска
~ Или штатный метод попробовать, описанный здесь
5. Выскакивает ошибка "В данный момент невозможно произвести внедрение в Diretc3D12 компоненты. Строго рекомендуется перезапустить приложение"
Решение описано в этом посте
6. Шпаргалка по оформлению оверлейного дисплея от камрада y0121ck - ОСНОВЫ и ДОПОЛНЕНИЕ

- Added MSI RTX 5090 Lightning cards support
- Improved Voltage/Frequency curve editor:
- Default size of V/F nodes is now adjustable via configuration file, so you can make nodes bigger if default node size is too small and uncomfortable for your eyes
- Now you may zoom work area of V/F curve editor window with mouse wheel in 100%-500% range. Size of V/F nodes is also zoomed in this mode
- Now you may pan work area of V/F curve editor window by pressing right mouse button and dragging work area with mouse cursor
- Now you may restore default view mode and reset zoom and pan position of V/F curve editor with <V> keyboard shortcut
- Improved functionality of linear voltage curve interpolation mode with fixed anchor point (<Ctrl> + node dragging). Now this mode can be applied to selection, the farthest node inside selected range is used as anchor point in this mode
- Added arbitrary linear interpolation mode. Now you may select a source node and press <I> key to activate arbitrary interpolation mode, source node will start flashing to indicate started interpolation process. After selecting the source node simple click destination node to finalize the process, it will result in generating linearly interpolated frequency offsets between source and destination nodes
- Improved functionality of V/F curve movement with preserved per-point offsets (<Alt> + node dragging). Now this mode can be applied to selection
- Added command line switch for loading predefined emergency profile with lowered GPU power consumption (75% power limit on NVIDIA GPUs, -25% on AMD GPUs). New command line switch can be selected inside the predefined applications list when you manually configure a command line based action for alarm in hardware monitoring module
- Added command line switch for displaying custom text message when applying a profile
- Improved monitoring plugins:
- Now the plugins can specify string names for enum values for a data source, e.g. “No,Yes” or “Safe,Alarm” for binary 0/1 values. Such string names are being used to interpret enum values displayed in On-Screen Display
- Now the plugins can customize the appearance of critical threshold related options for some specific hardware monitoring data sources and replace “Alarm when value is out of range” options inside “Monitoring” tab with a single custom checkbox. Plugins can use such functionality to provide simplified one click way to enable pre-configured critical thresholds and alarm settings for some specific data sources

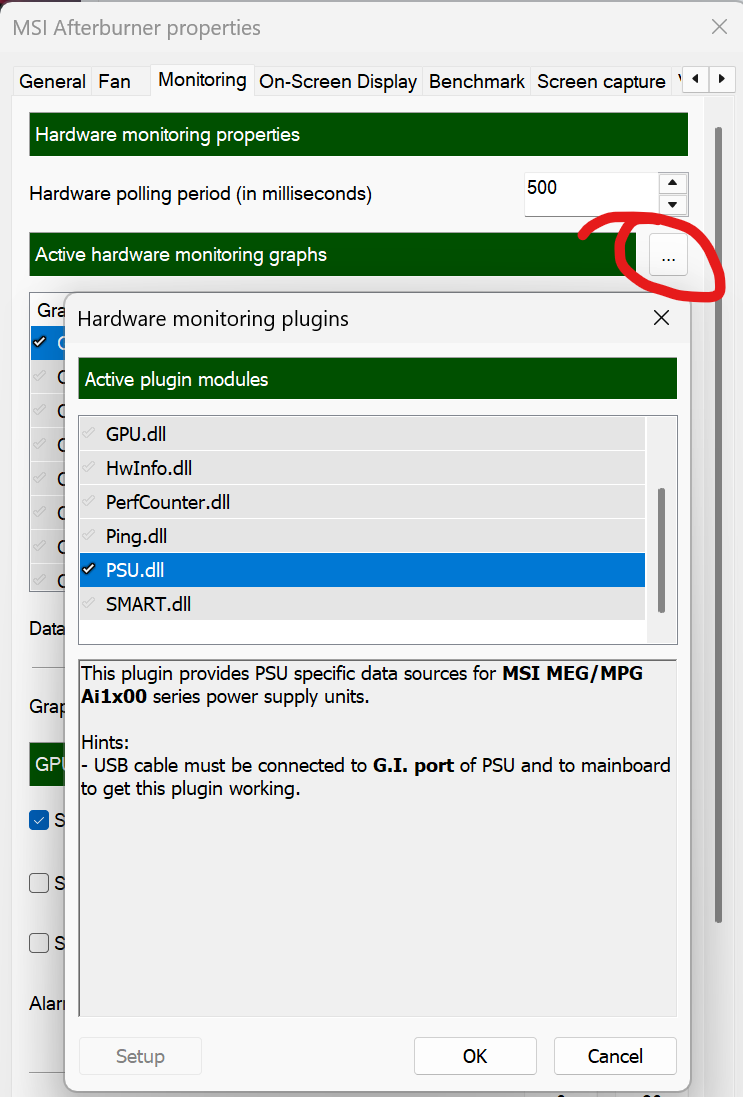

- Added new PSU.dll plugin:
- New plugin provides native hardware monitoring support for MSI MEG Ai1x00 and new MSI MPG Ai1x00TS power supplies

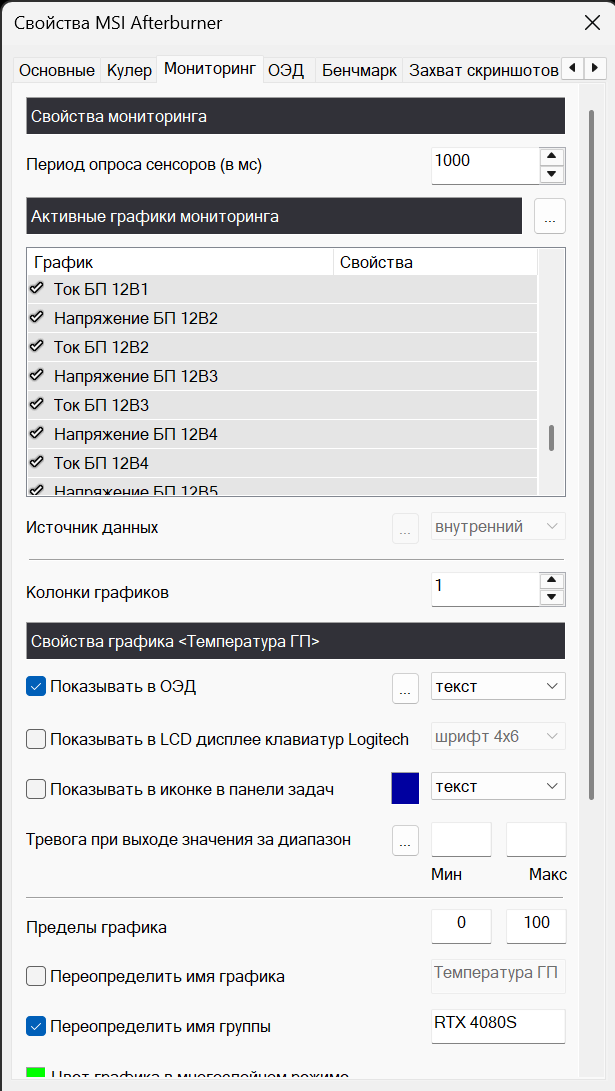

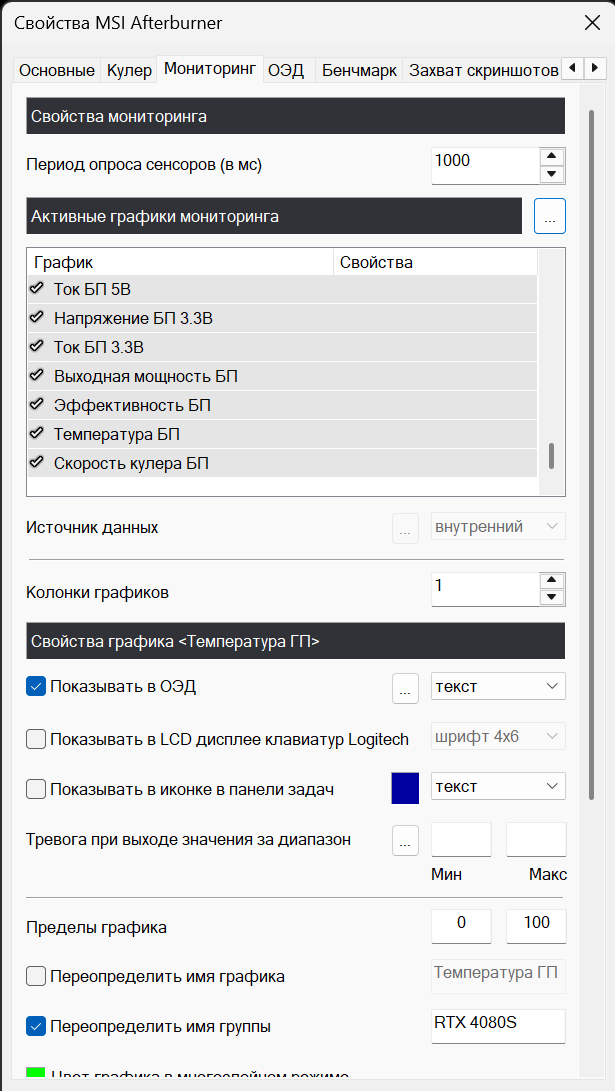

- New plugin provides traditional PSU 12V/5V/3.3V voltages, currents, output power, efficiency, temperature and fan speed monitoring functionality on MSI MEG Ai1x00 series power supplies and additional per-pin current monitoring for 12VHPWR/12V-2x6 connectors on new MSI MPG Ai1x00TS power supplies
- On new MSI MPG Ai1x00TS power supplies with per-pin 12VHPWR/12V-2x6 current monitoring support the plugin also provides two additional alarm sensors, which are reporting 0 when each connector pin’s current is in safe range and 1 when at least one pin’s current reach critical threshold or difference between any two pins is higher than critical delta. With such additional alarm sensors, you do not need to monitor each 12VHPWR/12V-2x6 pin’s current independently and can easily detect overcurrent or current imbalance state by monitoring just a single alarm sensor. The plugin provides both PSU firmware-based and software-based alarm sensor implementations. For software-based alarm sensor implementation power users may redefine the maximum current threshold and the maximum current difference values via editing the plugin’s configuration file
- 12VHPWR/12V-2x6 alarm sensors can be used in conjunction with MSI Afterburner’s programmable critical thresholds supported by hardware monitoring module. When you set critical threshold for such sensor, you may see alarms from 12VHPWR/12V-2x6 overcurrent or current imbalance in monitoring window, in On-Screen Display, enable sound alarm, load some specific emergency MSI Afterburner profile (e.g. a profile with drastically lowered power limit), perform emergency system shutdown and so on
- 12VHPWR/12V-2x6 alarm sensors use new functionality of monitoring plugins to simplify the process of configuring critical thresholds and alarm settings associated with alarm sensors. New “Enable GPU Safeguard+” option is displayed for the alarm sensors instead of “Alarm when value is out of range”, so beginners can easily enable pre-configured protective features with a single click. The following features are being automatically enabled when you tick GPU Safeguard+ checkbox:
- “Play sound on alarm” option is being enabled
- “Launch application on alarm” is being enabled and MSI Afterburner is configured to launch itself to load emergency profile with reduced GPU power limit and display notification message to inform user about potential 12VHPWR/12V-2x6 connection fault
- Experienced users can configure the alarm manually and customize it further, e.g. disable alarm sound, apply a different custom-made emergency profile with even lower GPU power limit and additional GPU downclocking and so on
